Description:
Origin: Mainland ChinaThis module use GaN chip that have low current and more stable current.It has different frequency for 800M900M 1.2G 2.4G,and frequency can be customize.This module is dedicated to anti the drone FPV wifi bluetooth

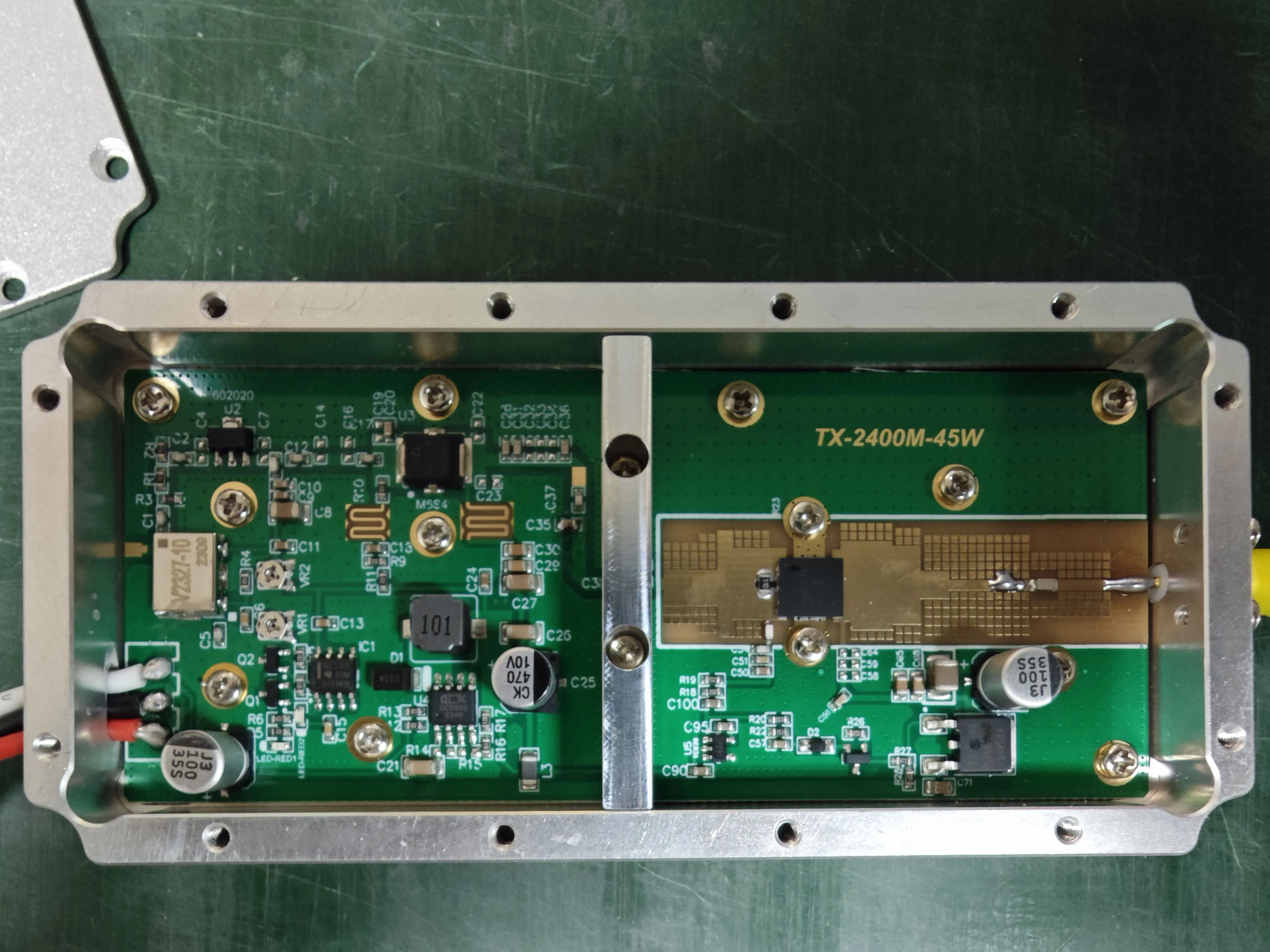

for protect your security and privacy.It use new design that open the shell you can find our company logo on PCBA
PRODUCT SPECIFICATION
45W | |||
NO. | Item | Data | Supplementary |
1 | Frequency | customized | GHz |
2 | Work Temperature | -10~+75 | ℃ |
3 | Output Power | 45 | W |
4 | Volts | 24/28 | V |
5 | Work Gain | 46.5 | db |
6 | Weight | 0.25 | kg |
7 | Size | 134*59*20 | mm |
8 | Output Connector | Sma | |
9 | Chip | GaN |
Physical Structure

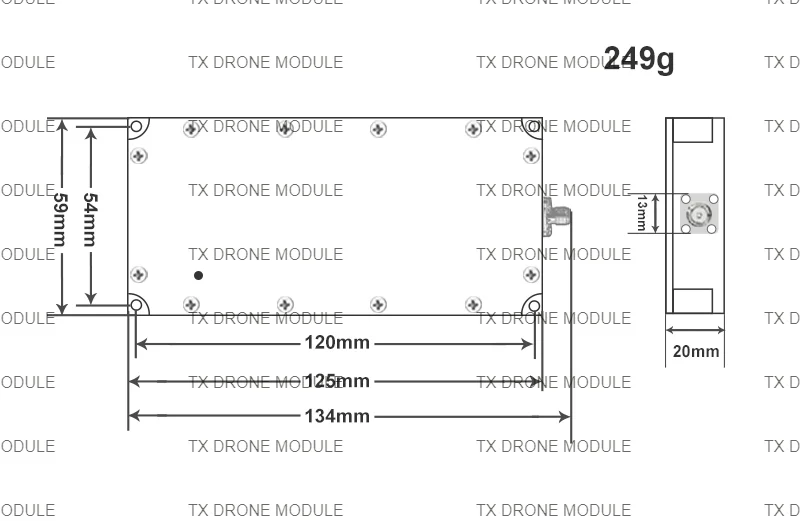

• Shell size: 134*59*20mm

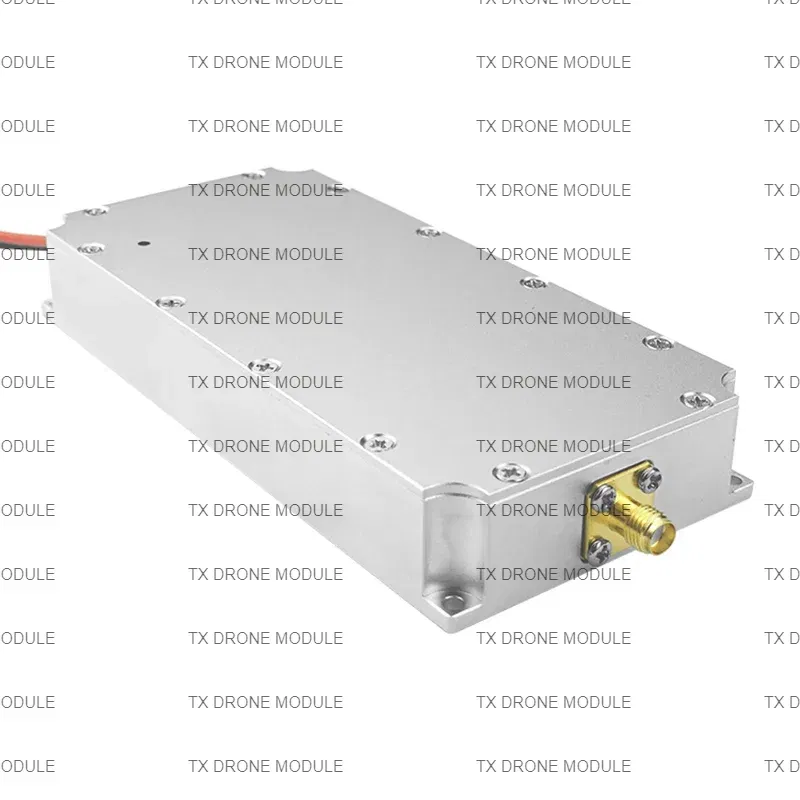

• RF output connector:sma
• Power supply port: red white and black wire

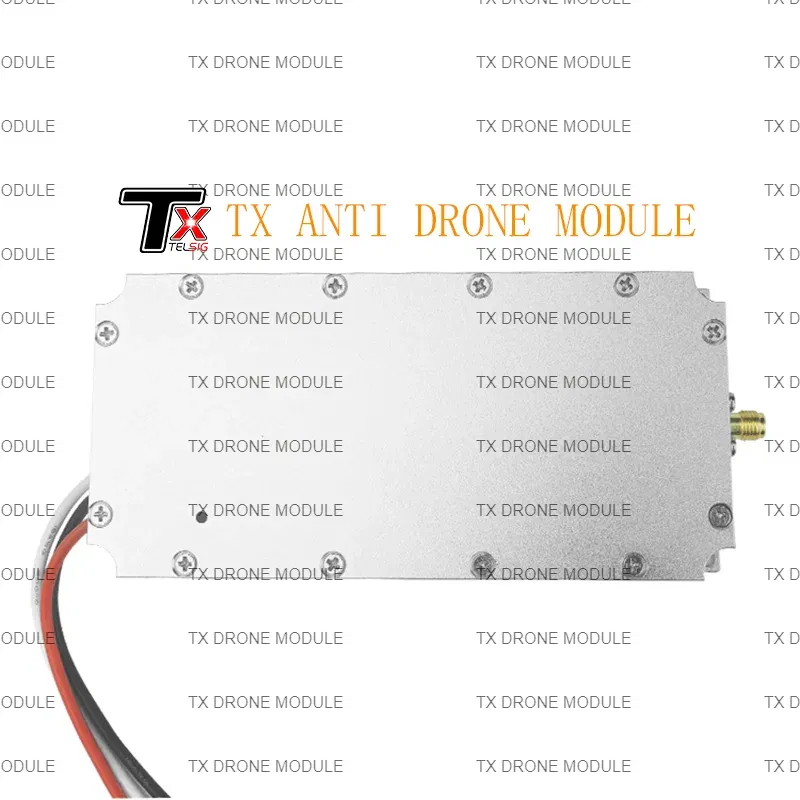

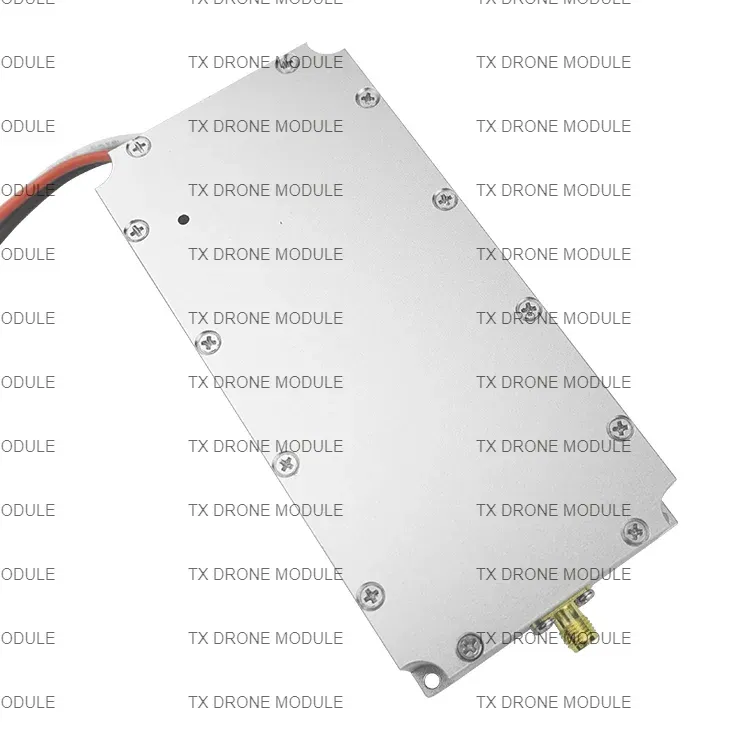

• Shell: aluminum material
Precautions for use
• Power supply :24V-28V
• When the output power is> 5W, it is necessary to strengthen the heat dissipation treatment such as the thermal glue, heat sink and the
cool fan
• Antenna or Load must be firstly connected before the power supply
• The white wire is switch line, you need to connect white wire and the red wire to the positive pole ,black wire connect negative pole.

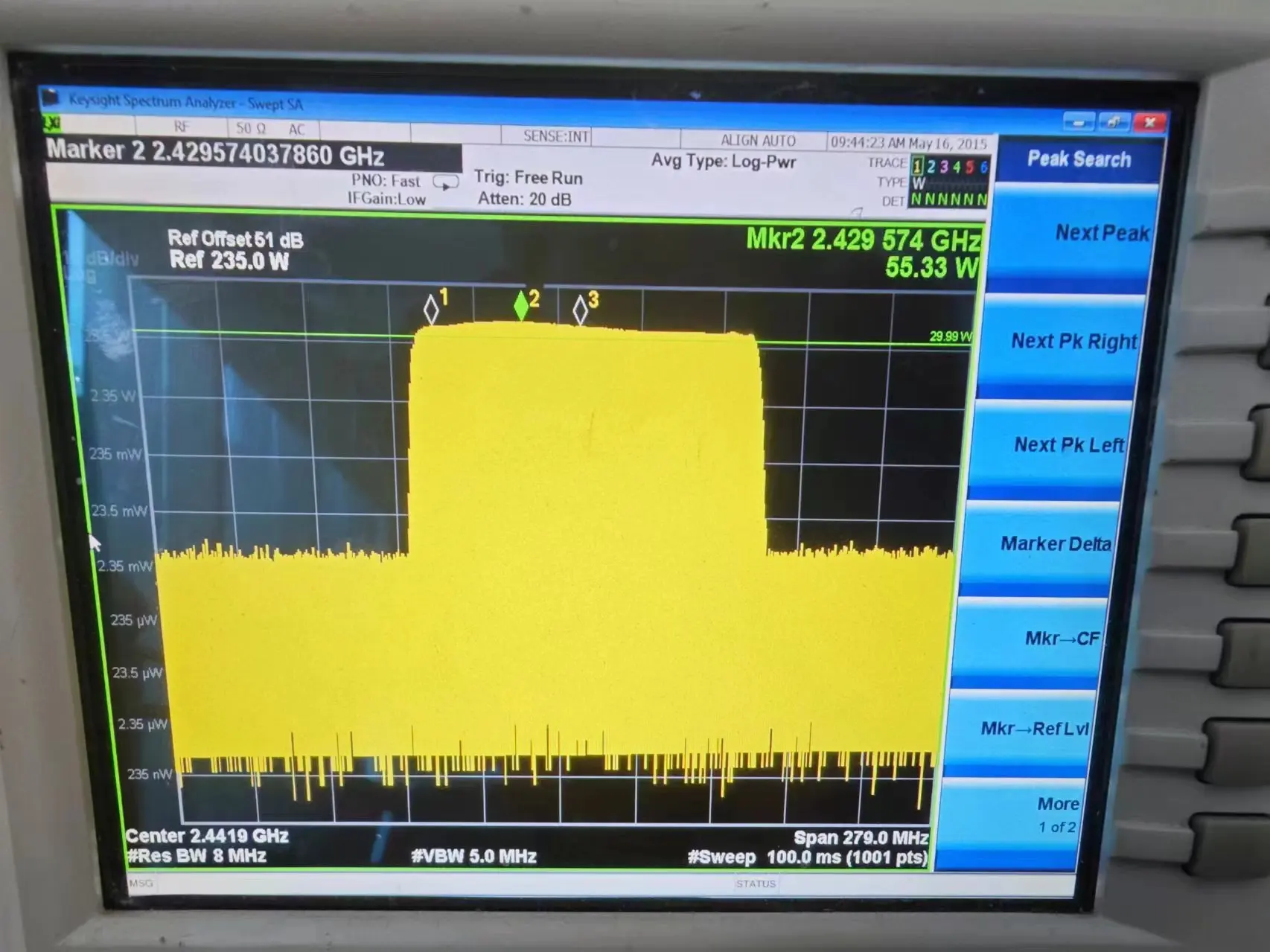

test picture
800M:
900M:
2.4G:
