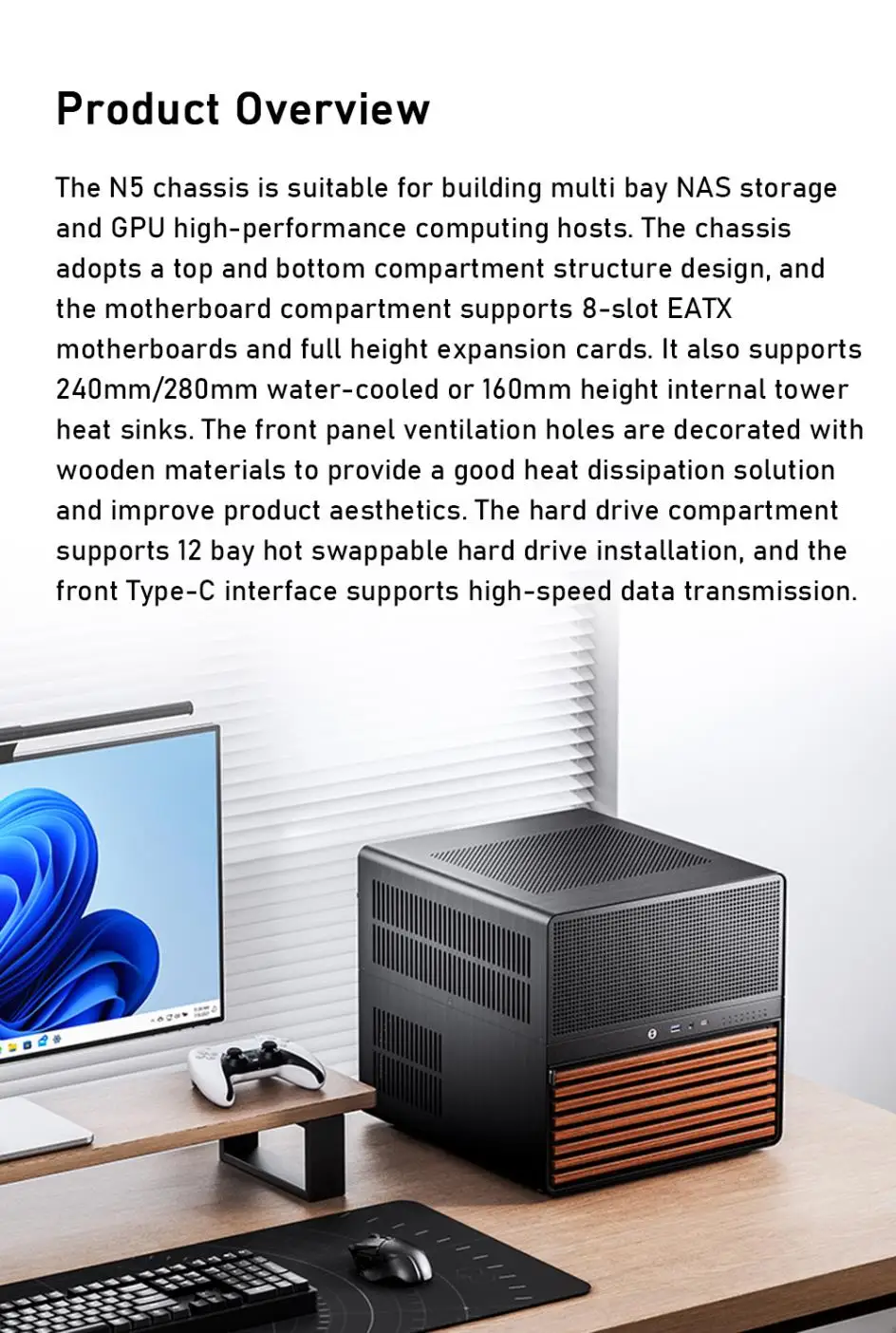

Product specifications

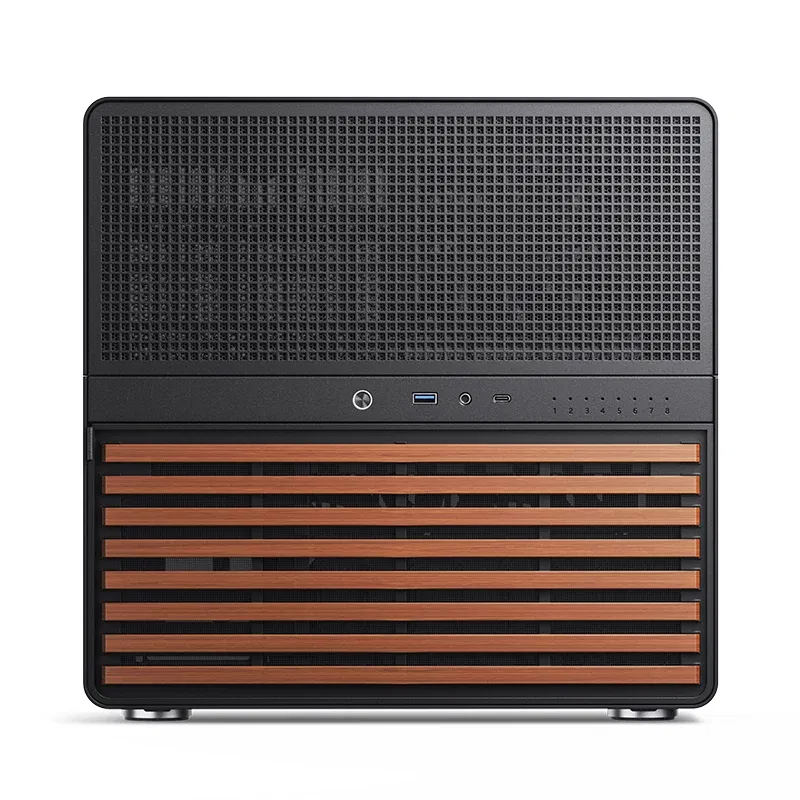

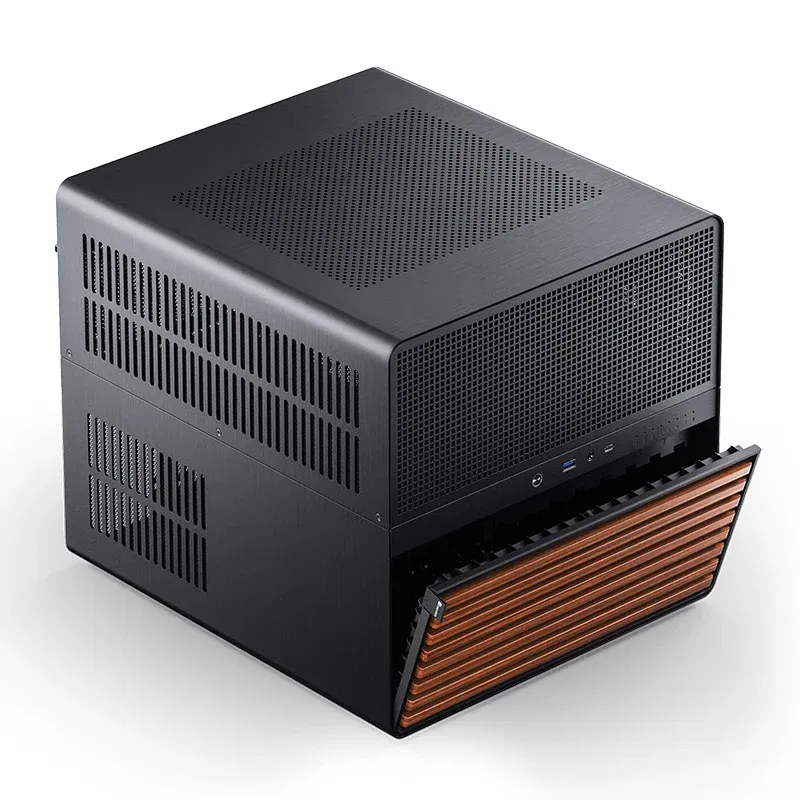

Product model: N5

Color: Black

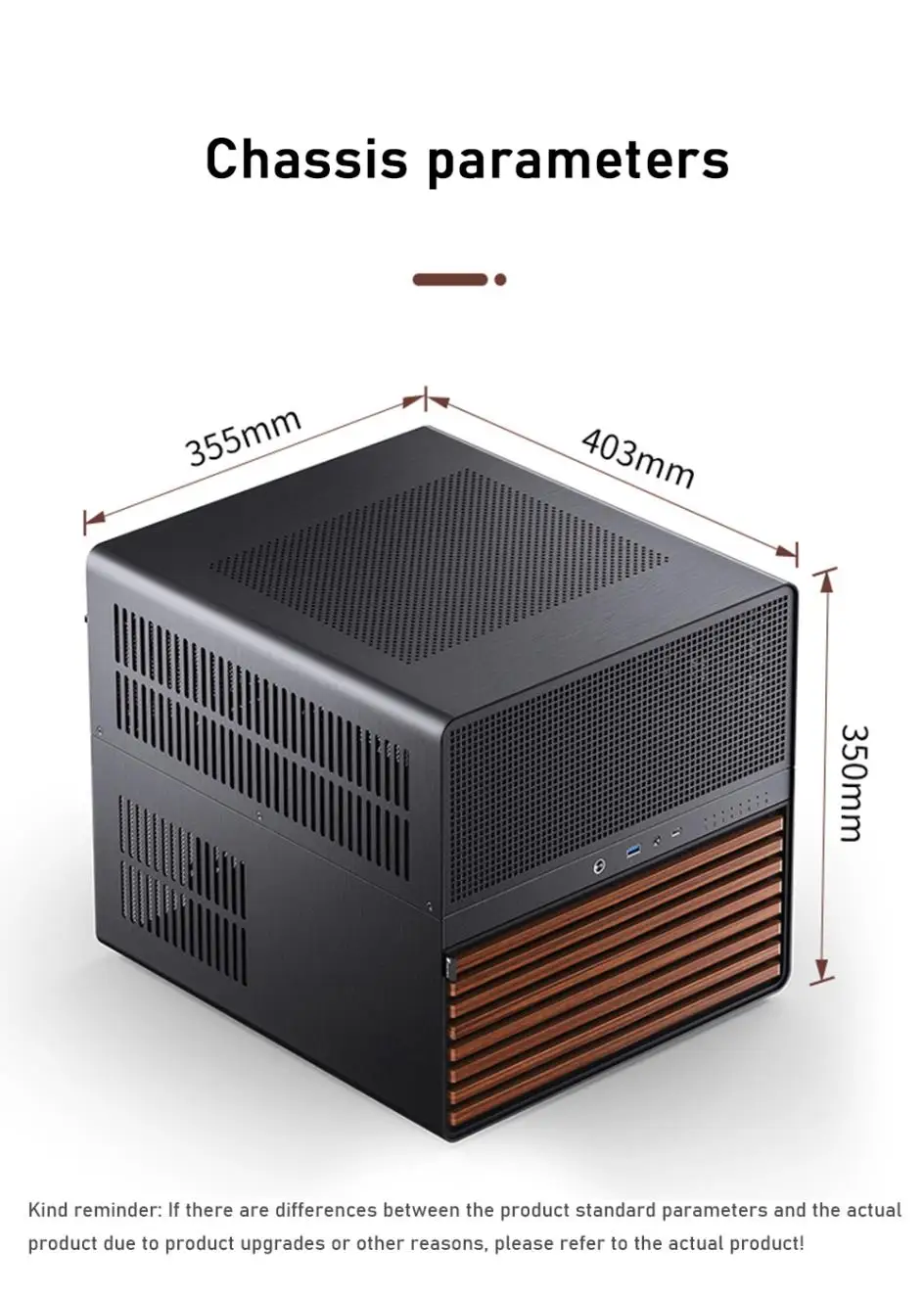

Product size: 355mm (W) * 403mm (D) * 350mm (H)

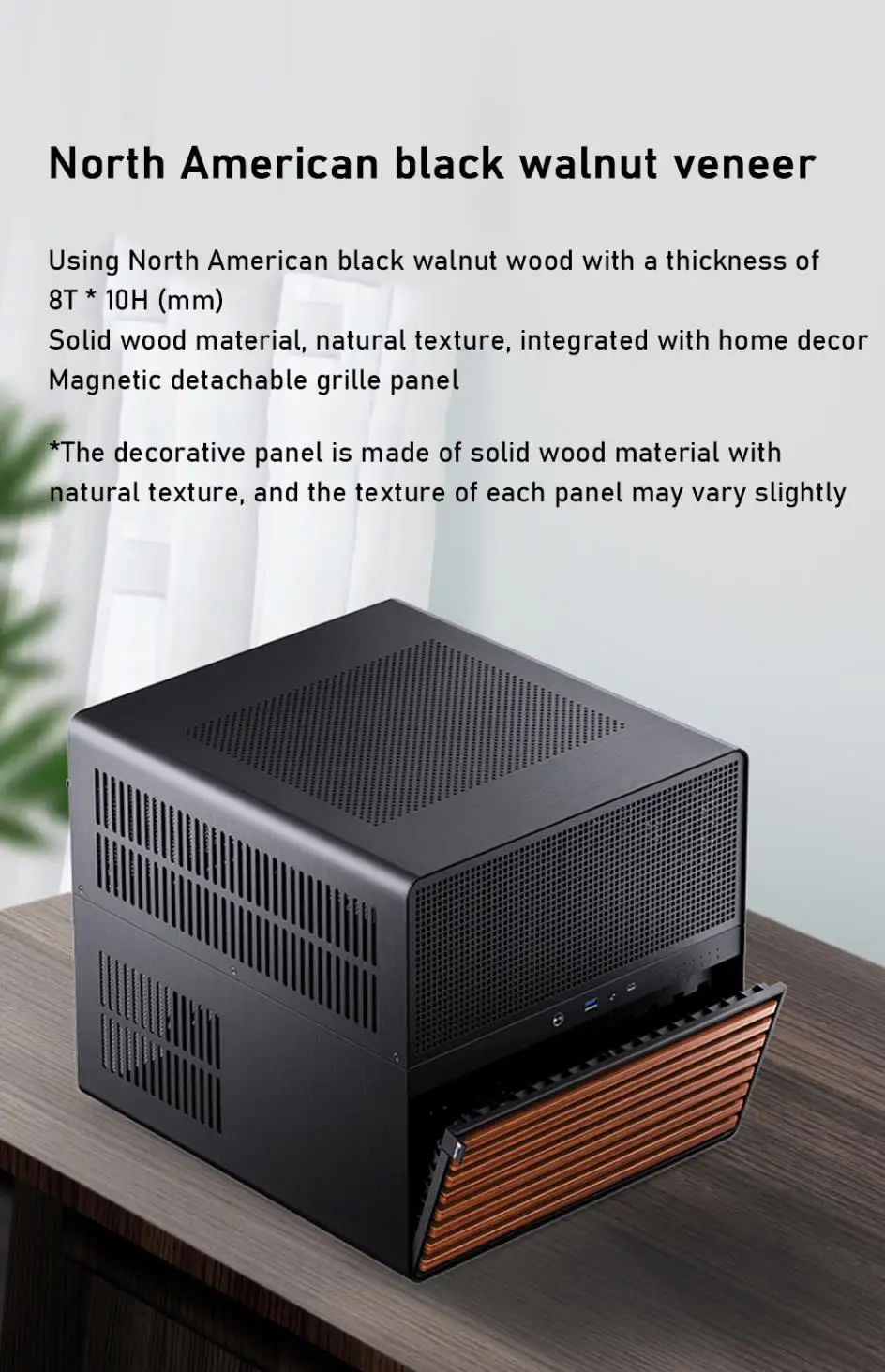

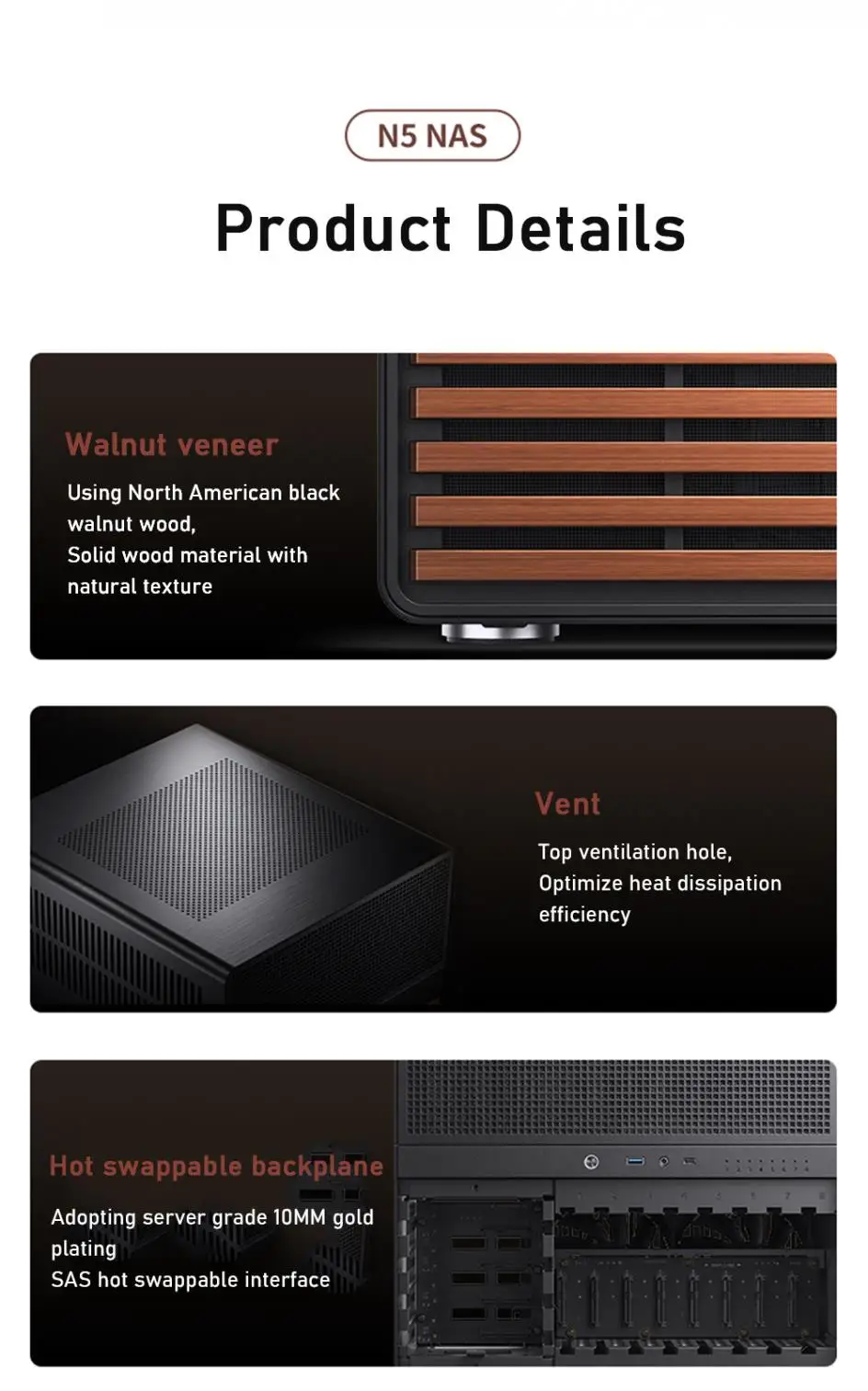

Material: 1mm steel plate, 2mm aluminum plate, 8mm North American walnut wood

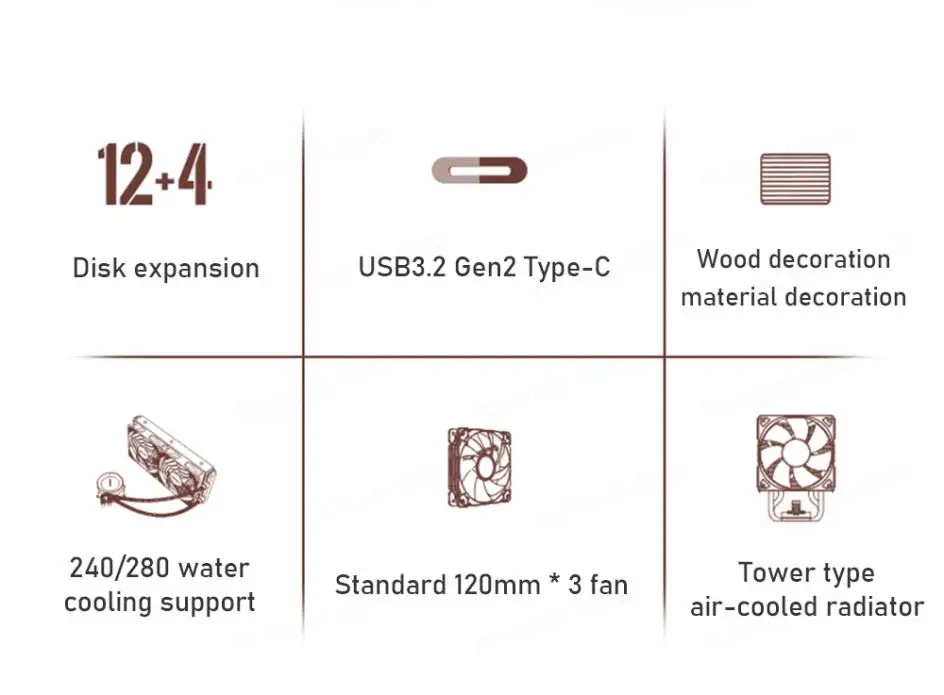

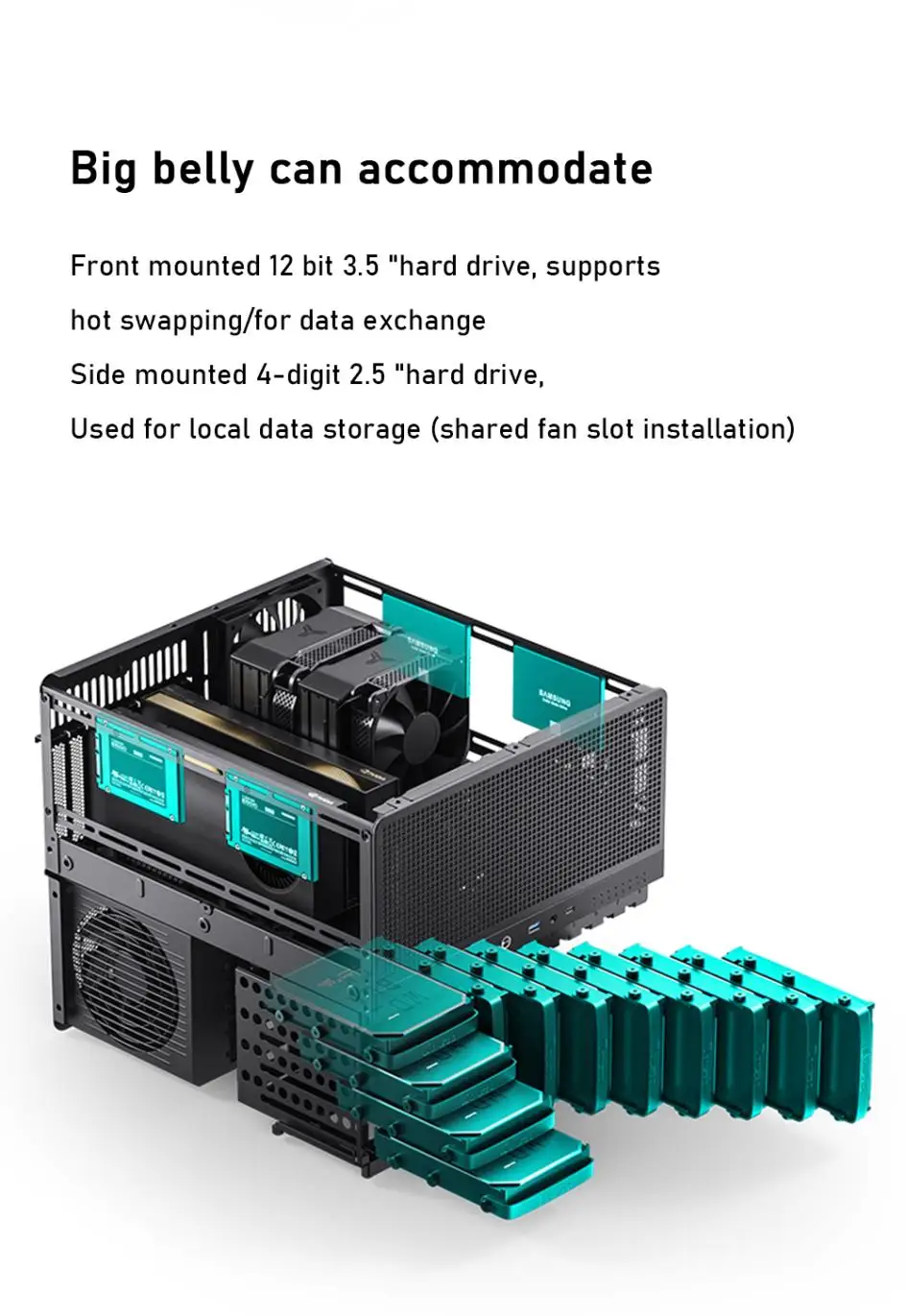

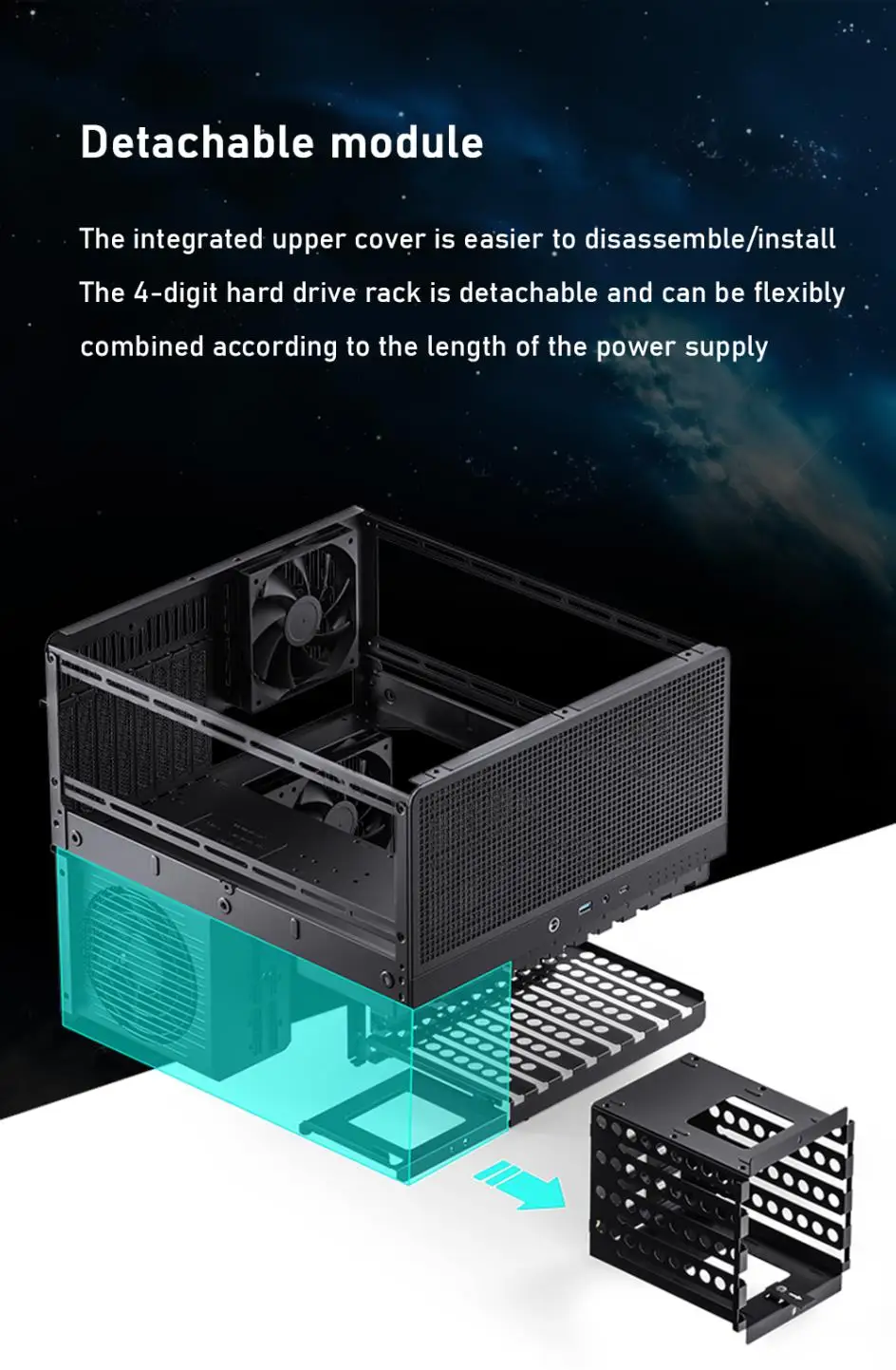

Hard disk space: 2.5 "SSD * 2 or 2.5" SSD * 4/3.5 "HDD * 12

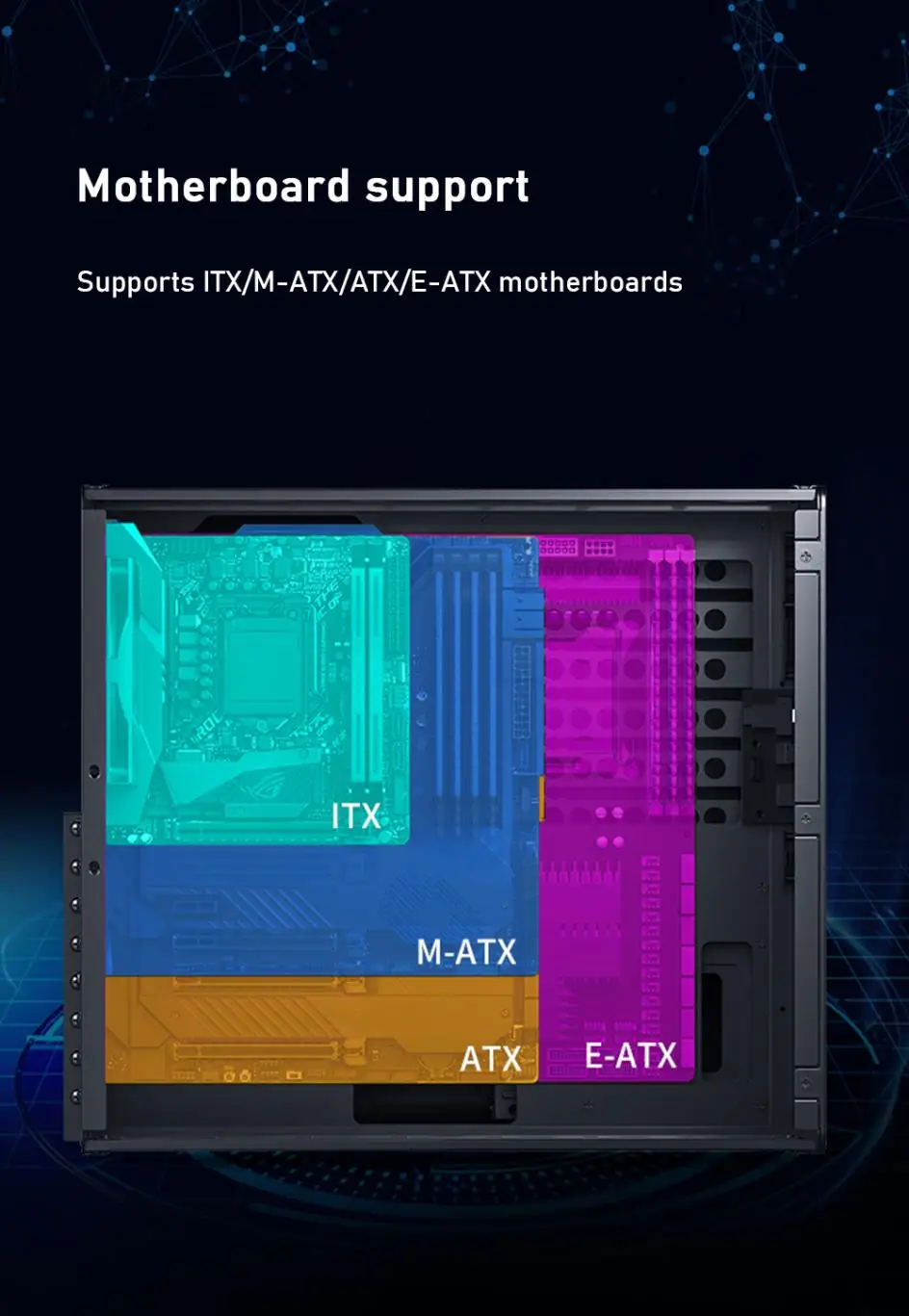

Motherboard support: ITX/M-ATX/ATX/E-ATX

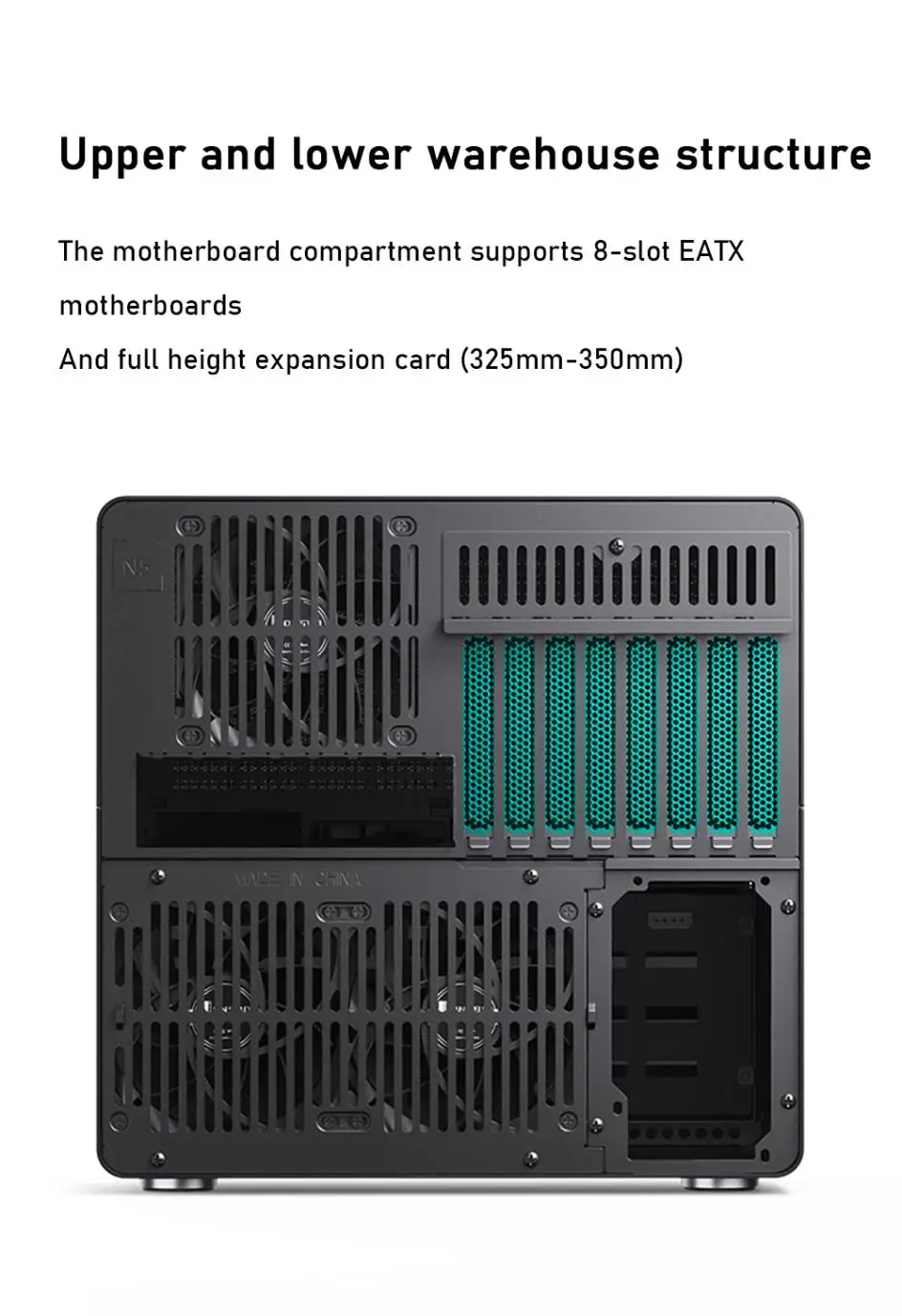

PCI expansion slots: 8

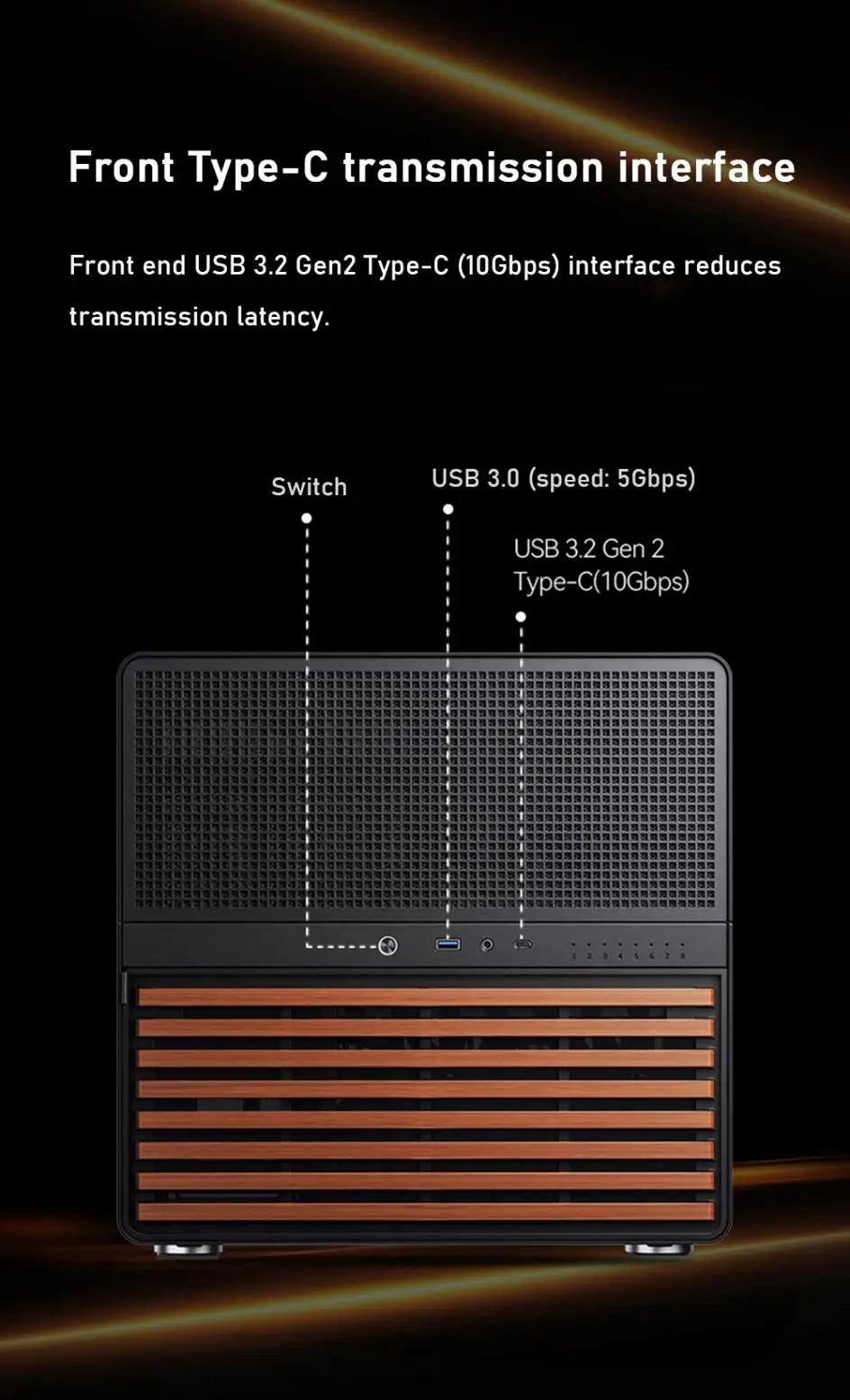

Front interface: USB 3.2 Gen2 Type-C * 1/USB 3.0 * 1 (AUDIO * 1+MIC * 1 2-in-1)

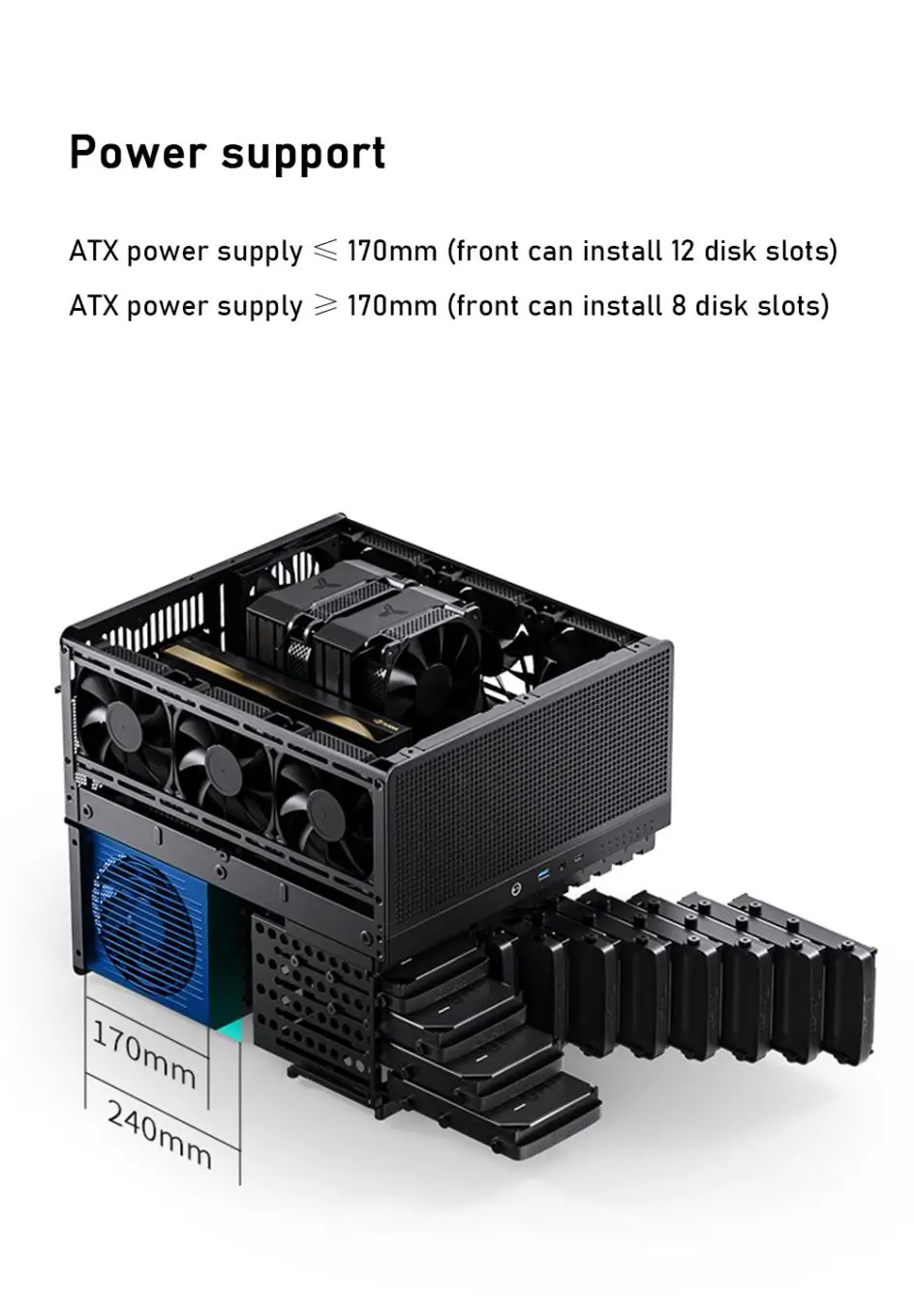

Power supply: ATX 170mm-240mm

CPU heatsink: 160mm

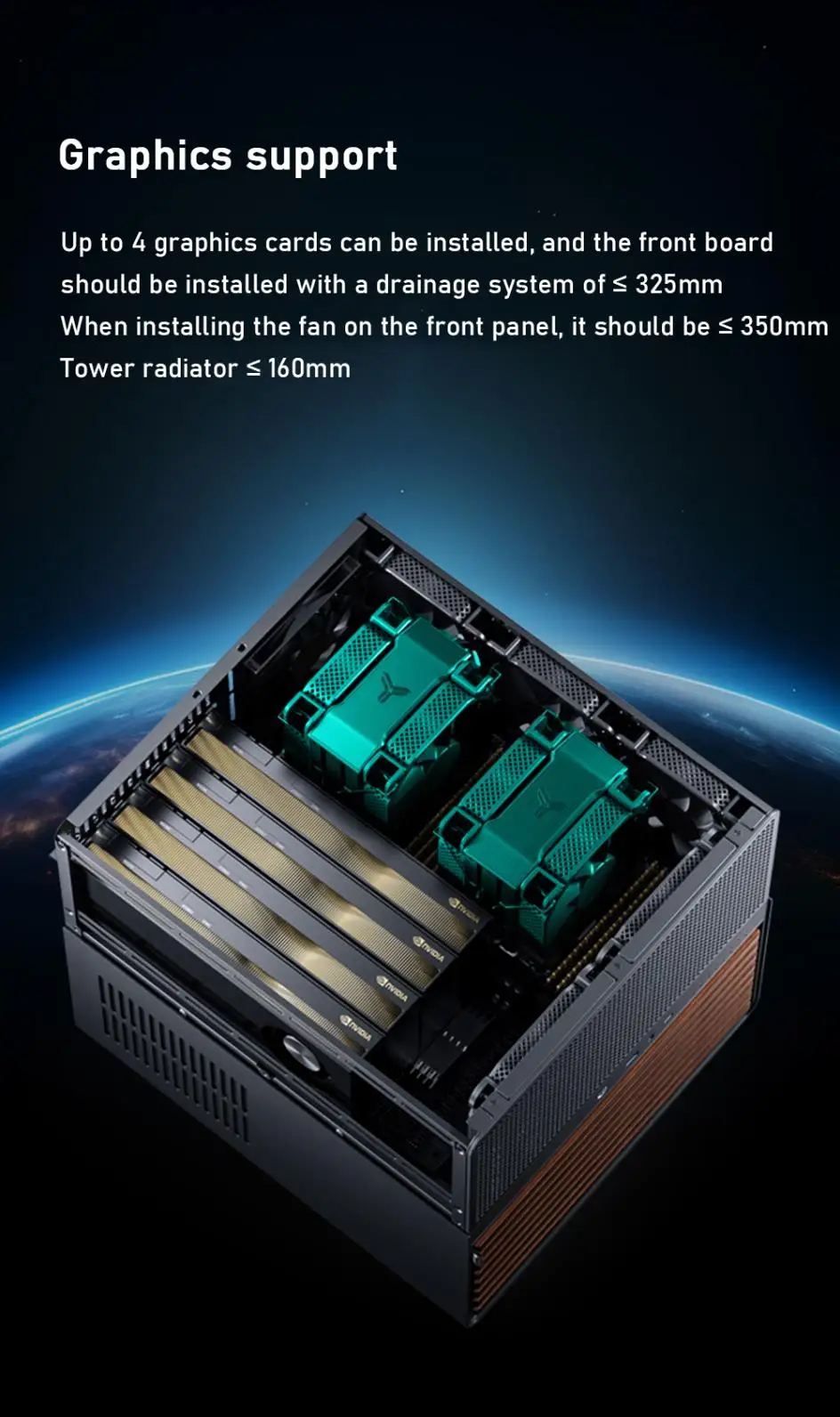

Graphics card support length: 325mm-350mm

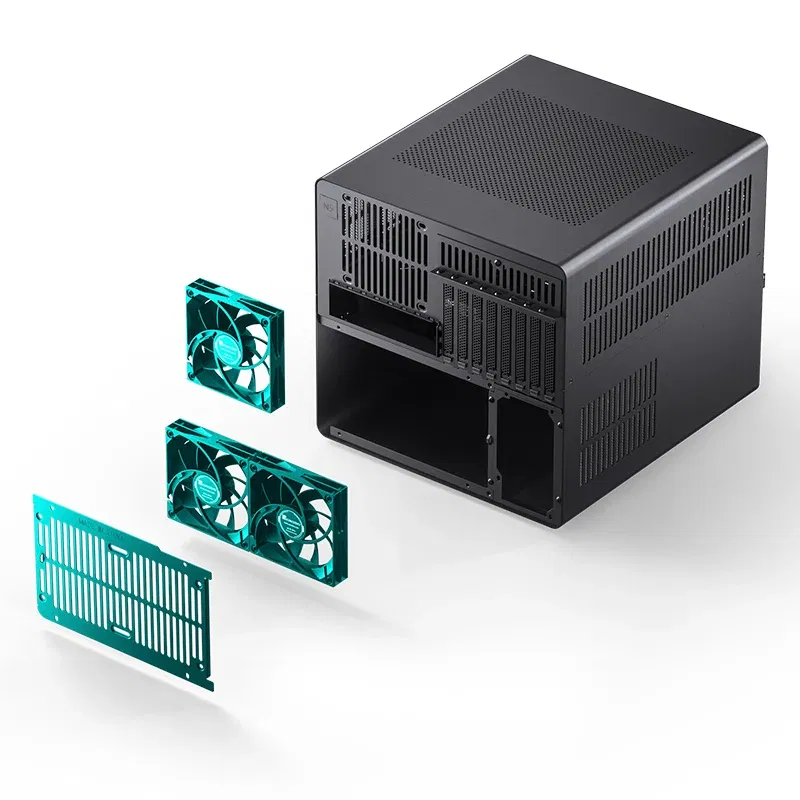

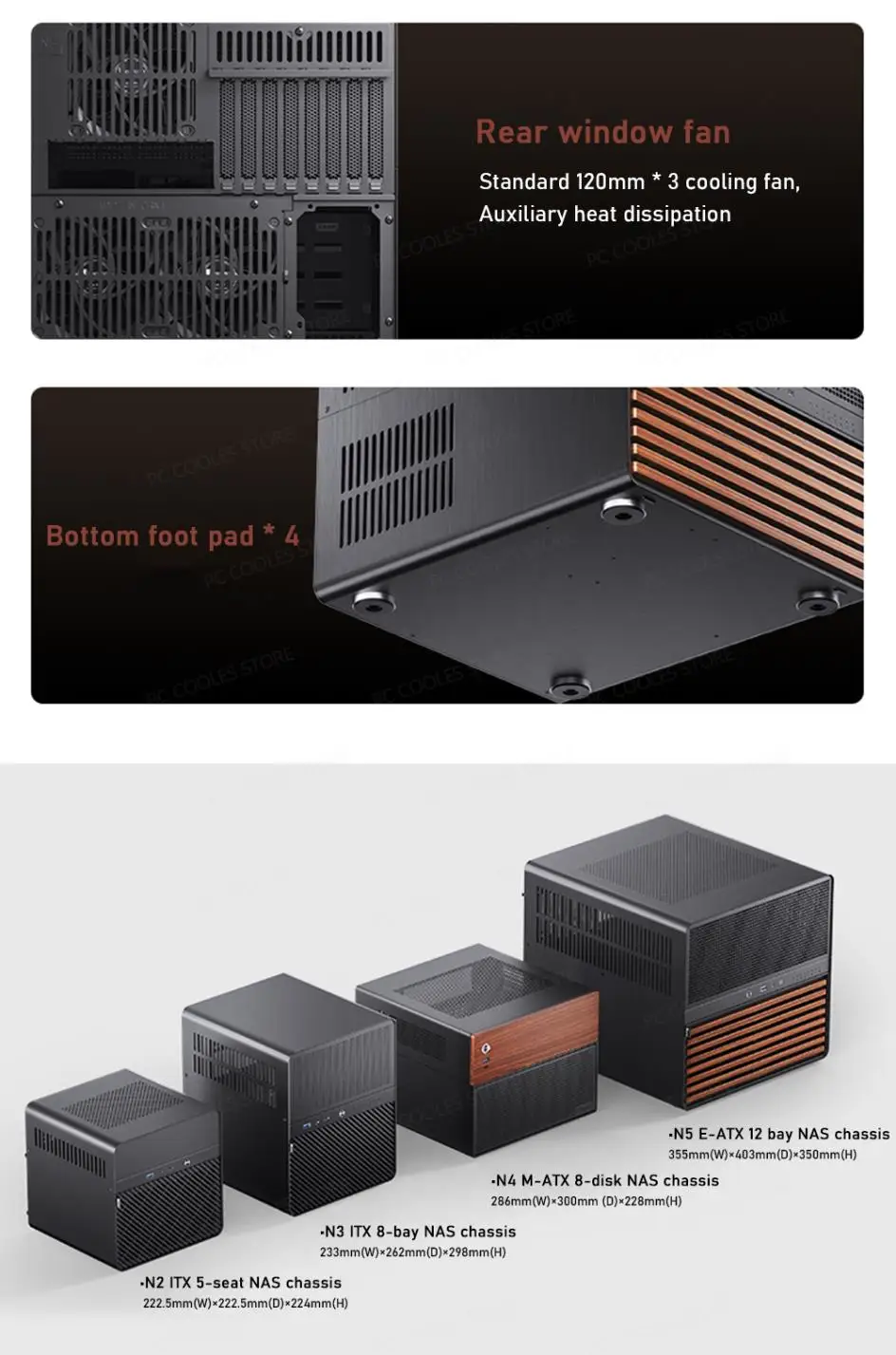

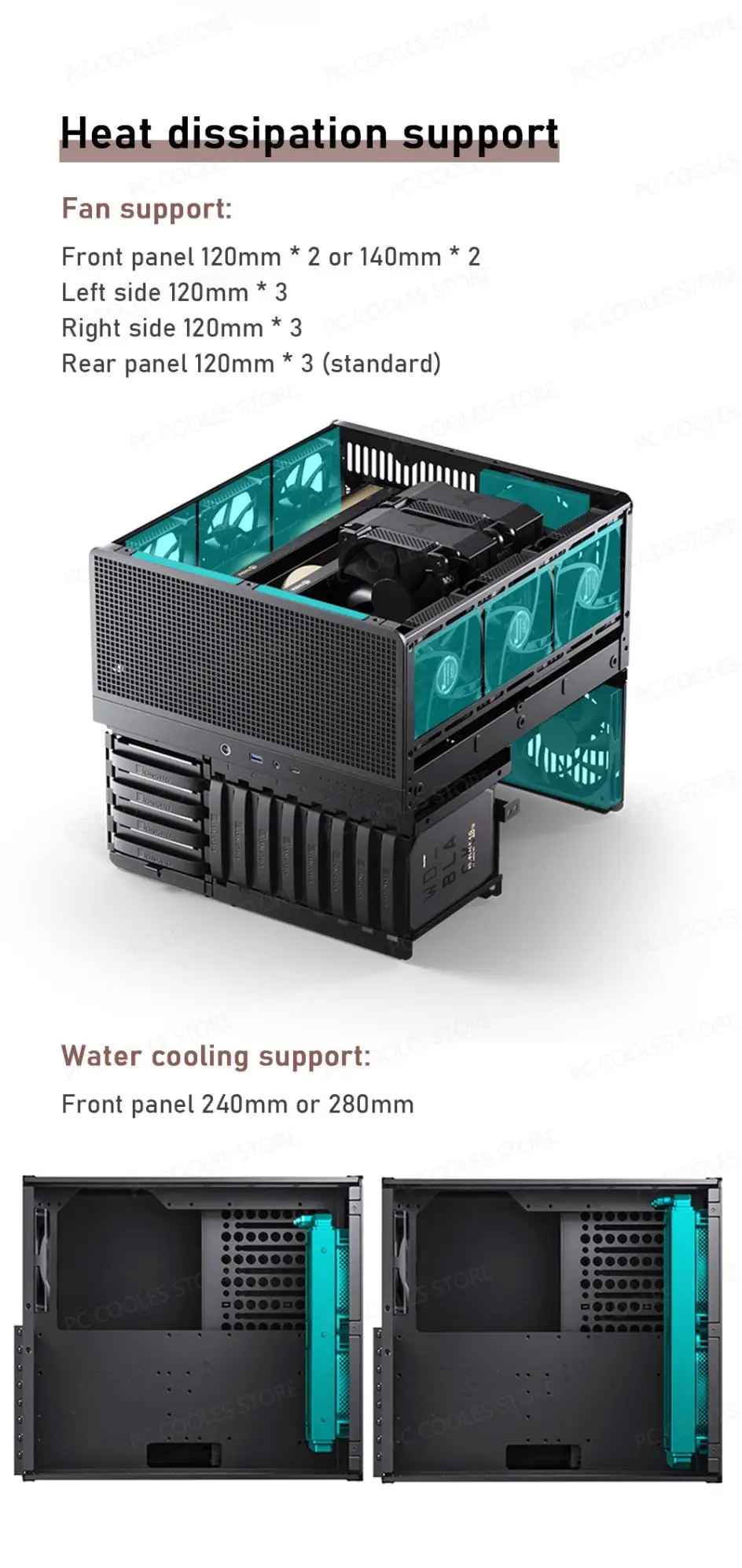

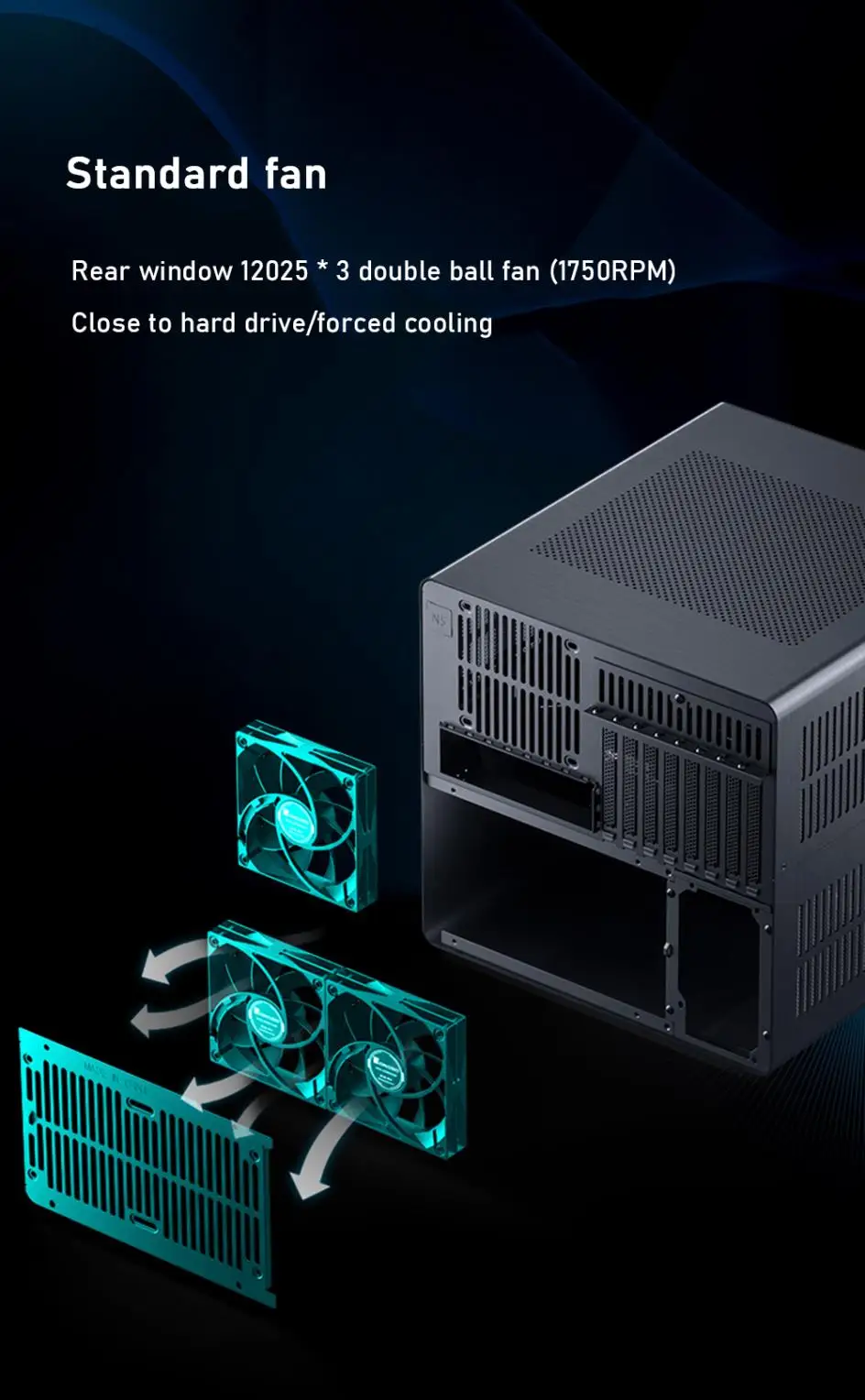

Cooling system: Front panel 120mm * 2 or 140mm * 2, right panel 120mm * 3 (fan will occupy the 8th graphics card slot), left panel 120mm * 3, rear panel 120mm * 3 (standard)

Water cooling support: 240mm/280mm

Weight: 7.5kg (net weight)

==========

Hign-concerned Chemical : None

With Power Supply : no

With Fan : YES

With Side Panel Window : no

Power Supply Mounted : Top

Dust Filters : Top

RGB Support : NO RGB

140mm Fan Options : 2

120mm Fan Options : 11

Expansion Slots : 8

Internal 2.5" Drive Bays : 2

Internal 3.5" Drive Bays : 12

Radiator Size : 280mm

Max GPU Length : 350mm

Max CPU Cooler Height : 160mm

Max PSU Length : 240mm

Case Weight : 9.5kg

Case Size : 355mm (W) *403mm (D) *350mm (H)

Power Model : ATX

Series : N5

Chassis Type : Desktops

Front Ports : USB 3.2 Gen2 Type-C * 1/USB 3.0 * 1 (AUDIO * 1+MIC * 1 2-in-1)

Application : Desktop

Form Factor : ATX,MicroATX,ITX,E-ATX

Material : aluminum,others

Model Number : N5

Type : Horizontal

Origin : Mainland China
