Description:

DescriptionMaterialPlasticProduct AttributesOrdinaryPackage Size100*100*100(mm)

1. Functions and Features:



l  High performance, cost-effective.

l  Maximum support 5-axis stepper motor driver controllers.

l  Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.



l  USB power supply and peripherals powered phase are separated to protect computer security.



l  All the signals are opto-isolated which can protect your computer security.

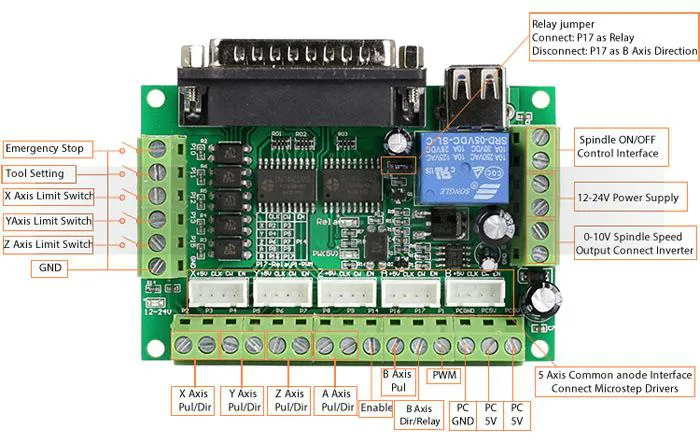

l  5-input interface to define the Limit, Emergence-Stop, Cutter alignment etc.

l  Wide input voltage range: 12-24V, and with anti-reverse function.



l  One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.



l  Compatible with all the 2 phase microstep drivers in the market.

l  Output 0-10V analog voltage for inverter to control the spindle speed.

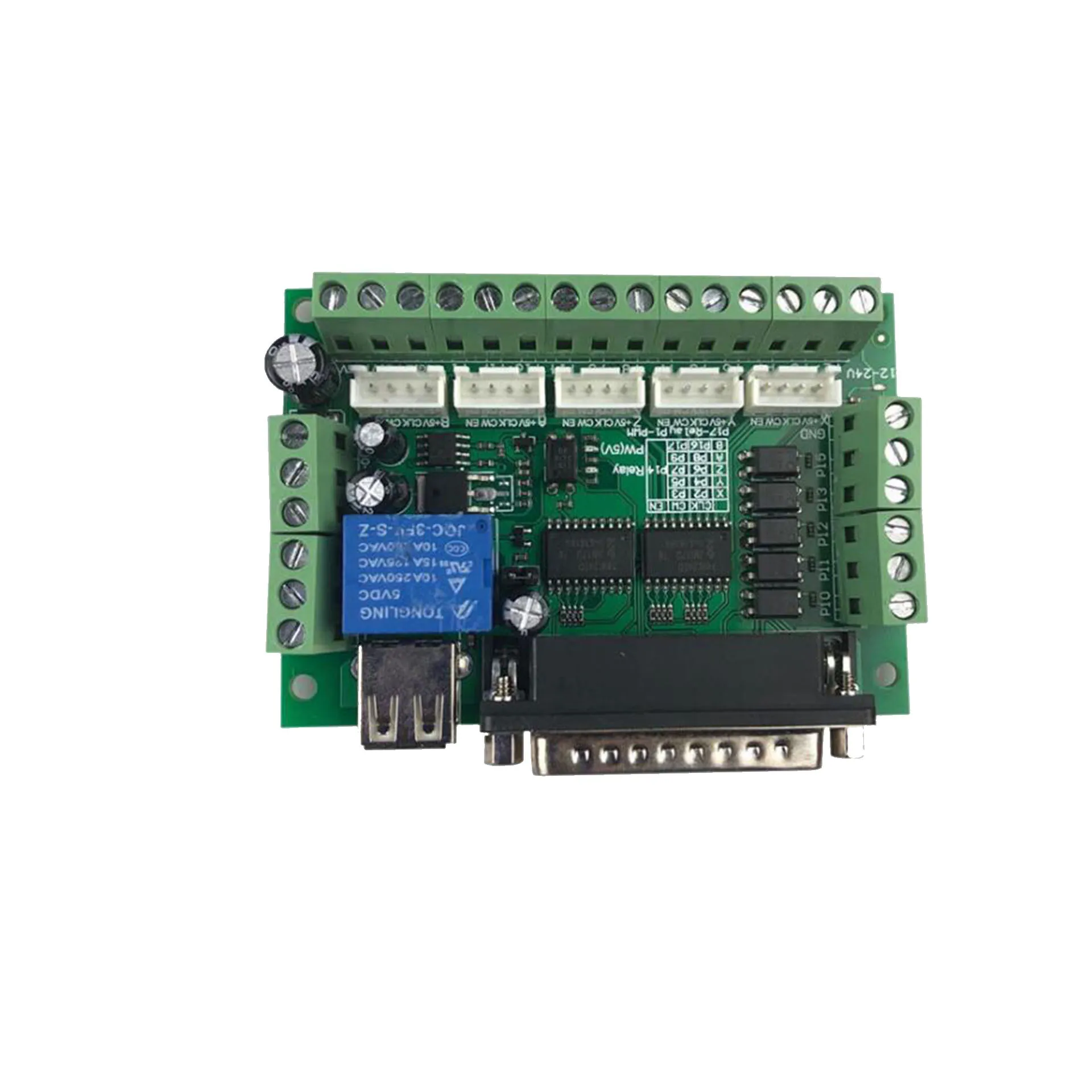

5 Axis CNC Breakout Board Interface Mach3 CNC Router Kit – Complete Control for Your CNC Projects

Description

The 5 Axis CNC Breakout Board Interface Mach3 CNC Router Kit is an essential component for anyone looking to upgrade or build a high-performance CNC router system. This kit is designed to provide reliable and precise control for 5-axis CNC operations, making it perfect for advanced machining, engraving, and milling tasks. Compatible with Mach3, a widely used CNC control software, this breakout board offers an efficient and easy-to-use interface for controlling motors, spindles, and other essential components in your CNC machine. Whether you're a hobbyist or a professional, this kit delivers the functionality and control needed for intricate and detailed CNC projects.

Key Features

• 5-Axis Control Support: This breakout board supports up to 5-axis control, allowing you to drive multiple motors simultaneously and perform complex machining tasks with precision.

• Mach3 Software Compatibility: Fully compatible with Mach3, one of the most popular CNC control software programs, making it easy to integrate into your existing system or build a custom CNC router setup.

• Durable and Reliable Construction: Built with high-quality materials, this breakout board is designed to withstand the demands of daily CNC operation, ensuring long-lasting and reliable performance.

• Easy Installation: The kit includes all the necessary components and wiring for simple installation, allowing you to quickly integrate it into your CNC machine setup. It’s designed to be user-friendly, even for those with minimal CNC experience.

• Multiple Inputs and Outputs: The breakout board features multiple input and output connections for stepper motors, limit switches, and other critical components, giving you full control over your CNC router system.

• Versatile Use: This kit is perfect for a wide range of CNC applications, including routing, engraving, milling, and more. Whether you're working with wood, metal, or plastic, this system provides the precision and versatility needed for your projects.

• Powerful Motor Control: The board ensures smooth and precise control of stepper motors, which is crucial for achieving accurate and detailed results in your CNC machining tasks.


Benefits

• Increased Precision and Control: The 5-axis control capability provides the precision needed for more complex and intricate CNC tasks, such as engraving and multi-dimensional milling.

• Seamless Integration with Mach3: With Mach3 software compatibility, you can easily control and monitor all aspects of your CNC router, streamlining the setup and operation process.

• Enhanced Durability and Longevity: Designed for heavy-duty use, this breakout board is built to last, ensuring consistent performance and reduced downtime for your CNC machine.

• Versatile Application: Perfect for various materials like wood, metal, and plastics, this system is ideal for both professional machining and DIY projects, offering flexibility in your CNC work.

• Easy Setup and Operation: The kit is designed for easy integration with your existing CNC setup, with clear instructions and wiring diagrams for quick installation. This ensures a smooth transition, even for beginners.

• Cost-Effective Solution: Offering the functionality and performance of high-end CNC systems at a more affordable price, this kit provides a cost-effective way to improve your CNC capabilities without breaking the bank.


Why Choose the 5 Axis CNC Breakout Board Interface Mach3 CNC Router Kit?

The 5 Axis CNC Breakout Board Interface Mach3 CNC Router Kit is a must-have for anyone looking to enhance their CNC router's performance. With support for up to 5-axis control, Mach3 software compatibility, and reliable motor control, this kit offers everything you need to take your CNC projects to the next level. Whether you're building a custom CNC router system or upgrading an existing one, this kit provides the precision and flexibility required for complex and detailed machining tasks.

Conclusion

In conclusion, the 5 Axis CNC Breakout Board Interface Mach3 CNC Router Kit is the perfect solution for those looking to enhance their CNC capabilities. With its 5-axis control, Mach3 compatibility, and durable construction, it offers reliable and precise performance for a wide range of CNC applications. Whether you're a hobbyist or a professional, this kit provides the control and flexibility you need for intricate CNC projects, ensuring that your work is accurate, efficient, and cost-effective.
