Description:

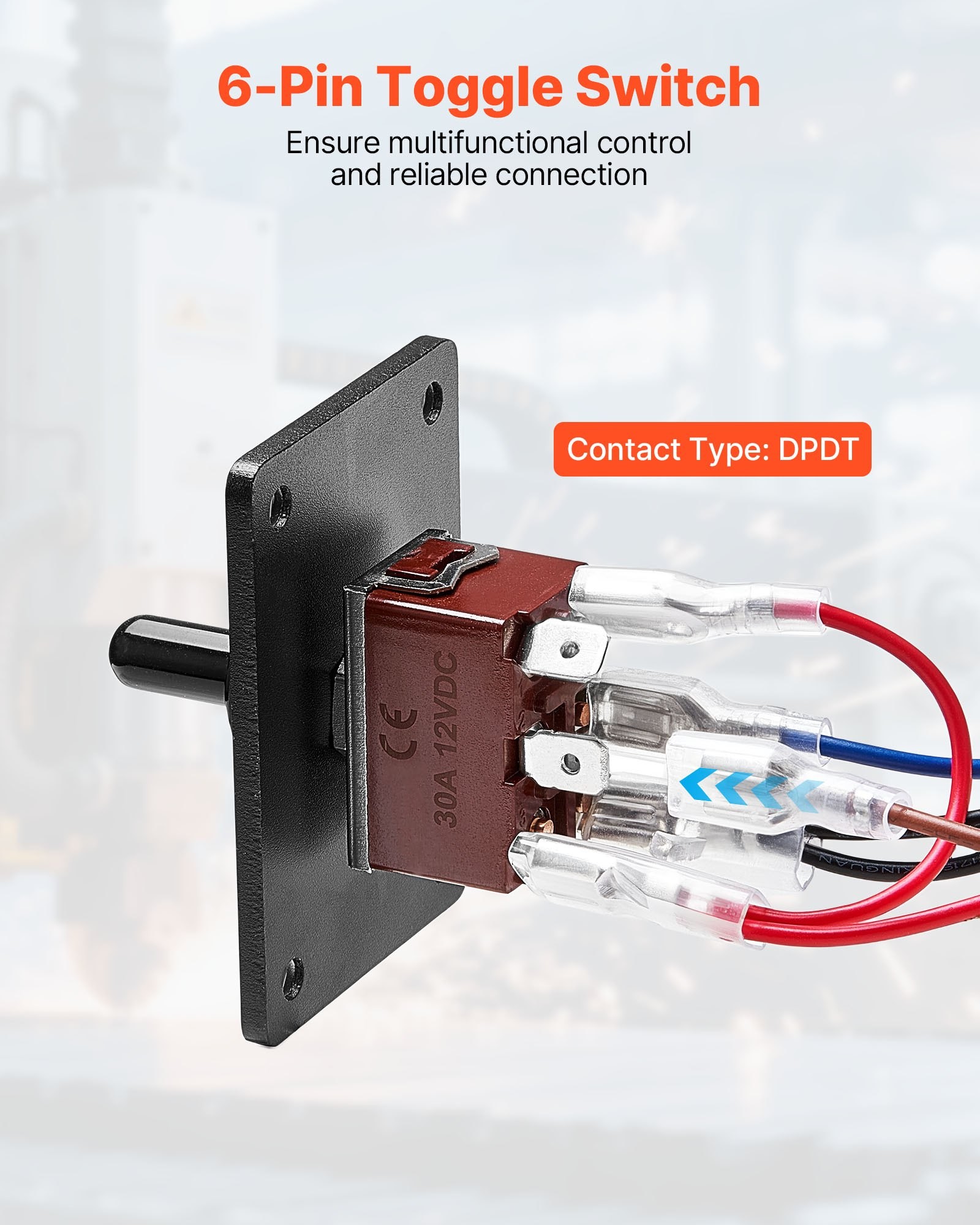

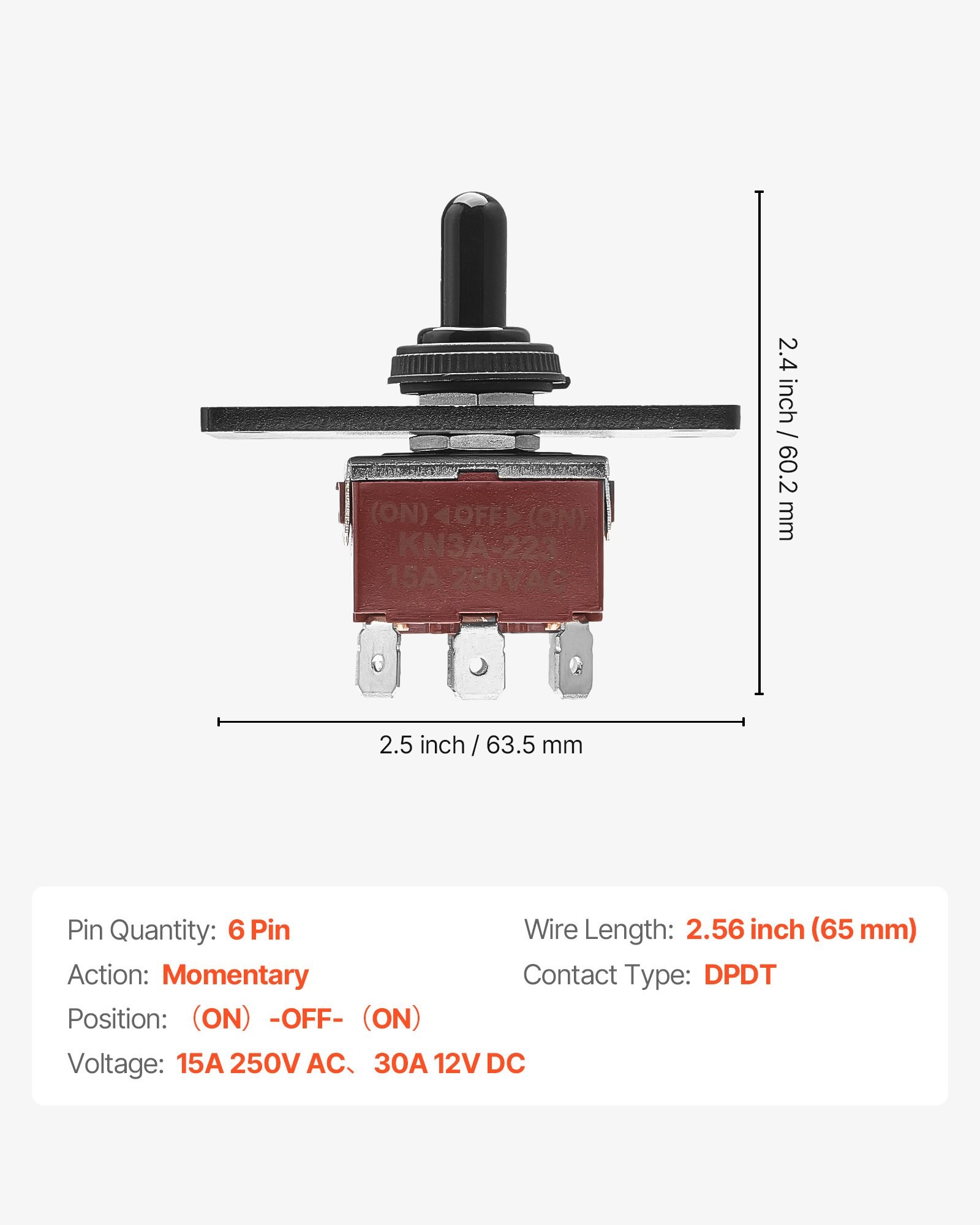

Key Specifications: Pin Quantity: 6 Pin; Action: Momentary; Contact Type: DPDT; 3 Position: (ON)-OFF-(ON); Voltage: 15A 250V AC, 30A 12V DC ; Wire Length: 2.56" (65 mm).

High Load Capability: This toggle switch is rated for up to 30A at 12VDC or 15A at 250VAC, making it dependable for heavy-duty liner actuators and DC motor systems, ensuring reliable performance

Effortless Polarity Reversal: With built-in polarity-reversing jumpers, this 3-position momentary toggle switch enables forward/reverse motor control without the need for rewiring

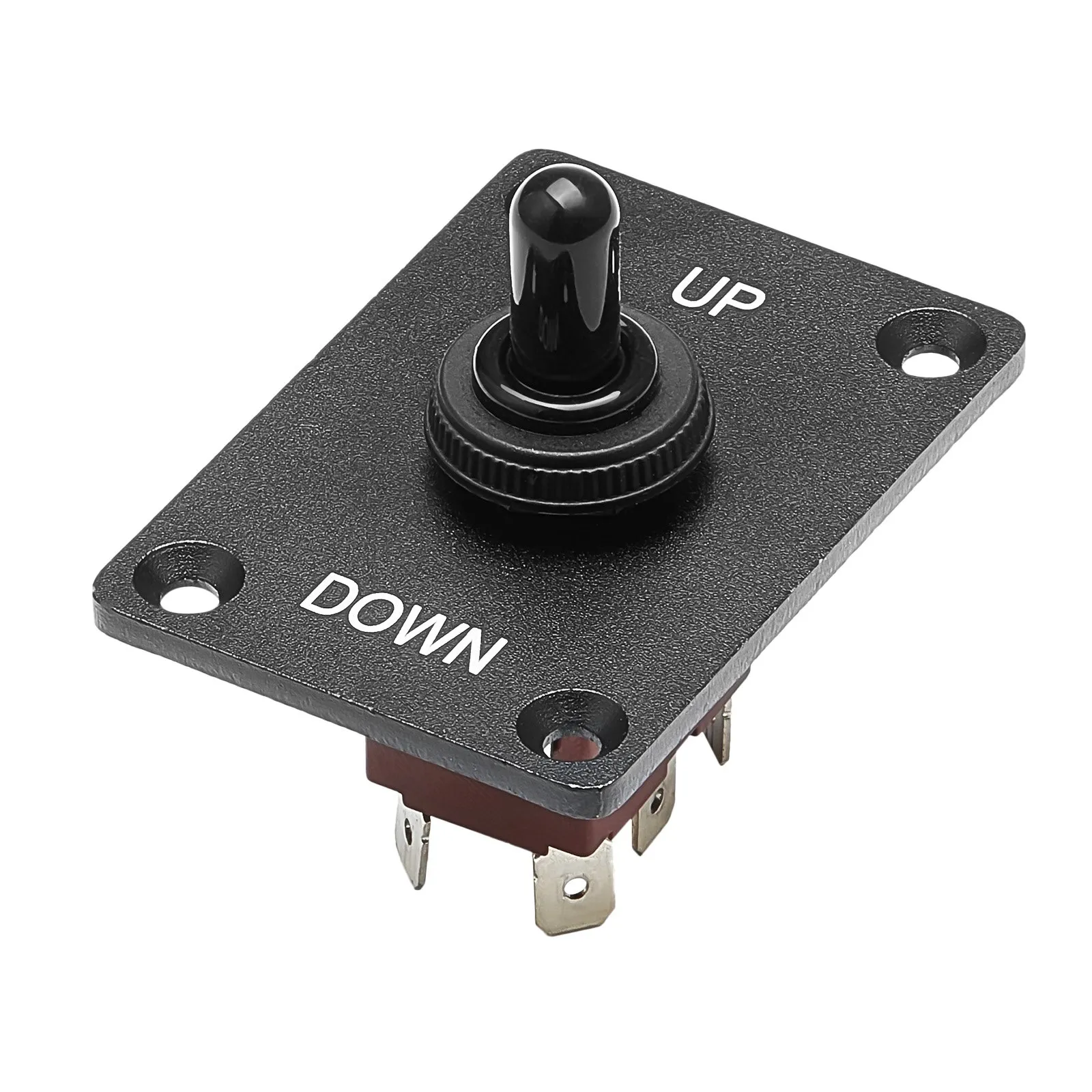

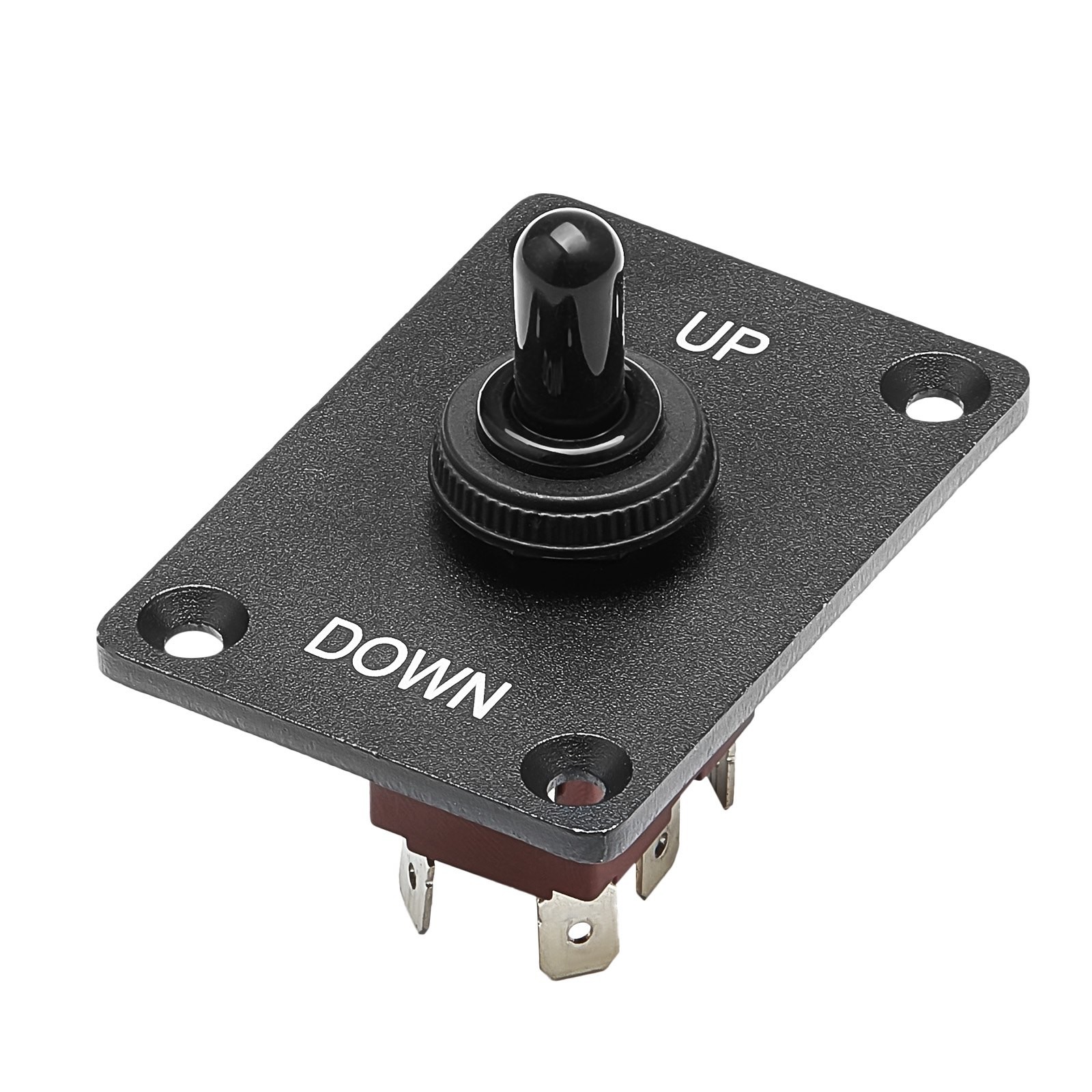

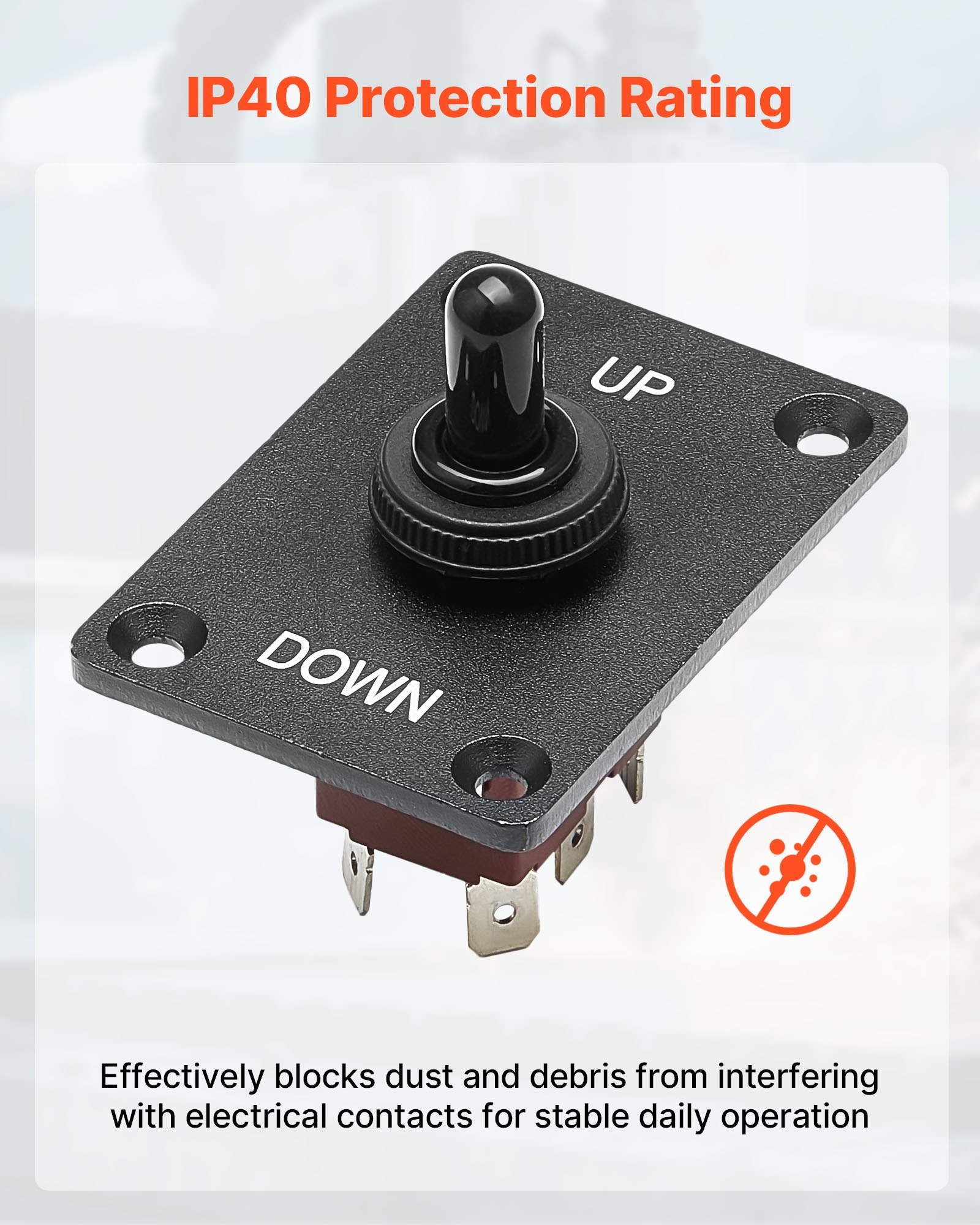

Quick Installation: Featuring a mounting panel with a standard 0.48-inch mounting hole, this toggle switch is easy to install on dashboards, control boxes, or machinery. Also includes waterproof boot cap cover for dust protection

6-Pin Toggle Switch – Versatile Control for Multi-Circuit Applications

Perfect for Electrical Panels, Automotive Systems, Machinery, DIY Electronics, and Control Applications Worldwide

The 6-Pin Toggle Switch is designed for users who require flexible and reliable control over multiple electrical circuits. Ideal for automotive systems, control panels, industrial equipment, appliances, and DIY electronics projects, this switch allows complex switching operations within a compact and durable design. Its multi-pin configuration supports advanced circuit control while maintaining simple, intuitive operation.

Description – 6-Pin Toggle Switch

The 6-Pin Toggle Switch is an electrical control component engineered to manage multiple circuits or switching states within a single unit. Unlike basic on/off switches, this toggle switch uses a six-pin configuration to support more advanced switching functions such as double-pole double-throw (DPDT) or multi-circuit control. This makes it suitable for applications where direction control, mode selection, or circuit isolation is required.

The toggle mechanism provides a clear physical indication of the switch position, allowing users to instantly identify the active state. This is particularly important in technical environments where accurate control and visibility are critical. The firm switching action ensures reliable engagement and disengagement of circuits, reducing the risk of intermittent connections.

Built with durable materials and robust internal contacts, the 6-pin toggle switch is designed to withstand frequent use and varying electrical loads. The internal contact design supports consistent conductivity, ensuring stable performance across repeated switching cycles. Its housing provides insulation and protection, helping prevent accidental contact with live components.

The switch is commonly used in automotive wiring for functions such as direction switching, auxiliary controls, and accessory management. In electronics and DIY projects, it enables flexible circuit routing, signal selection, or polarity reversal. In industrial and control panel applications, it supports dependable operation where multiple circuits must be controlled from a single interface.

The compact form factor allows the switch to be mounted easily into panels, enclosures, or dashboards using standard mounting holes. This makes it suitable for new installations as well as replacements or upgrades in existing systems.

Key selling points include multi-circuit capability, durable toggle mechanism, clear position feedback, and broad application compatibility. The 6-pin toggle switch provides reliable control for systems that demand more than simple on/off functionality.

Key Points

Six-Pin Multi-Circuit Configuration

Supports advanced switching functions such as double-pole control, direction change, or circuit selection.

Clear Toggle Actuation

Provides firm tactile feedback and visible switch position for confident and accurate operation.

Durable Electrical Contacts

Designed for stable conductivity and reliable performance over repeated switching cycles.

Panel-Mount Ready Design

Easily installs into control panels, enclosures, dashboards, and equipment housings.

Benefits

Enables Advanced Circuit Control

Allows users to manage multiple circuits or switching states with a single, compact component.

Improves Operational Accuracy

Clear on/off or directional positioning reduces user error in technical or safety-critical applications.

Suitable for Diverse Applications

Ideal for automotive systems, electronics projects, machinery controls, and electrical panels.

Long-Term Reliability

Robust construction supports frequent use without loss of performance or contact quality.

Why Choose This 6-Pin Toggle Switch?

The 6-Pin Toggle Switch stands out due to its versatility and dependable construction. Unlike basic switches limited to simple power control, this switch supports more complex circuit configurations while remaining easy to operate.

For professionals, it offers a reliable solution for managing multiple electrical paths within control panels or equipment. For automotive users, it enables precise control over accessories and directional functions. For DIY builders, it provides flexibility to experiment with circuit designs without requiring multiple separate switches.

Its durable toggle mechanism ensures consistent operation, while the six-pin layout opens up a wide range of wiring possibilities. The standard mounting design makes installation straightforward across different applications and environments.

Choosing this 6-pin toggle switch means selecting a component that combines flexibility, clarity, and long-term reliability. It is a practical choice for systems where dependable multi-circuit control is essential.

Conclusion

The 6-Pin Toggle Switch is a reliable and versatile solution for controlling multiple electrical circuits within a compact design. Its six-pin configuration supports advanced switching functions while maintaining simple, intuitive operation.

Suitable for automotive, industrial, electronic, and DIY applications, this switch delivers consistent performance and clear control. Its durable construction and panel-mount compatibility make it a dependable component for both new builds and system upgrades.

For users who require flexible circuit control with dependable operation, the 6-pin toggle switch offers a practical, long-lasting solution.
