Description:

21.5" Full HD Touchscreen, HDMI input Slim Design, 12VDC input (AC adapter supplied) 250 cm/m2, USB touch interface

Specifications

Display	Viewing Angle (H/V°)	178/178
Backlight Life (hrs)	50,000 hrs
Luminance (cd/m2)	250
Max. Resolution	1920 x 1080
Max. Colours	16.7 Million
Contrast Ratio	1000:1
Display Type	Full HD TFT LED LCD
Display Size	21.5"
General	Power Input	External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
Mounting	Panel, Wall, Desktop, VESA Arm
Certifications	BSMI, CCC, CE, FCC Class A, UL, CB
Enclosure	Front panel: Die-casting aluminium, Rear cover: Die-casting aluminium
Video Port	HDMI
Environment	Humidity (Storage)	10 ~ 95% non-condensing
Waterproof	Front panel IP65 compliant
Operating Temperature	0 ~ 50° C (32 ~ 122° F)
Mechanical	Dimensions (mm)	558.4 (w) x 56.2 (d) x 349.8 (h)
Weight	8kg

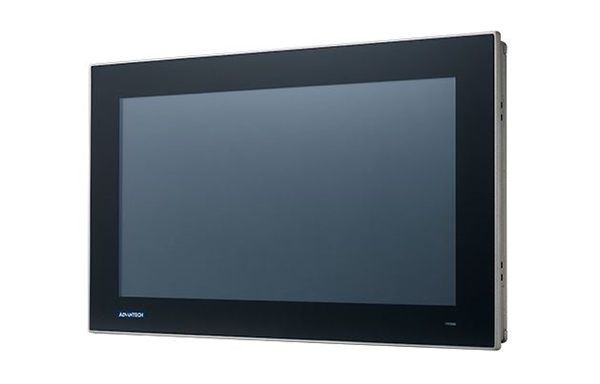

Advantech FPM-221W 21.5" FHD Capacitive Industrial IP66 Touchscreen

Overview

The Advantech FPM-221W is a robust 21.5-inch Full HD industrial touchscreen monitor designed to withstand demanding environments. Featuring a true-flat projected capacitive (P-CAP) touchscreen, this monitor offers 10-point multi-touch capability, ensuring precise and responsive input. Its IP66-rated aluminum alloy front bezel provides protection against dust and water ingress, making it suitable for industrial applications such as smart factories and machine automation displays.

Key Features

• 21.5" Full HD TFT LED LCD Display: Offers a 1920 x 1080 resolution with a 250 cd/m² luminance, delivering clear and vibrant visuals.

• Projected Capacitive (P-CAP) Touchscreen: Supports 10-point multi-touch via USB interface, compatible with Windows 7/8/10, XPe, CE, and Linux operating systems.

• Wide Viewing Angle: Provides a 178° horizontal and vertical viewing angle, ensuring consistent image quality from various perspectives.

• Durable Construction: Built with a die-cast aluminum chassis and an IP66-rated aluminum alloy front bezel, offering protection against dust and water.

• Flexible Mounting Options: Supports panel, desktop, and VESA arm mounting configurations for versatile installation.

• Lockable I/O Connectors: Enhances security by preventing unauthorized access to input/output ports.

• Certifications: Complies with BSMI, CCC, CE, FCC Class A, UL, and CB standards.


Specifications

• Display Size: 21.5 inches

• Resolution: 1920 x 1080 (Full HD)

• Brightness: 250 cd/m²

• Contrast Ratio: 1000:1

• Touch Interface: USB

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -20°C to 60°C

• Power Input: External 60W power adapter (AC 100V ~ 240V input, DC +12V @ 5A output)

• Weight: 6 kg (13.23 lbs)

• Dimensions (W x H x D): 558.4 x 349.8 x 56.2 mm


Applications

The FPM-221W is ideal for various industrial applications, including:

• Human-Machine Interface (HMI) systems

• Industrial Automation and control panels

• Smart Factory and IIoT (Industrial Internet of Things) setups

• Outdoor Kiosk and public information displays


Conclusion

The Advantech FPM-221W 21.5" FHD Capacitive Industrial IP66 Touchscreen offers a durable and versatile solution for industrial environments requiring reliable touch interaction. Its high-resolution display, multi-touch capability, and robust construction make it suitable for a wide range of applications, ensuring efficient and intuitive operation in demanding settings.
