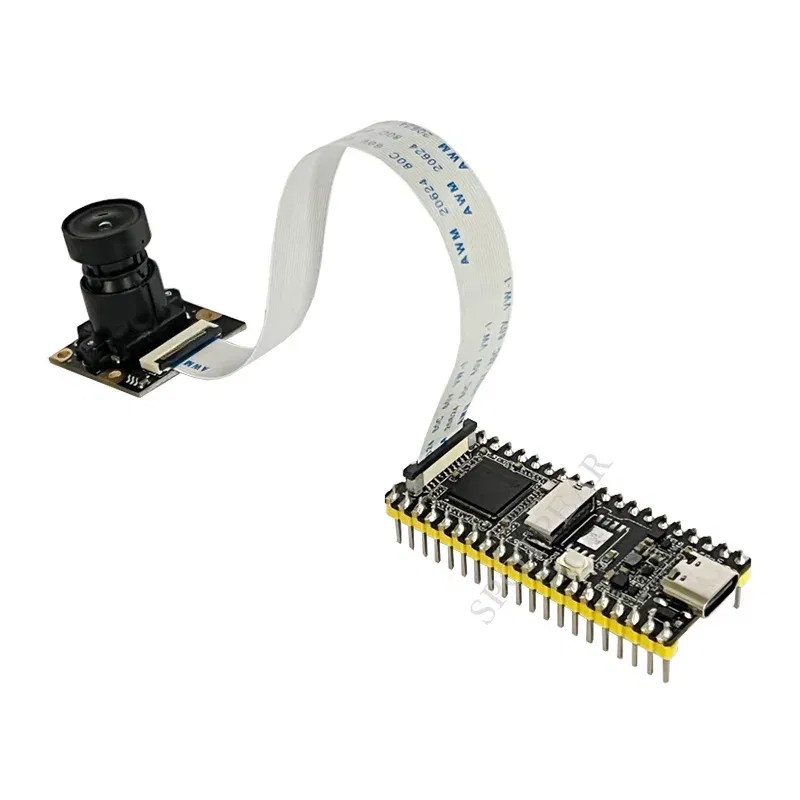

Bundle: Bundle 7 - 【First-level Authorized Agency?‘LuckFox Pico Linux board RV1103 Rockchip AI Board ARM Cortex-A7 better than Raspberry Pi Pico

【Luckfox Pico Recommend】

【Note】

[] Do not include Camera Module

[] 'Plus Version' Onboard 1Gb SLC NAND FLASH

【Overview】

[] LuckFox Pico Plus is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO,UART,SPI, I2C, USB, etc., which is convenient for developing and debugging quickly.

【Ethernet Port Version Option】

【Specifications】

[] Processor : Cortex A7@1.2GHz + RISC-V

[] NPU : 0.5TOPS, supports int4, int8 and int16

[] ISP : Input 4M @30fps (Max)

[] Memory : 64MB

[] USB : USB 2.0 Host/Device

[] Camera : MIPI CSI 2-lane

[] GPIO : 25 × GPIO pins

[] Ethernet port : 10/100M Ethernet controller and embedded PHY

【Easier To Develop】

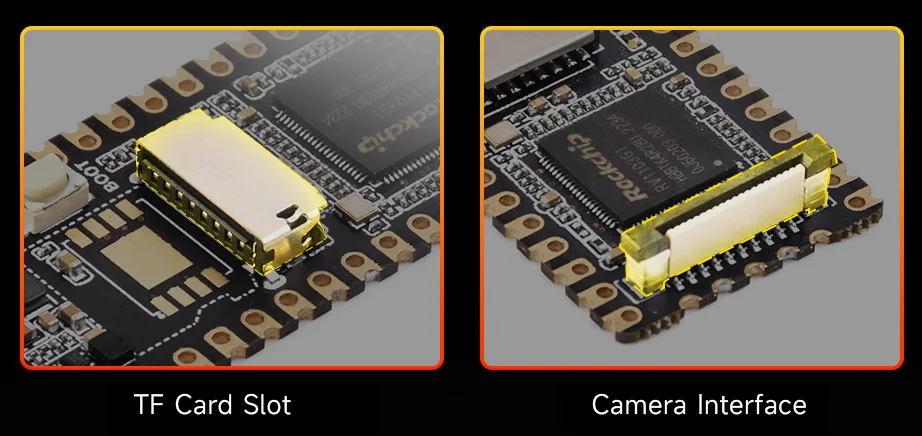

[] Luckfox-Pico Integrates TF Card Slot, Camera Interface

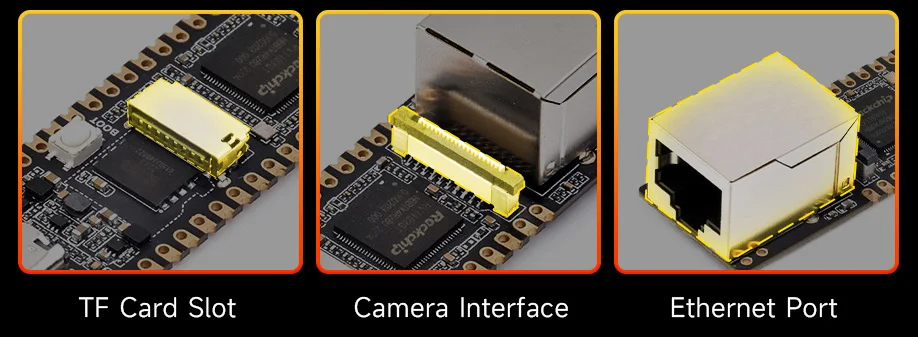

[] Luckfox-Pico-Plus Integrates TF Card Slot, Camera Interface And Ethernet Port

【Suitable For More Application Examples】

[] Luckfox-Pico

[] Luckfox-Pico-Plus

【Introduction Resources】

[] Luckfox-Pico

1. USB Type-C connector

2. ACT-LED

3. BOOT button : Press it when powering on to enter download mode

4. TF card slot

5. RV1103 : Vision processor SoC with built-in ARM Cortex-A7 core

6. CSI camera interface : MIPI CSI 2-lane

7. GPIO header

8. USB test pads

9. BOOT test pad

10. Microphone test pads

11. Ethernet interface pads

[] Luckfox-Pico-Plus

1. USB Type-C connector

2. ACT-LED

3. TF card slot

4. BOOT button : Press it when powering on to enter download mode

5. W25N01GV : 1Gb SLC NAND FLASH

6. RV1103 : Vision processor SoC with built-in ARM Cortex-A7 core

7. CSI camera interface : MIPI CSI 2-lane

8. RJ45 Ethernet port

9. GPIO header

10. USB test pads

11. BOOT test pad

12. Microphone test pads

【Outline Dimensions】

[] Luckfox-Pico

[] Luckfox-Pico-Plus
