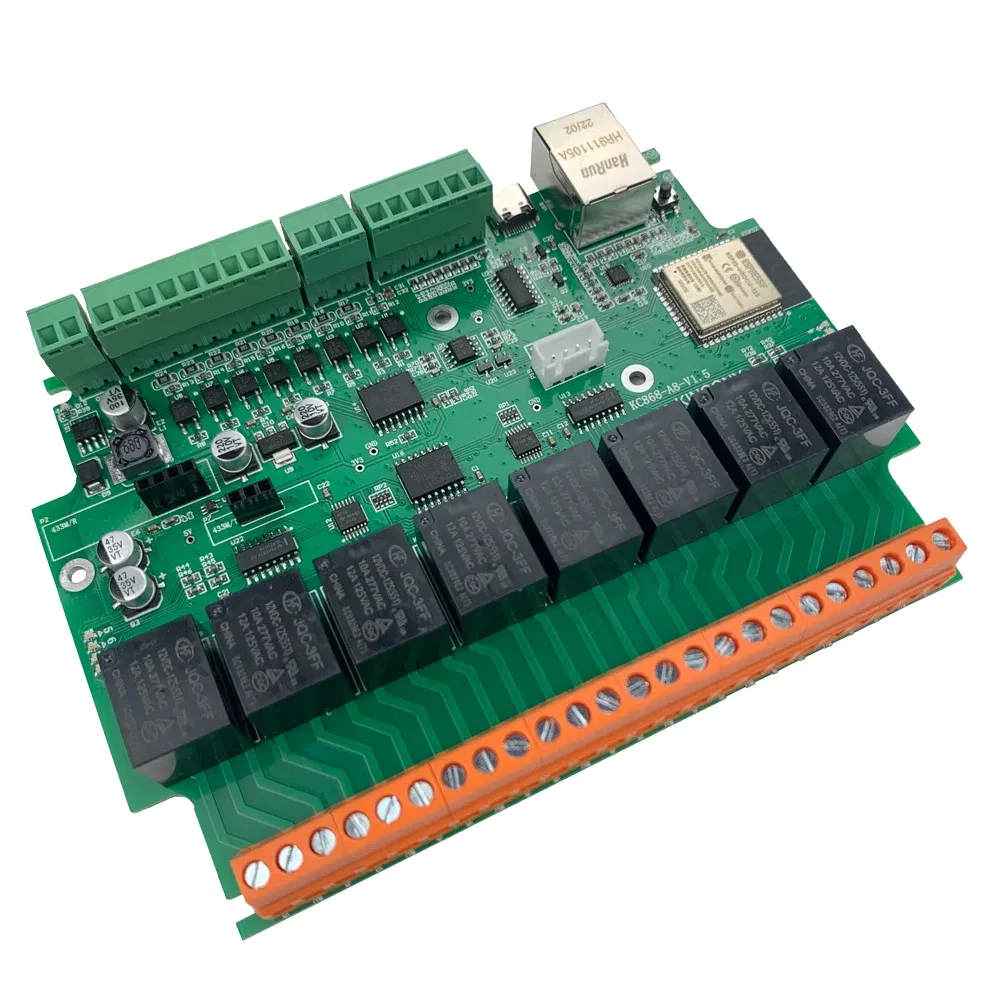

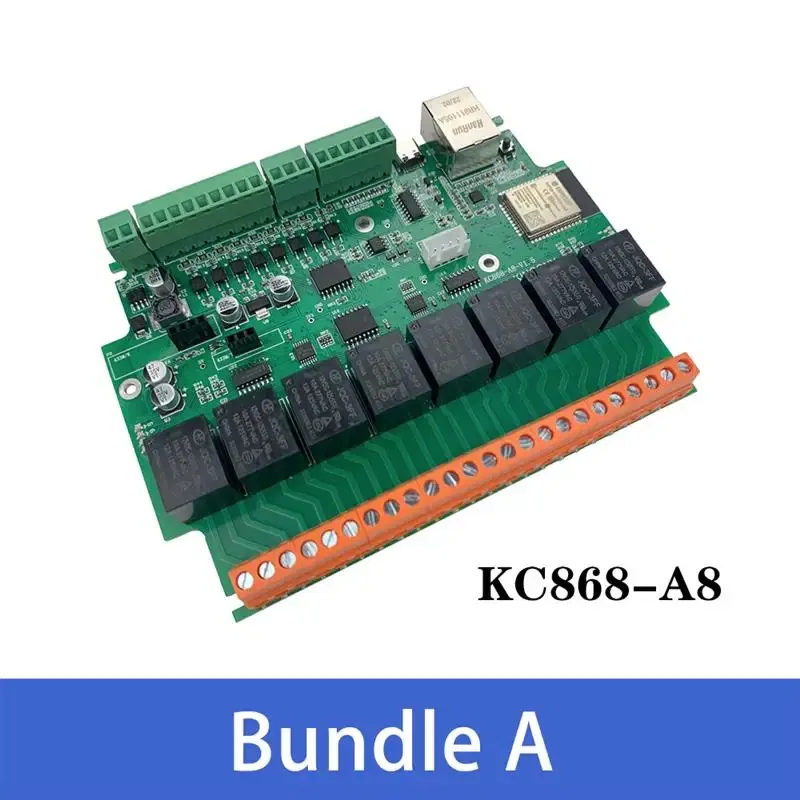

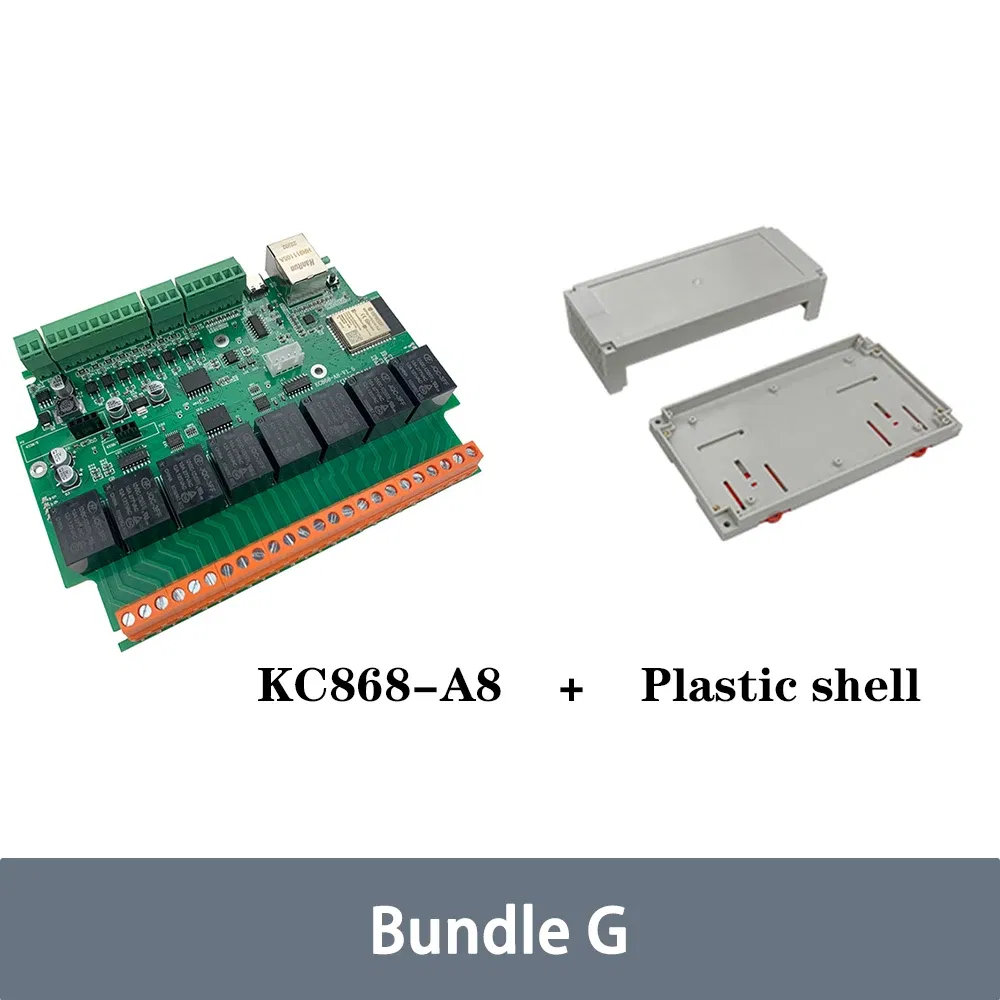

Bundle: Bundle1, Ships From: CHINA - New! Kincony A8 Smart Home Automation Module Controller WiFi Ethernet Relay ESP32 RF Remote Dimmer Switch MQTT TCP Web HTTP
$67.58 AUD
Approx $47.17 USD
Description:
Communication method: otherHign-concerned Chemical: None
Origin: Mainland China
Specifications: CN Plug
Compatibility: All Compatible
State of Assembly: Ready-to-Go
Camera Equipped: No
Certification: none
Model Number: KC868-A8
Hign-concerned Chemical: None
Communication method: Bluetooth-compatible,RF,Wi-Fi,IR
Digital input: 2
Relay output: 8
Input port: 8
Relay MAX load: AC277V/10A
Firmware download: USB
Communication: RS232/WiFi/Ethernet
Voltage: DC12V
Analog input: DC 0-5V*2 4-20mA*2
Temperature port: DS18B20/DHT11/21
RF433MHz send: 1
RF433MHz receiver: 1
Button: 2
Tasmota: Support
Arduino IDE: Support
Maximum current: 16A
APP: Tuya / Smart Life
Voice Control: Alice / Alexa / Google Home
Color: white
Output / Input: AC 100-240V 50/60Hz
Wi-Fi: IEEE 802.11b/g/n
Material: PCV-0
More Information: View Detail Destription
ESP32 module use Espressif - "ESP32-WROOM-32"
KC868-A8 smart controller , many hardware resource for you to use, you can write any code by Arduino IDE to ESP32 wifi module. We will supply demo code for different samples. Everyone can modify and change the code for your own smart home automation system project.
videoguideonYouTube:https://www.youtube.com/c/kincony
Technicalsupportforum:https://www.kincony.com/forum
KC868-A8 manual and lessons (Wrote by Alex translated English by Nebojsa from Croatia)

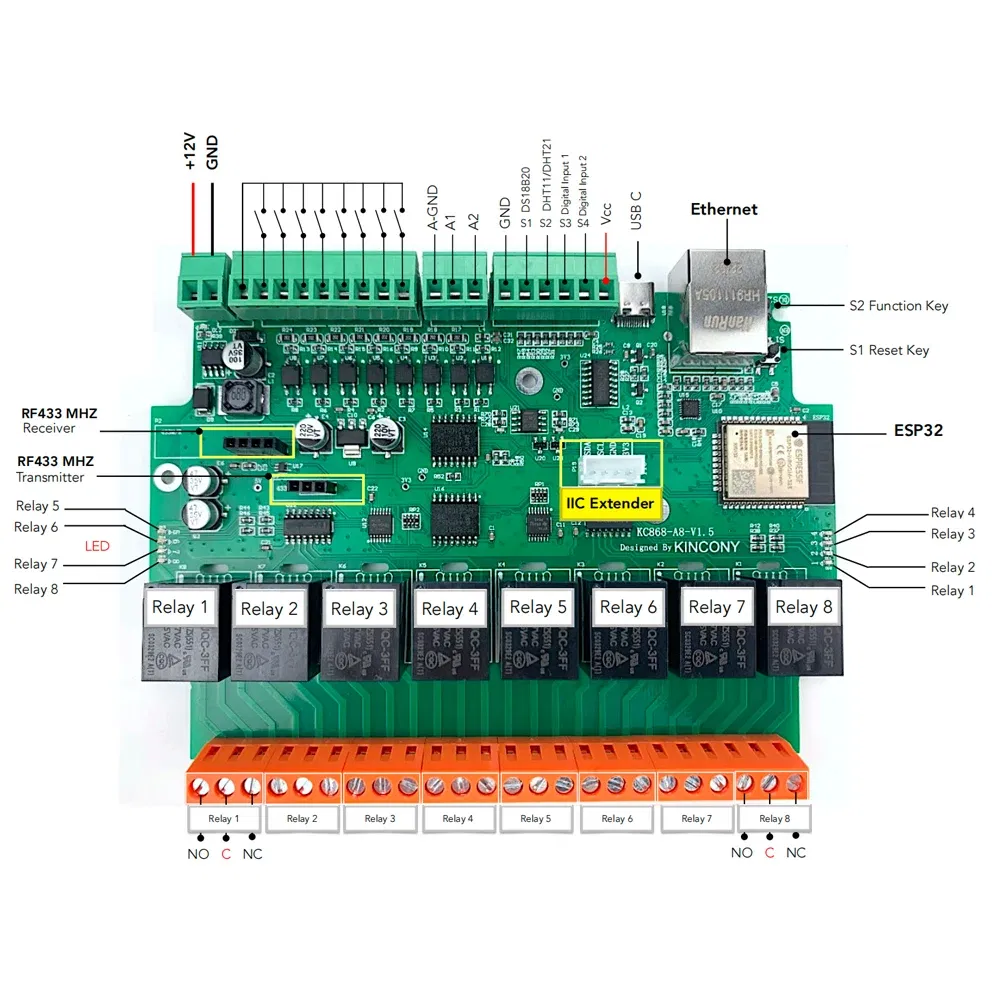

Hardware design details
https://www.kincony.com/kc868-a8-hardware-design-details.html
KC868-A8 manual and lessons (Wrote by Alex from Russia by Russian language)
KC868-A8: . 1. ESP32 + Ethernet
https://habr.com/ru/company/ruvds/blog/651109/
KC868-A8: . 2. A8
https://habr.com/ru/company/ruvds/blog/652883/
KC868-A8 manual and lessons (Wrote by Alex translated English by Nebojsa from Croatia)
Hardware design details
https://www.kincony.com/kc868-a8-hardware-design-details.html
How to programming
https://www.kincony.com/how-to-programming.html
==========
Hign-concerned Chemical : None
Communication method : Bluetooth-compatible,RF,Wi-Fi,IR
Camera Equipped : No
State of Assembly : Ready-to-Go
Model Number : KC868-A8
Compatibility : All Compatible
Origin : Mainland China
Certification : CE,FCC,RoHS,UL
Digital input : 2
Relay output : 8
Input port : 8
Relay MAX load : AC277V/10A
Firmware download : USB
Communication : RS232/WiFi/Ethernet
Voltage : DC12V
Analog input : DC 0-5V*2 4-20mA*2
Temperature port : DS18B20/DHT11/21
RF433MHz send : 1
RF433MHz receiver : 1
Button : 2
Tasmota : Support
Arduino IDE : Support
