Color: Dark Grey - 4X Waterproof Servo 20Kg 25Kg 30Kg 35Kg 40Kg High Speed servo Pro Metal Gear Digital Servo Baja Servo For 1/8 1/10 Scale RC Cars
$138.85 AUD
Approx $97.61 USD
Description:
Is Electric: No batteryOrigin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Servos
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: tires
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Cutting
Technical parameters: KV1100
Model Number: DS3218 update and DS3218 Pro
Four-wheel Drive Attributes: Assemblage
Choice: yes
Sepcification:

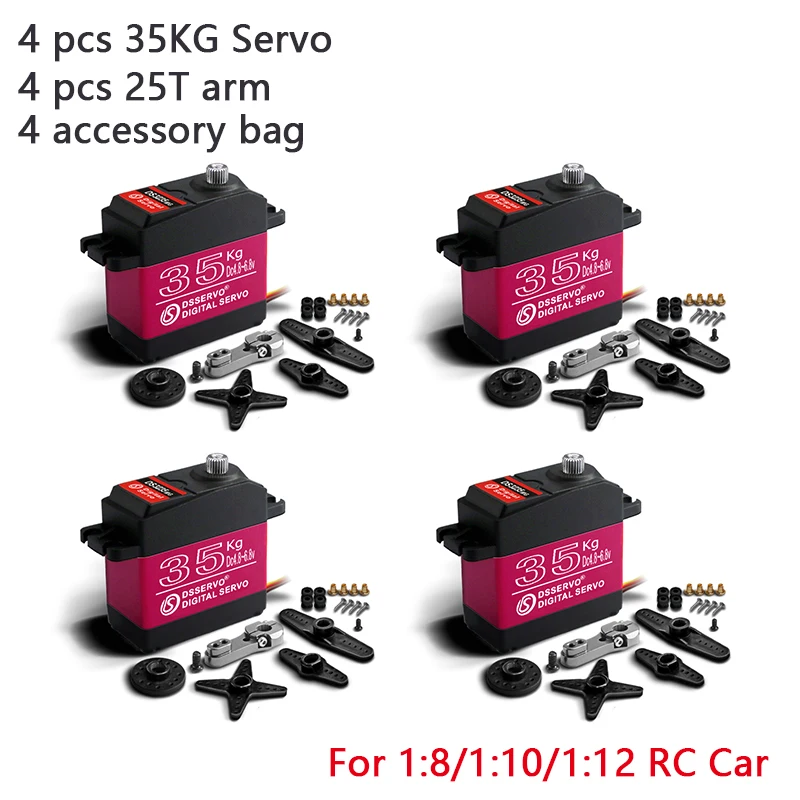

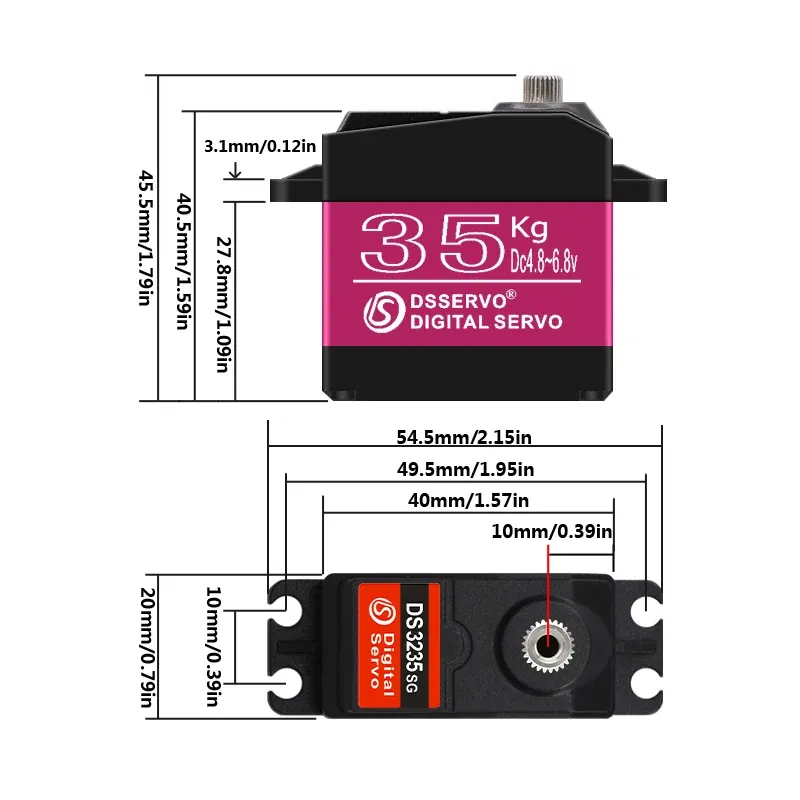

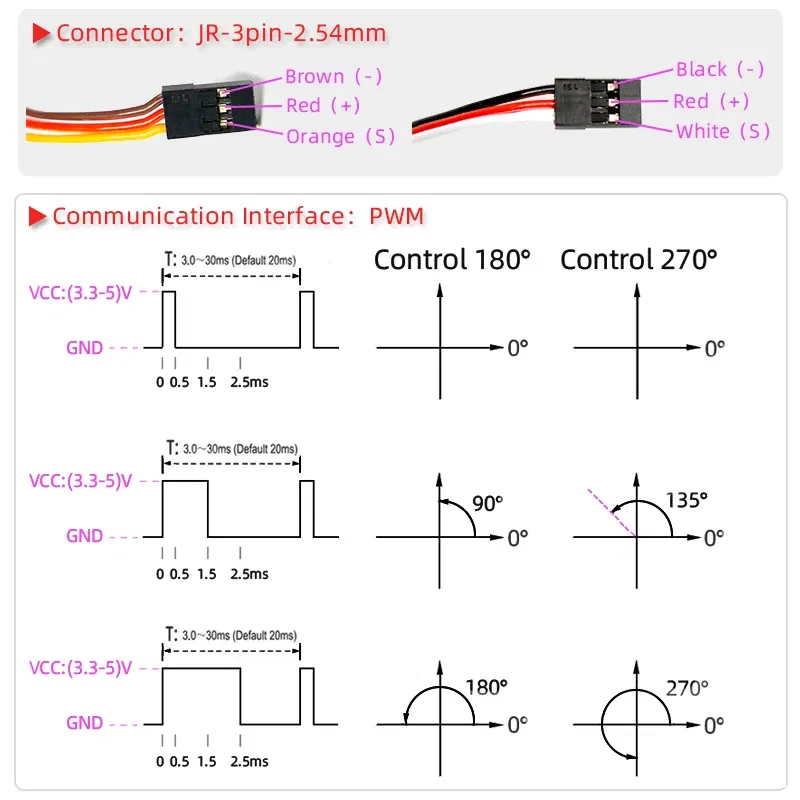

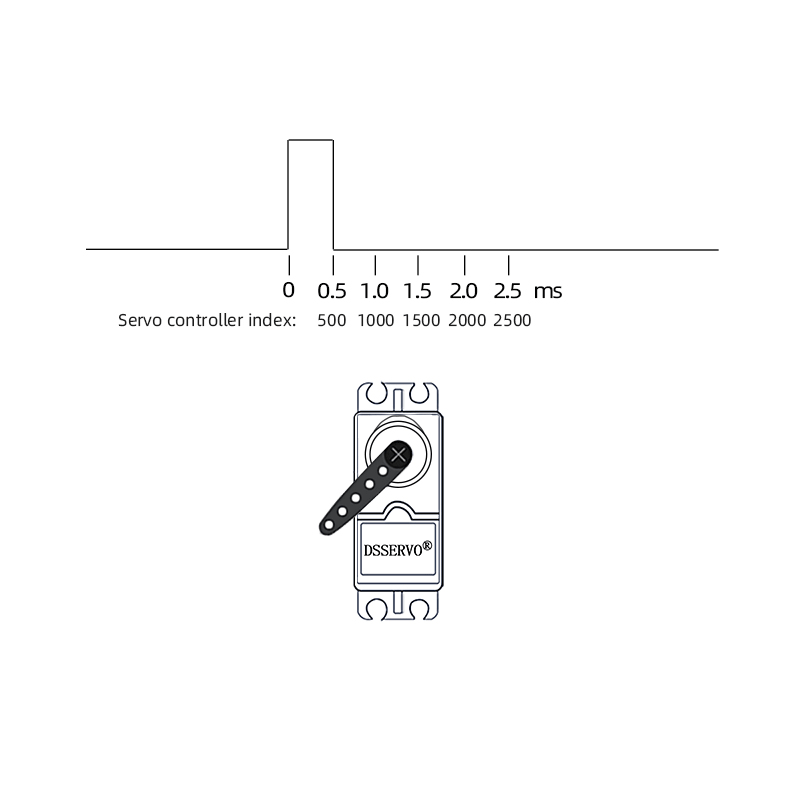

Brand:Dsservo Packing List: 4x digital servo 4x 25T adjustable metal servo arm 4x accessory bag Apply Environmental Conditon: 1.Storage Temperature Range:-30°C~80°C 2.Operating Temperature Range:-25°C~70°C Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 58g±2g 3. Limit angle: 360° 4.Bearing: 2BB 5.Horn gear spline: 25T Diameter:5.9mm 6.Case : Engineering plastics+Aluminum alloy 7.Connector wire: 320mm±5mm 8.Motor: Carbon brush motor Electrical Specification: 1.Working voltage range: 4.8 - 6.8V 2.Command signal: Pulse width modification 3.Amplifier type: Digital controller 4.Pulse width range: 500～2500usec 5.Neutral position: 1500usec 6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec) 7.Dead band width: 3 usec 8.Rotating direction Counterclockwise: (when 1000～2000usec)
|
If you need to buy a small number of servos for test, please looking for 1X links in the store!
