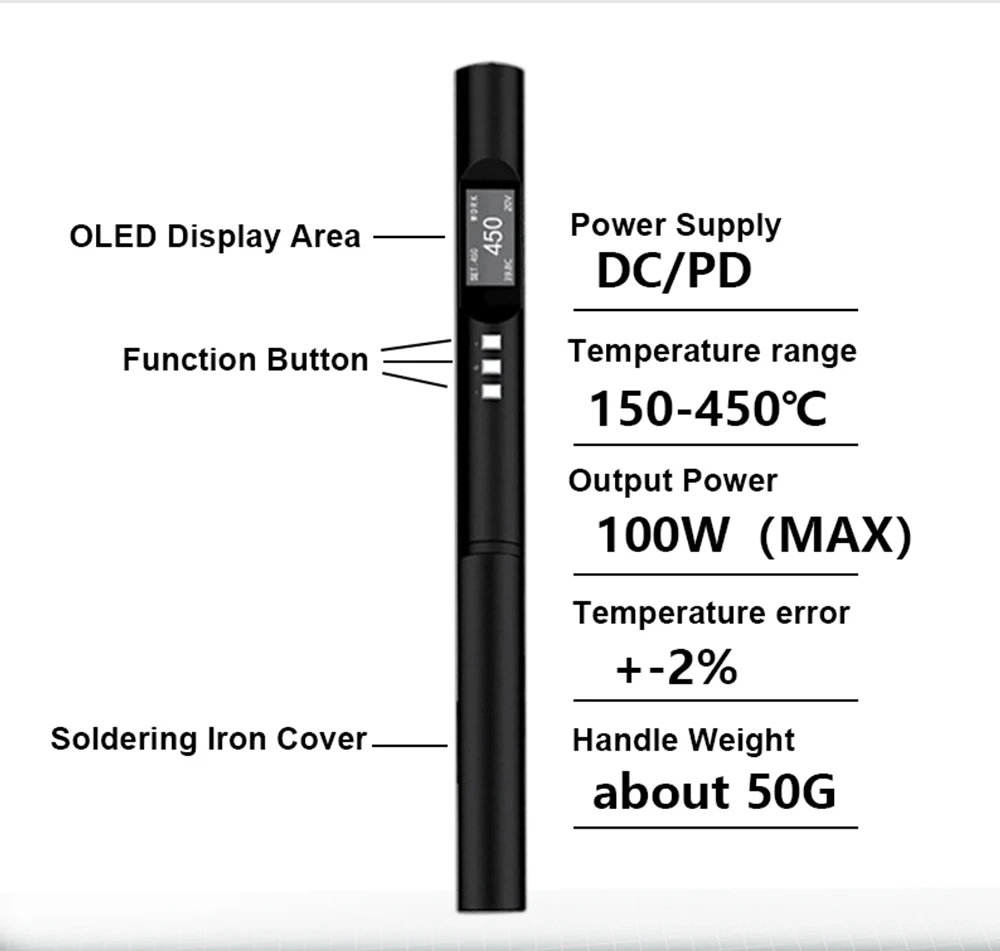

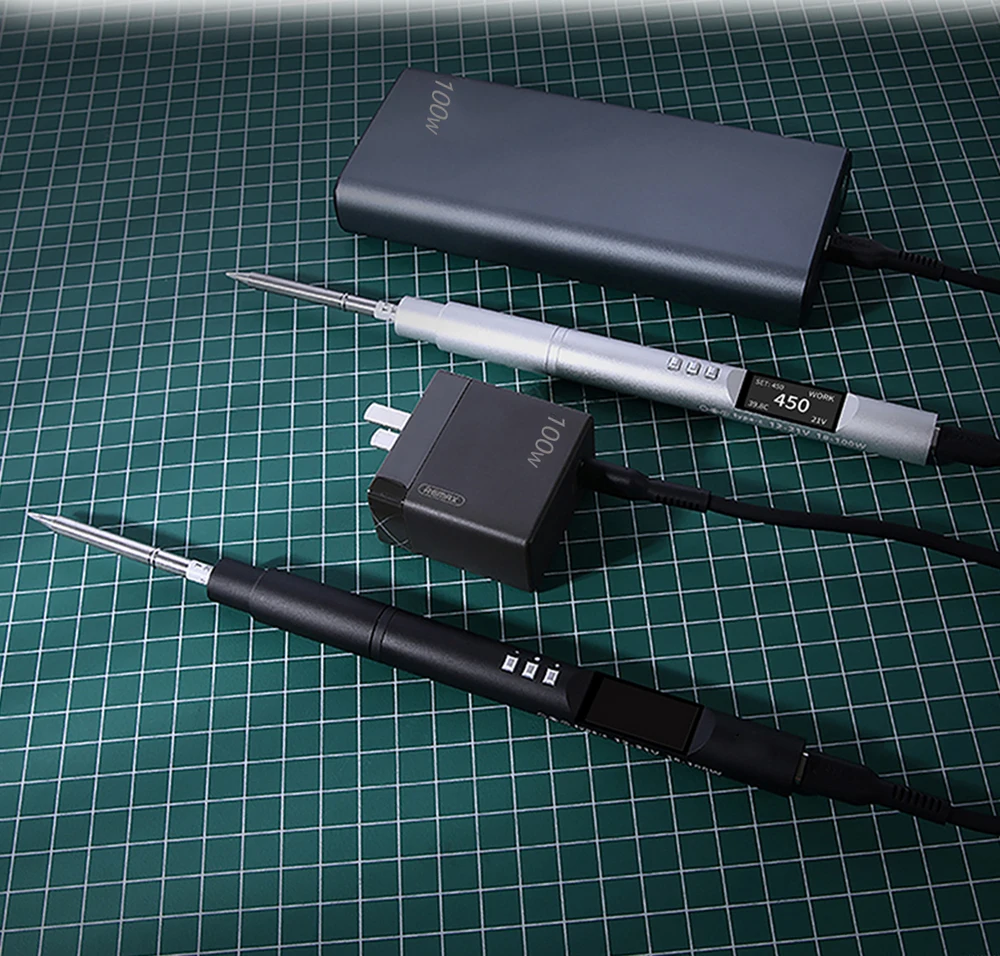

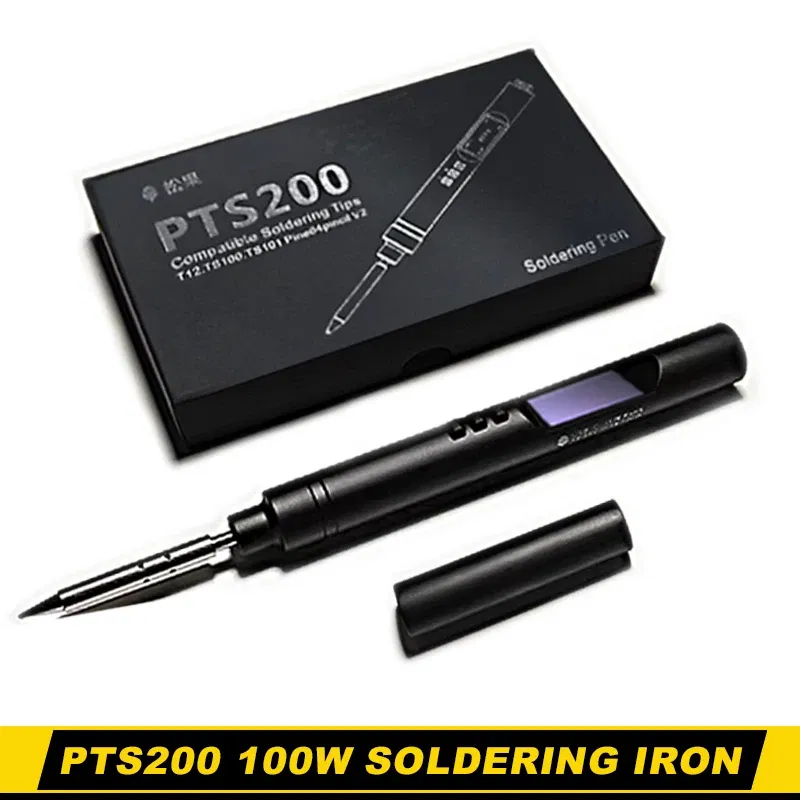

Color: Sky blue, Ships From: CHINA - PTS200 Smart Electric Soldering Iron 100W Mini Portable Fast Heating Soldering Station Universal TS101/TS100 Soldering Iron Tip

feature:

1. Supports maximum 100W power output and only takes 8 seconds to heat up to 450 degrees;

2. Support PD3.0 and QC2.0 QC3.0 protocols, widely compatible. Can be powered by fast charging head, power bank, mobile battery, etc.; supports DC power supply, which needs to be converted through DC to type-c interface;

3. The original PTS200 tip resistance is 4 ohms; it is also compatible with TS100/TS101 tips;

4. Automatic sleep function;

5. Supports one-click heating mode to make your welding work easier and more efficient;

6. CNC metal body, ergonomic design, solid and reliable, and good heat dissipation;

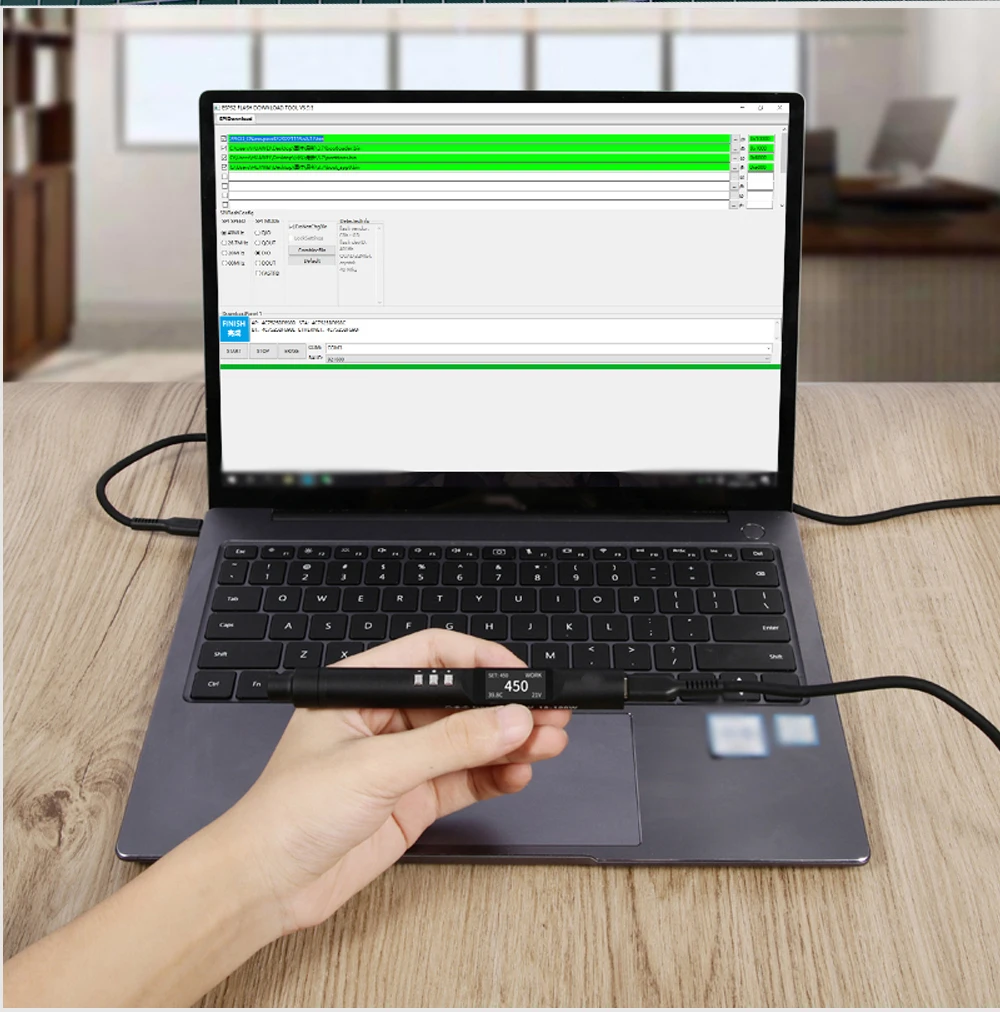

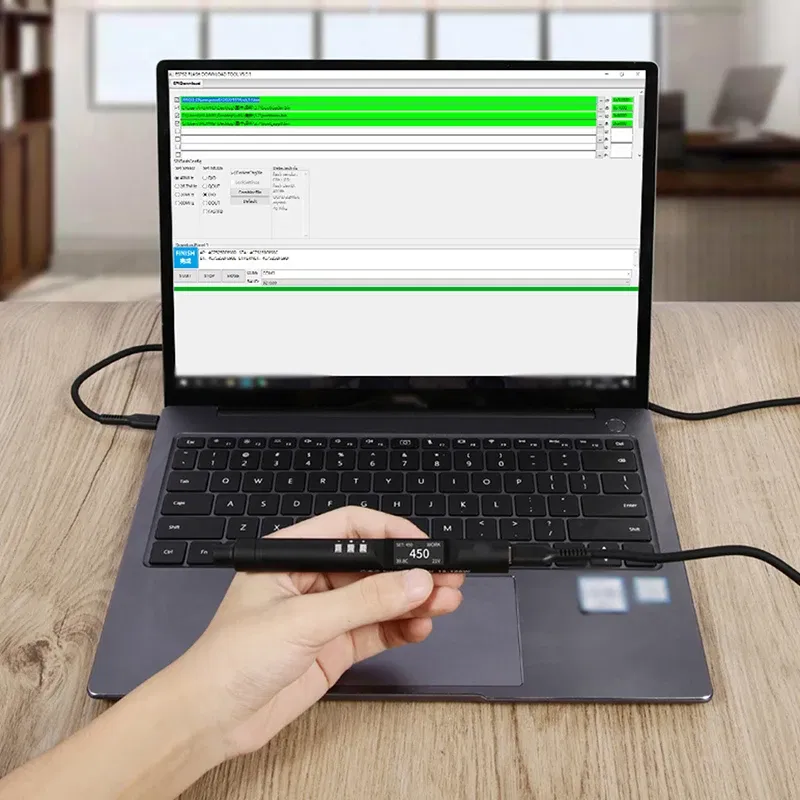

7. Firmware can be updated. Firmware address (https://github.com/Eddddddddy/Songguo-PTS200)

8. For more functions, please explore by yourself.

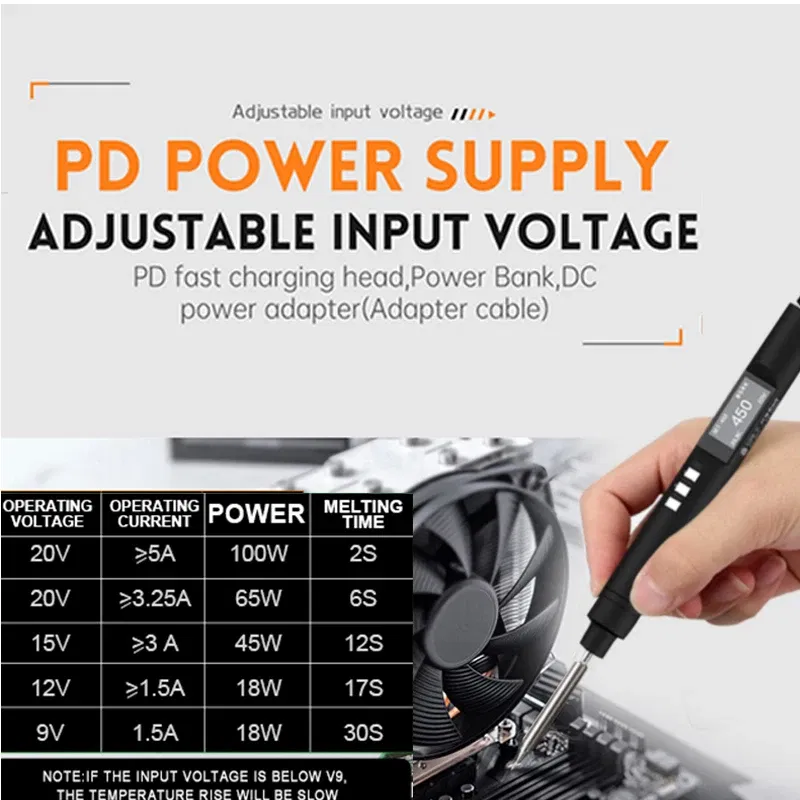

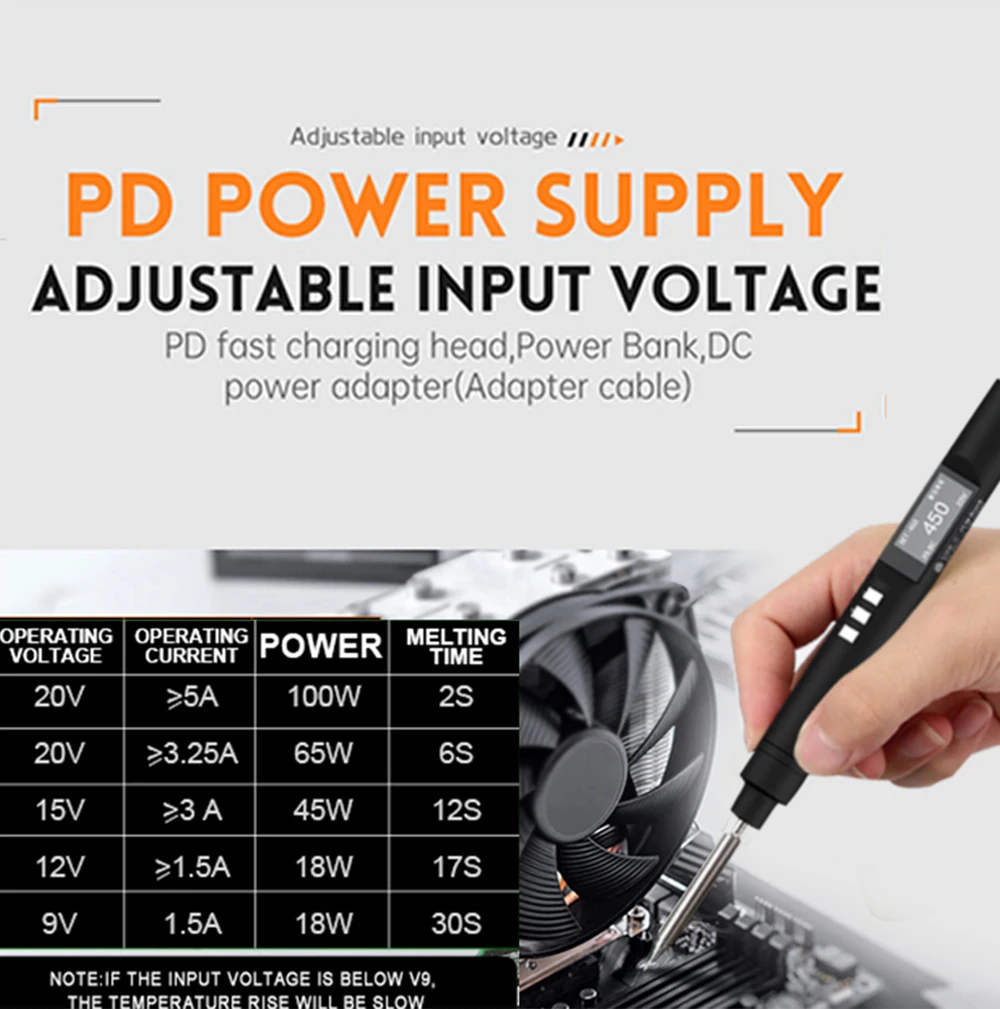

Note: The mounting tip connection is counter-threaded for rotation! ! !  We recommend using a 100W power supply to achieve the best results. Of course, if you don’t have a 100W power supply, you can also use it. If you have a 65W power supply, set the soldering iron working voltage to 20V 50%; with a 45W power supply, set the soldering iron working voltage to 15V. ;36W power supply, the working voltage of the soldering iron is set to 12V. If the power supply is not enough and the working voltage of the soldering iron is set too high, the soldering iron will keep restarting! !

PTS-BC2 Package includes:

Soldering iron control terminal*1

Soldering iron cover*1

Silicone sheath*1

4ΩTip: BC2*1

PTS-K Package includes:

Soldering iron control terminal*1

Soldering iron cover*1

Silicone sheath*1

4ΩTip: K*1

PTS-B2 Package includes:

Soldering iron control terminal*1

Soldering iron cover*1

Silicone sheath*1

4ΩTip: B2*1

PTS-I Package includes:

Soldering iron control terminal*1

Soldering iron cover*1

Silicone sheath*1

4ΩTip: I*1

PLAN 1 Package includes:

Soldering iron control terminal*1

Soldering iron cover*1

Silicone sheath*1

4ΩTip: BC2*1 K*1

PLAN 2 Package includes:

Soldering iron control terminal*1

Soldering iron cover*1

Silicone sheath*1

4ΩTip: BC2*1 K*1 B2*1

PLAN 3 Package includes:

Soldering iron control terminal*1

Soldering iron cover*1

Silicone sheath*1

4ΩTip: BC2*1 K*1 B2*1 I*1

100W EU SET Package includes:
