Color: SKY BLUE - WeAct STM32H743 STM32H743VIT6 STM32H7 STM32 Demo Board Core Board

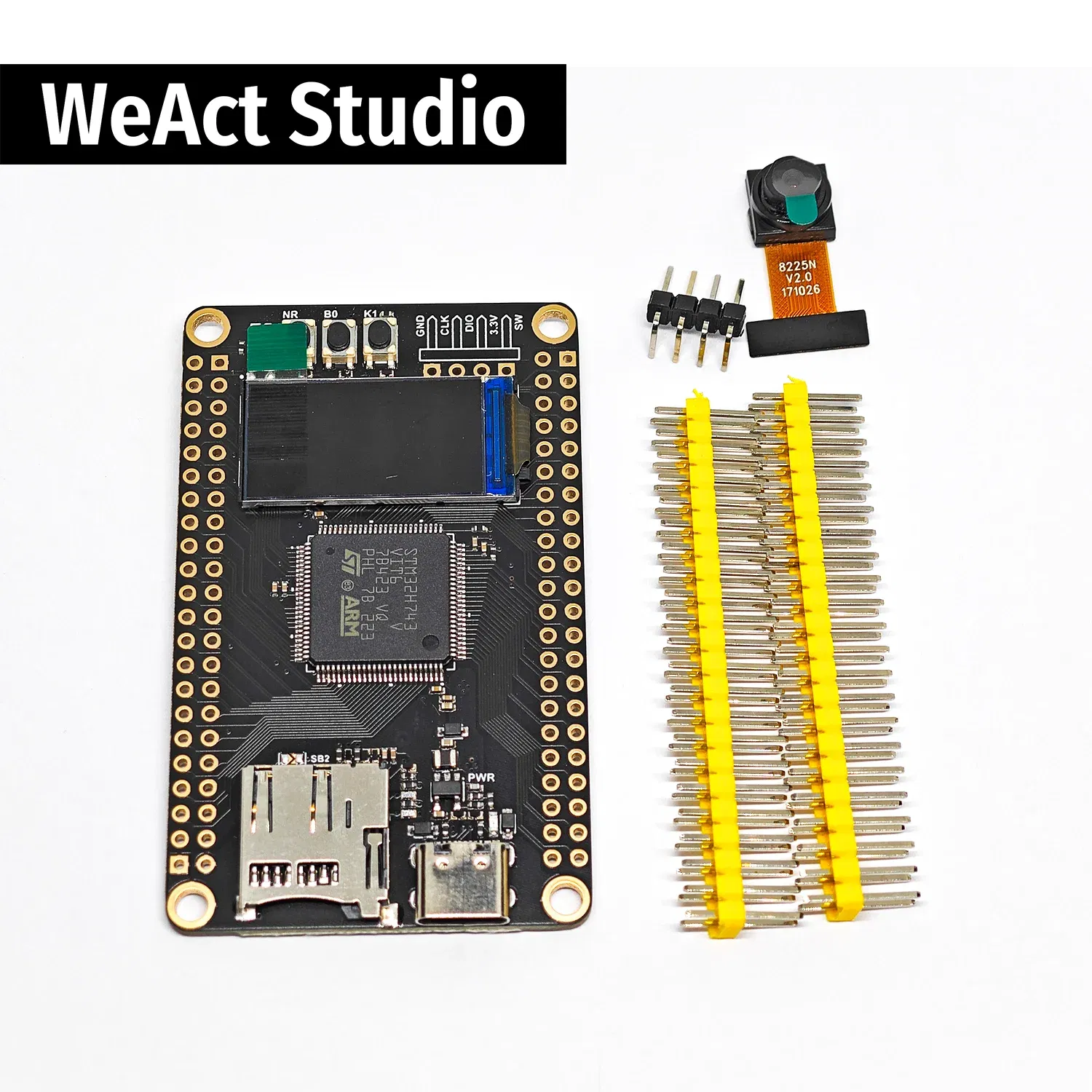

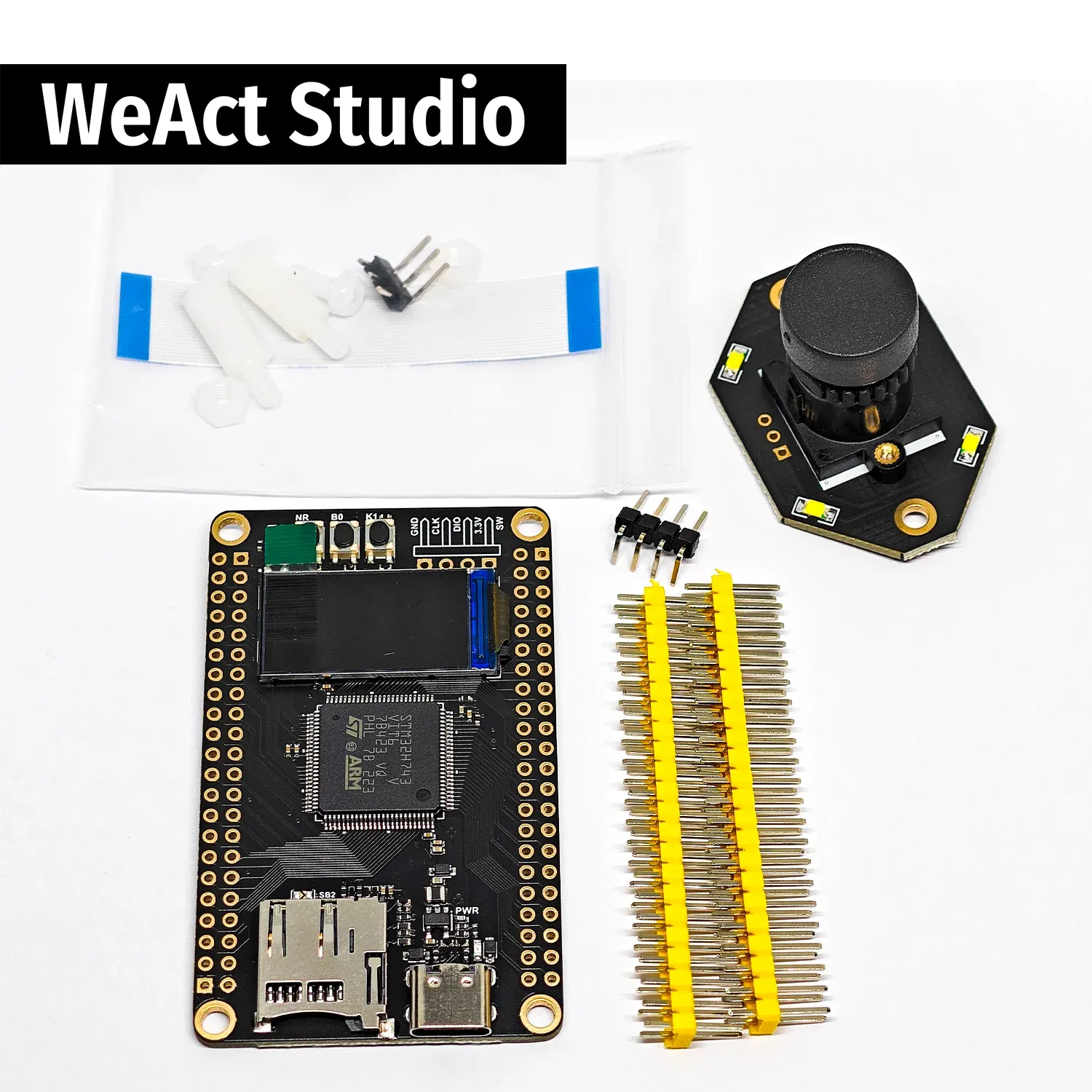

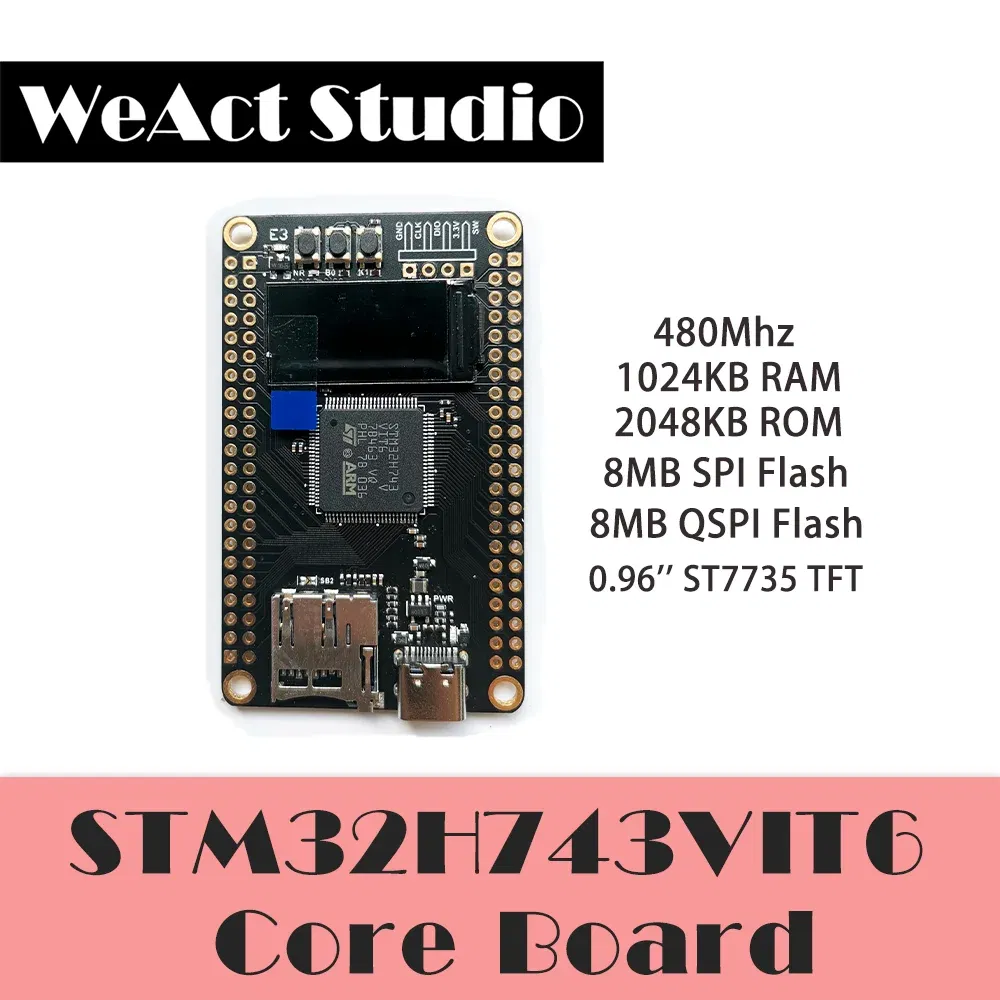

WeAct Studio STM32H743VIT6 Core Board

1. STM32H743VIT6 480Mhz, 2048KB ROM, 1MB RAM
2. ARM Cortex M7Architecture with FPU floating point unit, complete DSP instruction and memory protection unit MPU
3. 8MB SPI Flash, 8MB QSPI Flash(Executable program)
4. Gold sink TG155 plate, four layer plate design
5. Lead-free welding process is adopted
6. Use the button to set BOOT
7. Using high quality crystal vibration, metal shell, can be good vibration
8. Always use the original ST chip
9. USB C interface,Mirco SD card seat and buttons all do ESD protection, DCMI camera interface, with 1.5V and 2.8V power supply, no external transfer board, support auto focus function
10. Support for OMV4 development
11. Support C language development

DataLink

https://github.com/WeActStudio/MiniSTM32H7xx.git
