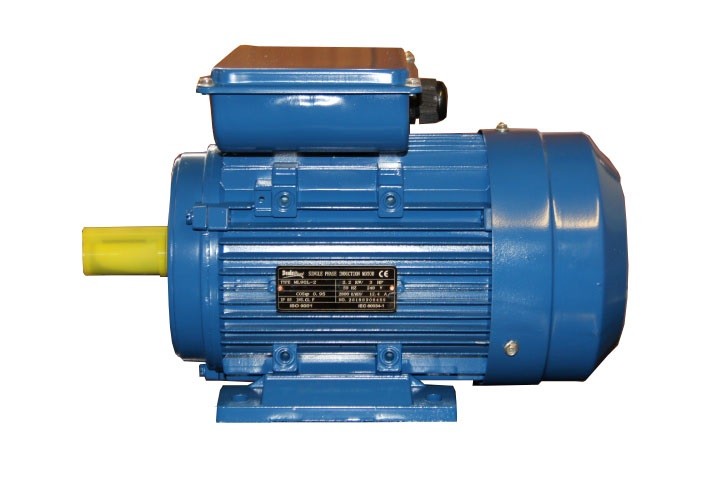

Electric Motor Single Phase 3hp 2.2kw

Description:

Description

ELECTRIC MOTOR SINGLE PHASE 3HP 2.2KW 2800RPM A

QUALITY Electric Motor single Phase

This auction is for a brand new 3 HP single phase electric motor, high run loads such as air compressors, pumps, refrigeration, Medical Equipment, Machine Tools, Small Machinery and other industrial applications.

SPECIFICATIONS:
– Model ML90L-2
– Power 3hp / 2.2kw
– Voltage Single Phase 240 volt
– Max Current 12.4 amps
– Class B3
– Speed 2 Pole / 2800rpm
– Shaft Size is 24mm
– Shaft length is 50mm
– Keyway Slot: 8mm
– Overall Body Size (excluding shaft) 295mm L x 200mm W x 225mm H.
– Baseplate Size: 152mm W x 174mm L
– Standard mountings are front to rear 100-125mm, across 140mm
– Not supplied with plug
