Description:

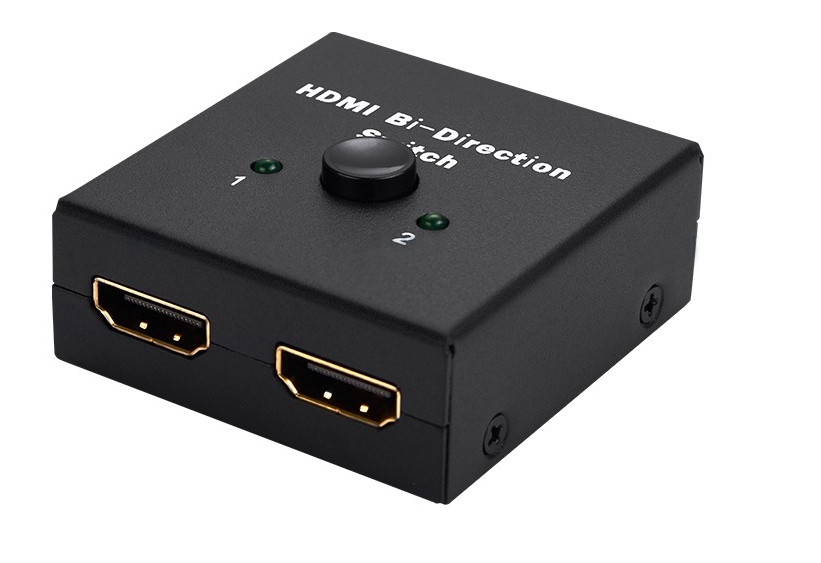

HDMI Two-Way Two-In-One-Out Switch – Effortless Switching Between Multiple Devices in NZ

Seamlessly Switch Between HDMI Devices with Ease

The HDMI Two-Way Two-In-One-Out Switch offers an efficient solution for easily switching between multiple HDMI devices without the need to constantly plug and unplug cables. This device allows you to connect two HDMI inputs to a single output, making it perfect for homes, offices, or entertainment setups in New Zealand.

With support for HD 1080p resolution and compatibility with most HDMI-enabled devices, the switch ensures clear, high-definition video and audio output for your TV, monitor, projector, or other display equipment. Whether you’re switching between a game console, laptop, set-top box, or other HDMI devices, this switch ensures a smooth and stable connection without signal degradation.

The one-button switching feature makes it user-friendly, while the compact design allows for easy placement in any media center or workspace. Additionally, it supports plug-and-play functionality, meaning no extra software or setup is required.

If you're tired of the hassle of constantly plugging in and unplugging HDMI devices, the HDMI Two-Way Two-In-One-Out Switch is the perfect solution for you. It’s ideal for home theatres, gaming setups, or office presentations, providing a seamless and organized experience.

DescriptionMaterialPlasticProduct AttributesOrdinary, ThinPackage Size60*45*20(1mm)

Installation and Safety Precautions

1.Cables must be placed well, where it would not be stepped on or pinched. Make sure HDMI cables are fully inserted into ports.

2.To provide sufficient ventilation during use, make sure there is at least 1 inch of clearance on each side of the

device (except the side where it rests on a flat surface).

3.Do not set up this product adjacent to a water source or an environment that has excessive moisture.
4.Place this product on a flat surface and keep it out of reach of children.

Package Contents

1.HDMI Bi-Direction Switch x1

2.User Manual x1

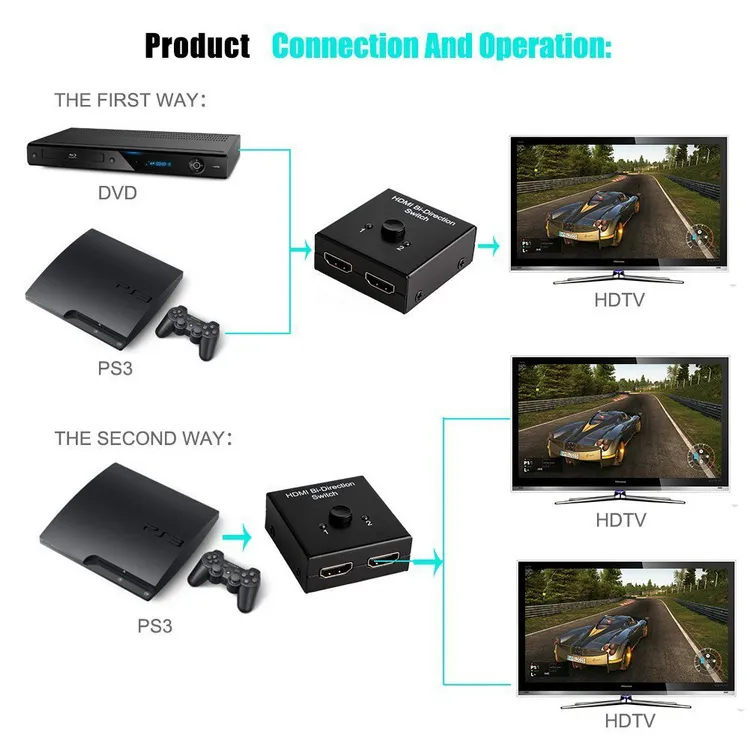

Schematic Diagram of Connection

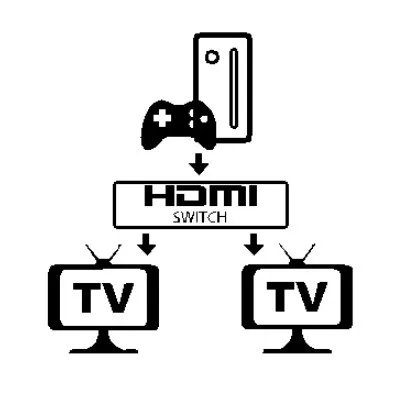

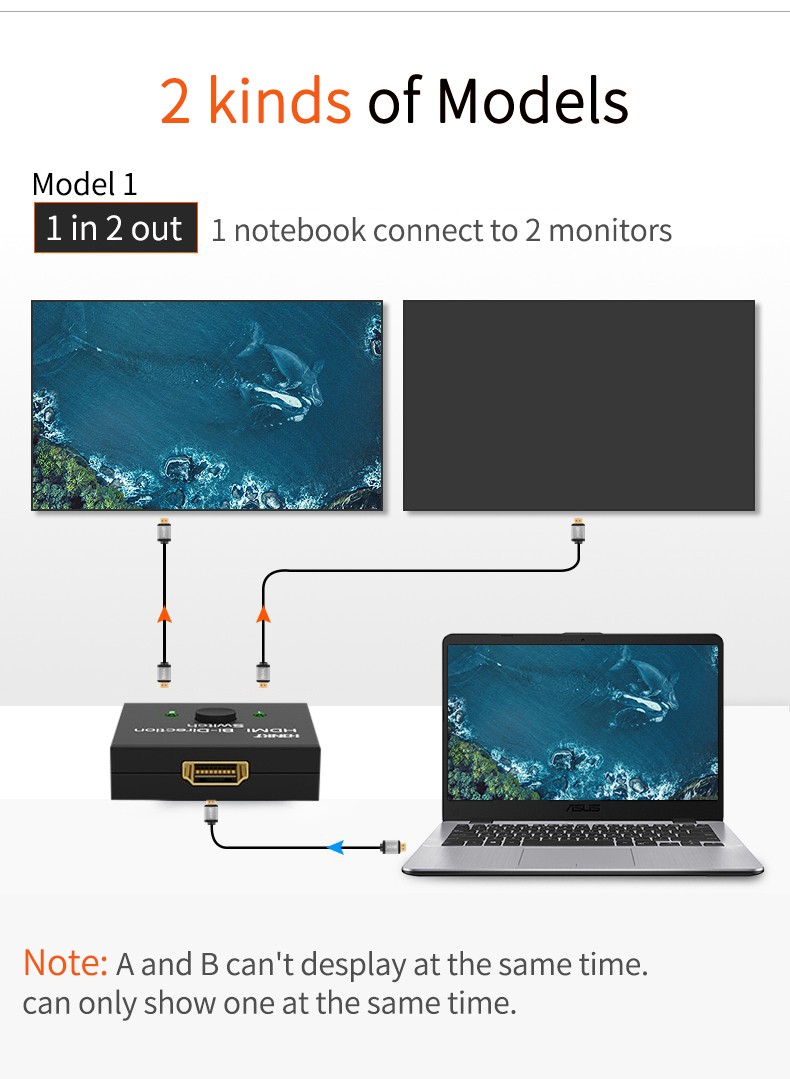

Example of 1 Input to 2 Outputs

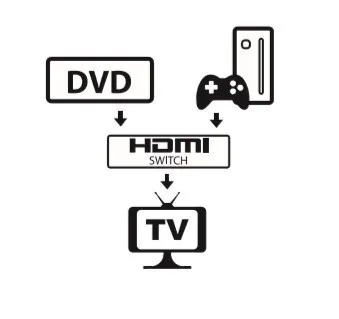

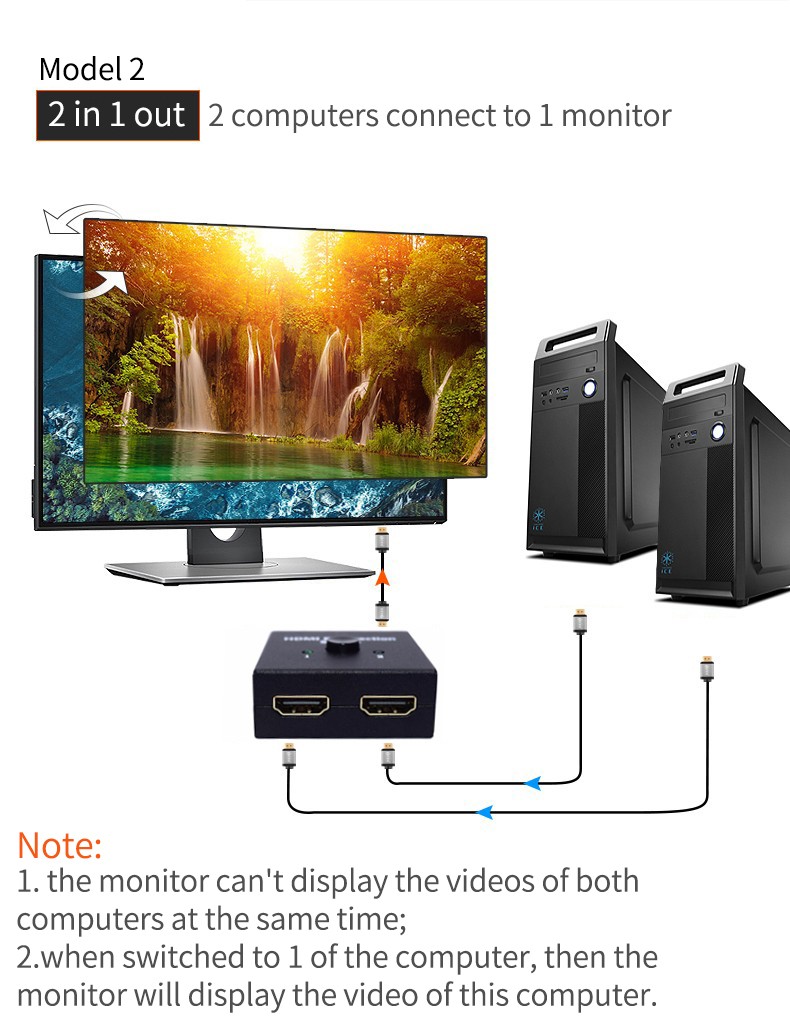

Example of 2 Inputs to 1 Outpu

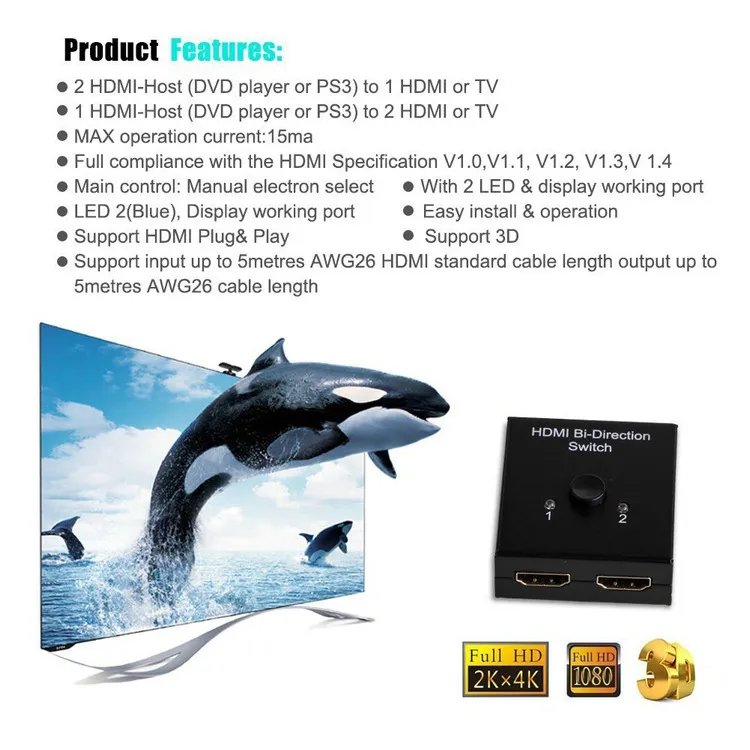

Features & Specification

*2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV

*1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV

*Power free

*MAX operation current:15ma

*Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3

*Main control: Manual electron select

*With 2 LED & display working port

*3 HDMI A/F connectors

*LED :  2 (Blue),Display working port

*Easy install & operation

*Support HDMI Plug & Play

*Support HDMI 1920 * 1080P * 60(MAX)

*Support MAX cable length:5m (total)

*Plug & Play

*Dimensions:42*50*25 mm(L,W, H)

* Weight:35g Housing: Plastic
