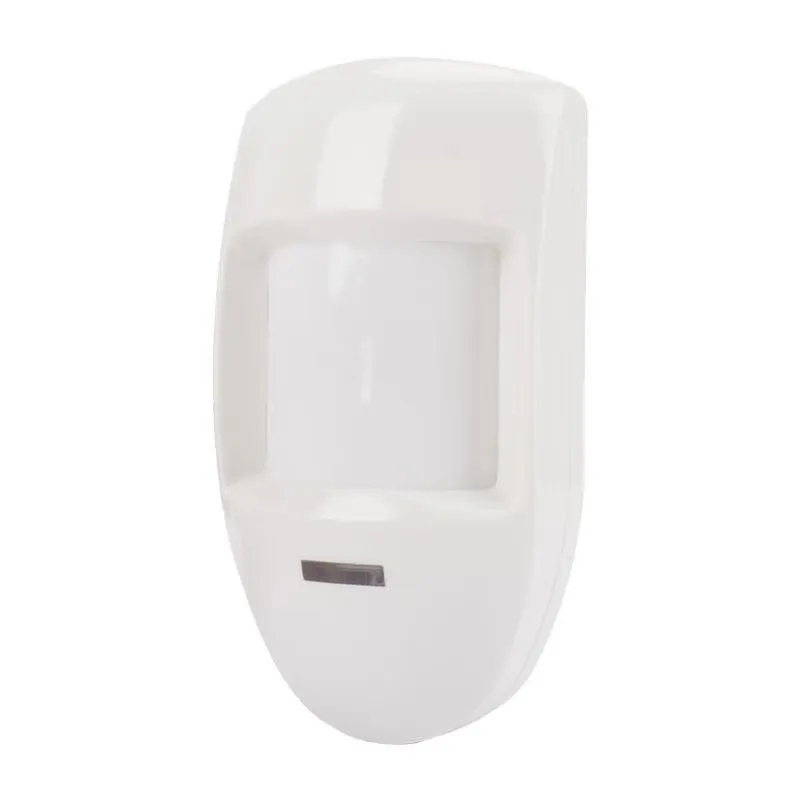

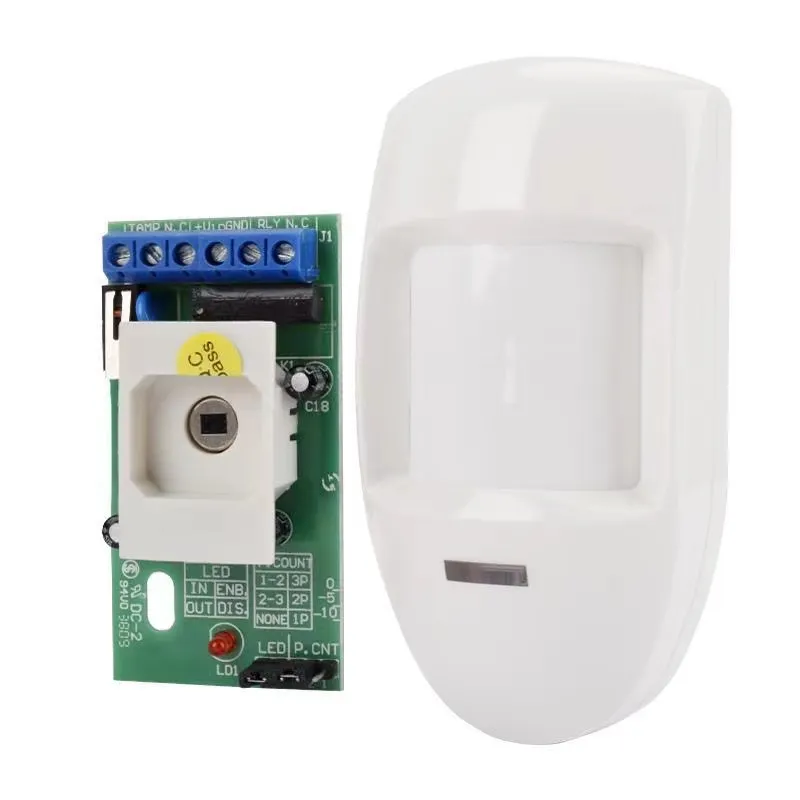

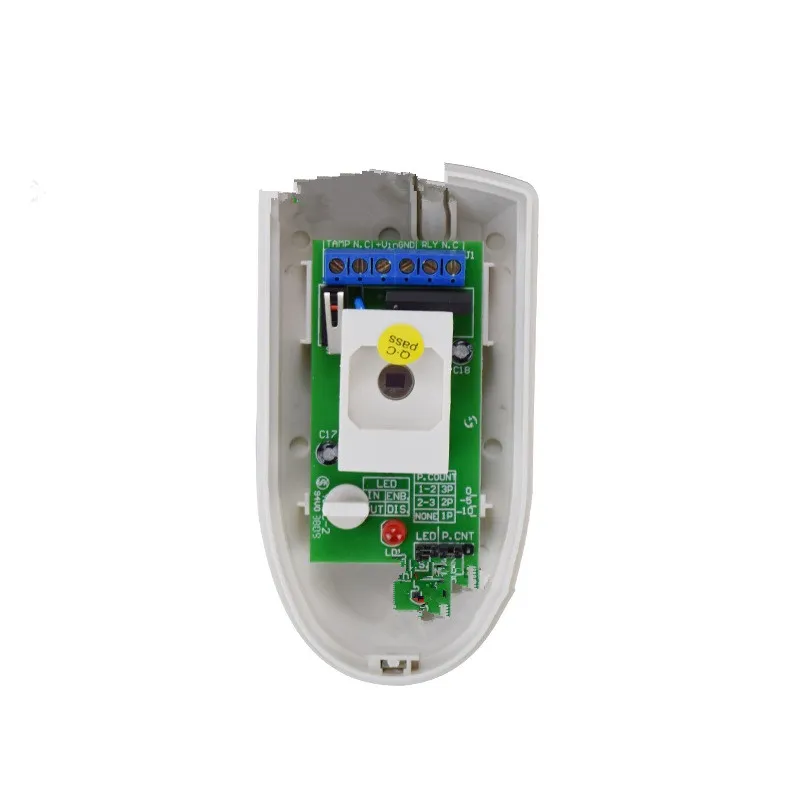

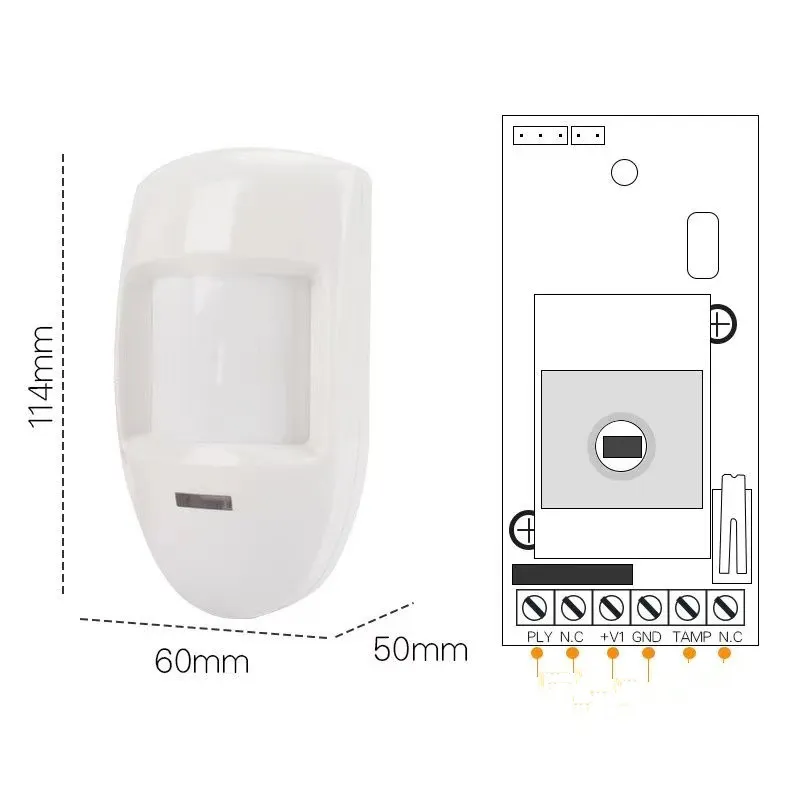

Wired Pir Motion Sensor Passive Infrared Detector Wall Mounted Warning Alarm Relay Home Security System

Description:

Product information:
Working voltage:
9—16VDC（V）
Alarm current: 17 (mA)
Detection angle: 120
Quiescent current: 15 (uA)
Working temperature: - 10 - 60 (℃)
Detection distance: 6-10 (m)
Scope of application: household, supermarket, school, bank
Type: infrared alarm detector

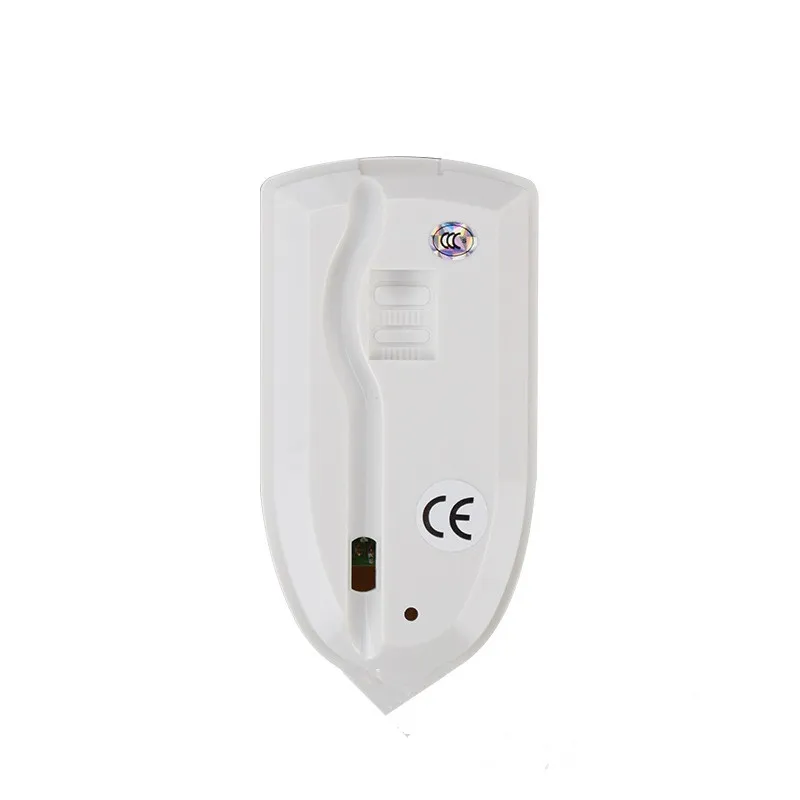

Installation method: wall-mounted
Communication mode: wired
Weight: 100 (g)
Alarm mode: NC

Packing list:

Infrared detector X1 Instruction X1
