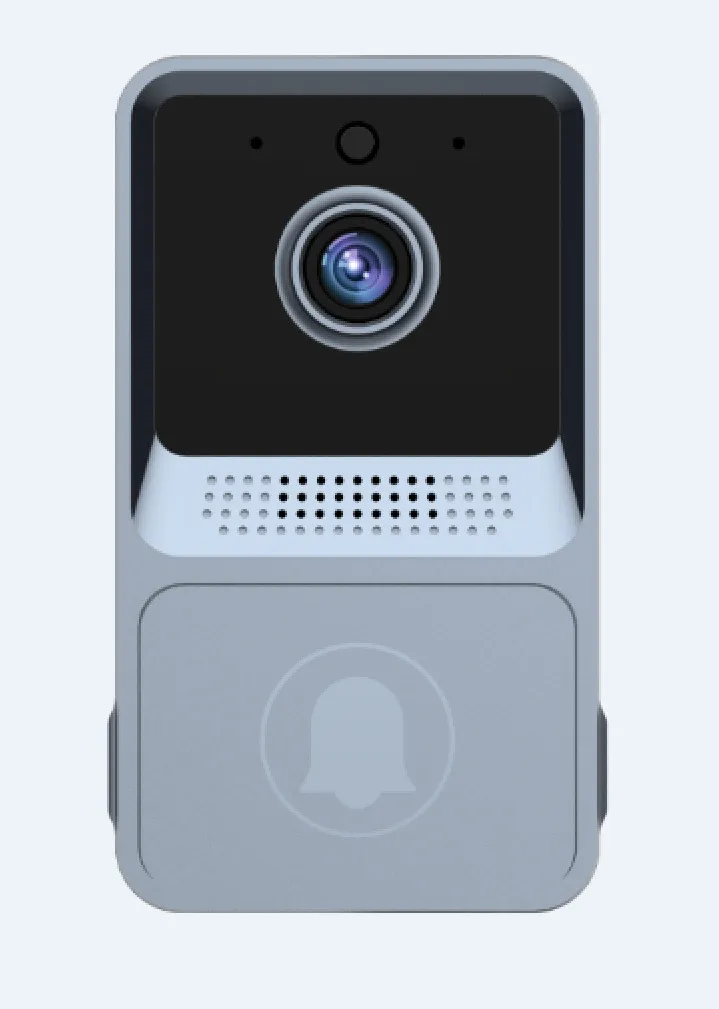

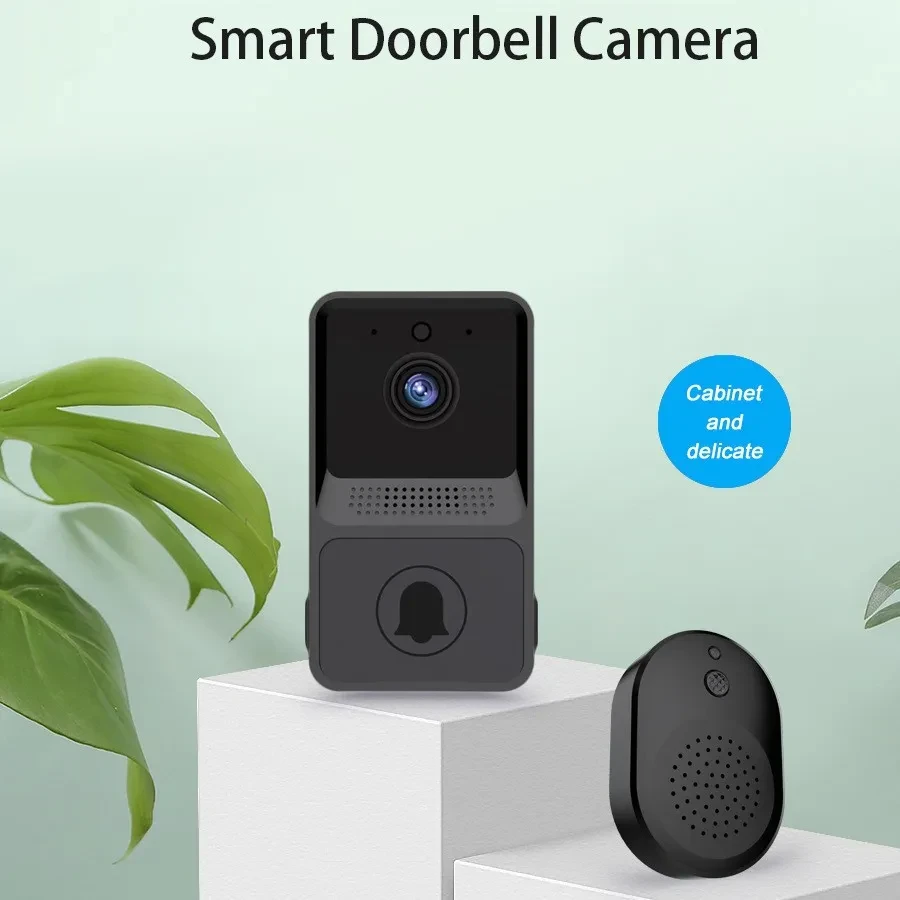

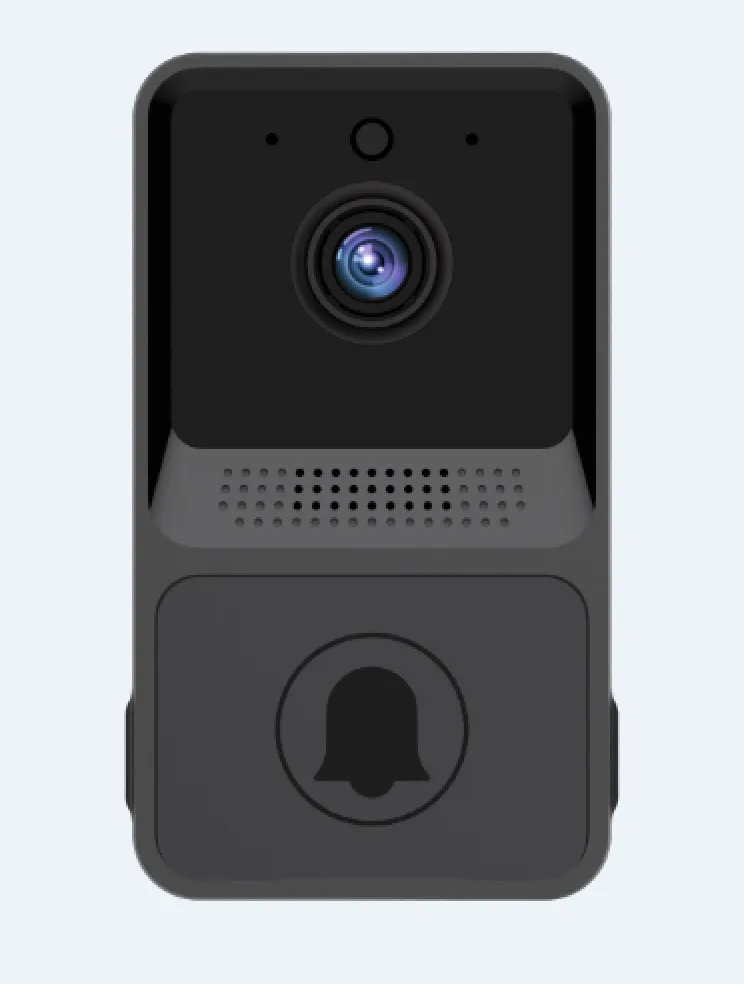

Z20 Household Wifi Intelligent Wireless Doorbell

Description:

Product information:

1. Main control: XR872
2. Memory: 32Mb flash
3. Sensor: 30W GC0328 CMOS sensor
4. Lens: 100 ° wide-angle lens
5. Signal to noise ratio: ≥ 41dB
6. Minimum illumination: 0.8Lux/F1.4 (color mode), 0.3Lux/F1.4 (black and white mode)
7. Night vision: two 850nm Φ 28Mil high-power infrared lamp night vision distance: 1m is the best, and the longest distance is 3m
8. Video format: JPG 9. Video size/frame rate: 480P/7fps
10. Recording method: 1. Press the key to trigger recording
11. Cloud storage image: 5 seconds (5 pictures)
12. Battery type/capacity: polymer 803,035/800MAH Battery discharge time: polymer battery dormant for 1 year
13. Network protocol: TCP/IP/HTTP/TCP/UDP/DHCP/DNS/DDNS/NTP/RTP/P2P
WIFI connection: 2.4GHz wifi, supporting (802.11 b/g/n)

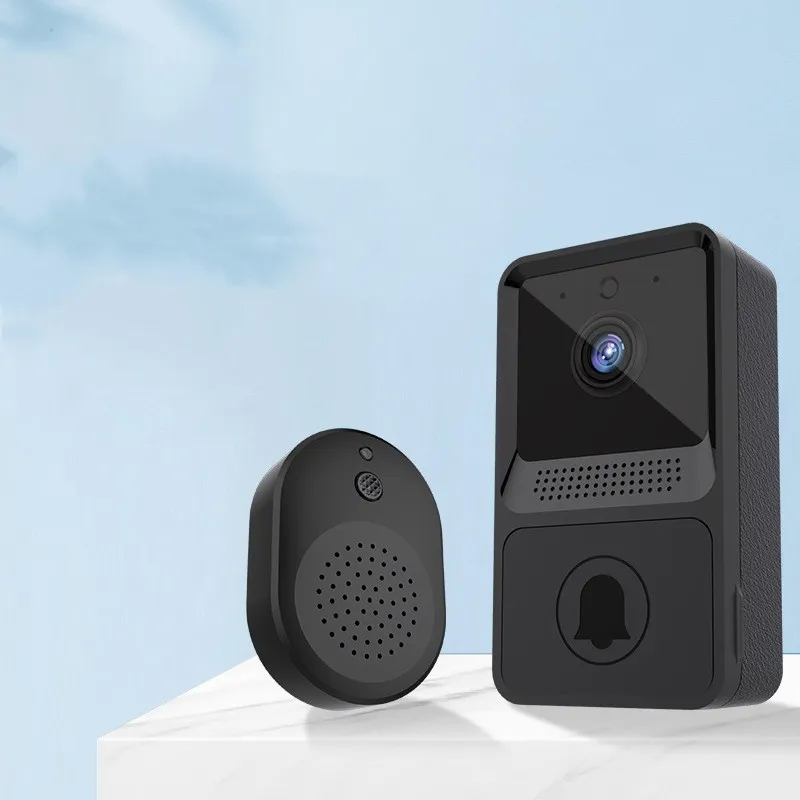

14. Ding Dong: RF 433MHZ Ding Dong is supported
15. Storage: support cloud storage function (without TF card function), 3-day free circular cloud storage“
16. Working voltage: polymer 803035/3.7V
17. Working current: working current 219mA, deep sleep current 10mA, open infrared working current 280mA
18. USB charging voltage: DC 5V/1.5A
19. Storage temperature (℃): (0 ℃～ 50 ℃)
20. Operating temperature (℃): - 10~50 ℃, operating humidity<95%

Wake up mode: 1. The doorbell button wakes up,
Rules for APP access to doorbell: 1 master account+8 shared accounts=9 users can connect to doorbell, only 3 users can preview the screen at the same time, and only one user can talk to doorbell at a time“
Purpose: Video voice call and short time video recording are available when guests visit, and the host can know the information of the visitors without opening the door
Features: Wireless connection, ultra-low power consumption, multiple accounts can be simultaneously viewed online

Packing list:

1×doorbell
