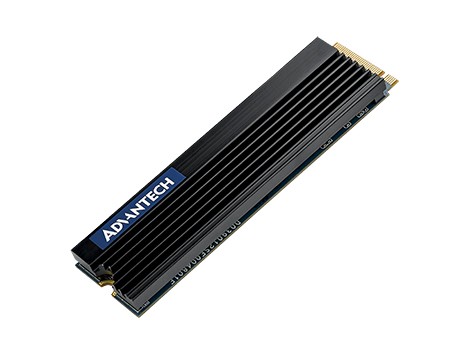

Advantech 920s M.2 NVMe Industrial TLC ECC 240GB SSD
$289.99 AUD
Approx $202.99 USD
Description:
Advantech 920s M.2 NVMe Industrial TLC ECC 240GB SSD
M.2 NVMe, 240GB Capacity. 3000MB/s Read, 1000MB/s Write, 380 TBW, BiCS3 TLC Flash. Supports Error Correction Code, Wear Leveling, Bad Block Management, Power Loss Protection, Over-Provision, and Thermal Throttling.
Specifications
NGFF M.2 2280 SSD (M key) Compliant with PCIe Gen. III x4 interface and NVMe 1.3 Support LDPC with RAID ECC TRIM、AHCI supported GUI management tool & software API package
| Form Factor | NGFF B+M Key |
| Flash Type | 3D TLC (BiCS3) |
| Transfer Mode | PCIe Gen. 3 x4 |
| Max. Power Consumption | 2A |
| Sustained R/W Performance | Read: Up to 3000MB/s Write: Up to 1000MB/s |
| Operating Temperature | Commercial Grade: 0 to +70 °C |
| Shock Resistance | 1,500 G, Peak / 0.5ms |
| Vibration Resistance | 20 G, Peak / 80 ~ 2000 Hz |
| Dimensions (mm) | 22.0 (w) x 8.0 (l) x 5.1 (h) |
Advantech 920s M.2 NVMe Industrial TLC ECC 240GB SSD
Introduction
The Advantech 920s M.2 NVMe Industrial TLC ECC 240GB SSD is a high-performance storage solution designed for industrial applications requiring reliability, speed, and endurance. Built with advanced features and robust specifications, this SSD is ideal for embedded systems, industrial automation, and mission-critical environments.
Key Features
1. High Capacity and Performance
- Capacity: 240GB
- Sequential Read Speed: Up to 3000 MB/s
- Sequential Write Speed: Up to 1000 MB/s
- Interface: PCIe Gen 3 x4
- Form Factor: M.2 2280 (M Key)
- Flash Type: 3D TLC BiCS3
2. Advanced Error Correction and Data Integrity
- Error Correction: LDPC (Low-Density Parity-Check) with RAID ECC
- Data Protection: Supports TRIM, Wear Leveling, Bad Block Management
- Security: AES-256 Encryption, TCG-OPAL Compliance
3. Robust Endurance and Reliability
- Endurance: 380 TBW (Terabytes Written)
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Shock Resistance: 1,500G peak / 0.5 ms
- Vibration Resistance: 20G peak / 80 ~ 2,000 Hz
4. Power Loss Protection and Thermal Management
- Power Loss Protection: Ensures data integrity during unexpected power outages
- Thermal Throttling: Prevents overheating to maintain optimal performance
Benefits
-
Enhanced Performance: Achieve high-speed data transfer rates, improving system responsiveness and efficiency.
- Data Integrity: Advanced error correction and data protection features ensure reliable storage.
- Durability: Built to withstand harsh industrial conditions, ensuring long-term reliability.
- Security: AES-256 encryption and TCG-OPAL compliance provide robust data security.
- Energy Efficiency: Low power consumption contributes to energy savings in industrial applications.
Why Choose the Advantech 920s M.2 NVMe Industrial TLC ECC 240GB SSD?
Opting for the Advantech 920s SSD means investing in a storage solution that combines speed, reliability, and durability. Whether you're upgrading existing systems or designing new industrial applications, this SSD offers the performance and resilience needed to meet the demands of modern industrial environments.
