Description:

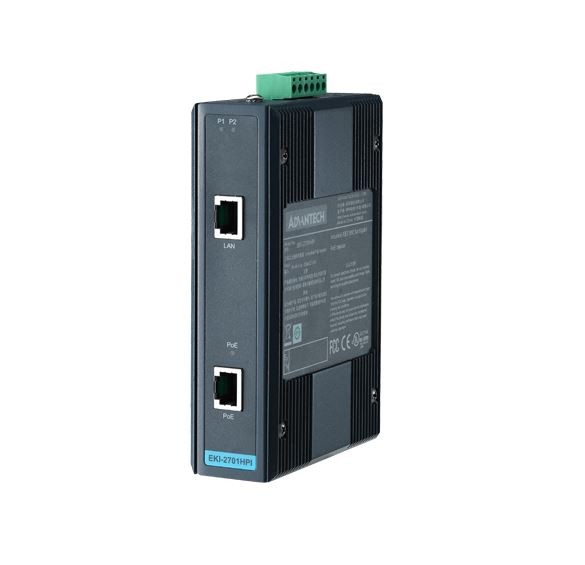

Advantech EKI-2701HPI 1GbE PoE Injector 24-48VDC Input -40~75C

Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN Power input (24 ~ 48 VDC), inject 30 W for each port Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism

Specifications

Advantech EKI-2701HPI 1GbE PoE Injector (24–48VDC Input, -40~75°C)

1. Product Description

The Advantech EKI-2701HPI is a high-performance, industrial-grade Power over Ethernet (PoE) injector designed to deliver both data and electrical power to Ethernet-enabled devices through a single cable. Compliant with IEEE 802.3af/at standards, it supports Gigabit Ethernet speeds (10/100/1000Base-T) and provides up to 30 watts of power to connected devices such as IP cameras, wireless access points, and VoIP phones.

Built to withstand harsh industrial environments, the EKI-2701HPI operates within a wide temperature range of -40°C to 75°C, making it suitable for outdoor installations and demanding applications. Its robust design includes redundant power inputs (24~48VDC), ensuring continuous operation even in the event of a power failure.

2. Key Points

• IEEE 802.3af/at Compliant: Supports both IEEE 802.3af and IEEE 802.3at standards, delivering up to 30W of power over Ethernet.

• Gigabit Ethernet Support: Provides 10/100/1000Base-T (X) connectivity for high-speed data transmission.

• Wide Operating Temperature Range: Operates reliably in temperatures ranging from -40°C to 75°C, suitable for outdoor and industrial applications.

• Redundant Power Inputs: Dual 24~48VDC power inputs with reverse polarity protection and overload current fuse for enhanced reliability.

• Compact and Durable Design: Slim form factor with an IP30-rated metal enclosure, designed for DIN-rail or wall mounting.

• LED Indicators: Equipped with LED indicators for power status, PoE status, and link/activity, facilitating easy monitoring and troubleshooting.


3. Benefits

• Enhanced Network Reliability: Redundant power inputs and robust design ensure continuous operation, reducing the risk of downtime.

• High-Speed Connectivity: Gigabit Ethernet support enables fast data transmission, ideal for bandwidth-intensive applications.

• Versatile Installation Options: DIN-rail and wall mounting options provide flexibility in installation, accommodating various setups.

• Wide Temperature Tolerance: The wide operating temperature range allows for deployment in diverse environments, including outdoor and industrial settings.

• Easy Monitoring and Maintenance: LED indicators simplify monitoring and troubleshooting, facilitating quick identification of issues.


4. Why Choose the Advantech EKI-2701HPI?

The Advantech EKI-2701HPI stands out as a reliable and efficient networking solution for industrial applications. Its combination of high-speed connectivity, PoE capabilities, and rugged design makes it an excellent choice for businesses seeking to enhance their network infrastructure. Whether for surveillance systems, wireless access points, or other PoE-enabled devices, this injector ensures seamless operation and minimal downtime.
