Description:

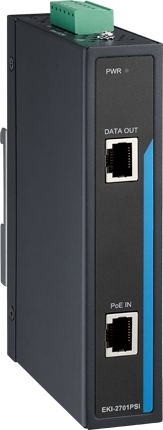

Advantech EKI-2701PSI 1GbE PoE Splitter 44-57VDC Wide-Temp

Supports 10/100/1000Base-T(X) for Power over Ethernet (PoE) input and data output. Delivers up to 12.95 watts of power while separating power and data from PoE sources. Features power isolation and short-circuit protection for enhanced power output safety. Provides 3,000 VDC EFT (Electrical Fast Transient) protection for power lines. Supports 6,000 VDC ESD (Electrostatic Discharge) protection for Ethernet ports. Wide operating temperature range: -40°C to 75°C, suitable for harsh environments Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions

Specifications

Advantech EKI-2701PSI 1GbE PoE Splitter (44–57VDC Input, Wide-Temperature Range)

1. Product Description

The Advantech EKI-2701PSI is a high-performance industrial Power over Ethernet (PoE) splitter designed to separate power and data from a PoE source, delivering both to Ethernet-enabled devices. Compliant with IEEE 802.3af standards, it supports Gigabit Ethernet speeds (10/100/1000Base-T) and operates within a wide input voltage range of 44–57VDC. This splitter is engineered to function reliably in harsh environments, with an operating temperature range of -40°C to 75°C, making it suitable for various industrial applications.

2. Key Features

• PoE Input and Data Output: Supports 10/100/1000Base-T(X) for PoE input and data output, facilitating seamless integration into existing networks.

• IEEE 802.3af Compliance: Compliant with IEEE 802.3af standards, ensuring compatibility with a wide range of PoE-enabled devices.

• Wide Input Voltage Range: Accepts input voltages between 44VDC and 57VDC, providing flexibility in power sourcing.

• Power Output: Delivers up to 12.95W at 24VDC, suitable for powering devices such as IP cameras, wireless access points, and VoIP phones.

• Wide Operating Temperature Range: Operates reliably in temperatures ranging from -40°C to 75°C, making it ideal for outdoor and industrial environments.

• Robust Protection Features: Equipped with power isolation and short-circuit protection to safeguard connected devices.

• Compact Design: Features a slim form factor with DIN-rail and wall-mountable options, facilitating easy installation in space-constrained areas.


3. Benefits

• Enhanced Network Flexibility: Enables the use of PoE-enabled devices in locations without nearby power outlets, simplifying installation and reducing cable clutter.

• Reliable Performance in Harsh Environments: The wide operating temperature range ensures consistent performance in challenging conditions.

• Cost-Effective Solution: By separating power and data from a single PoE source, the splitter reduces the need for additional power supplies, lowering overall system costs.

• Easy Installation: The compact design and versatile mounting options allow for straightforward integration into existing network infrastructures.

• Improved Device Protection: Built-in protection features help prevent damage to connected devices, enhancing system reliability.


4. Why Choose the Advantech EKI-2701PSI?

The Advantech EKI-2701PSI stands out as a reliable and efficient networking solution for industrial applications. Its combination of PoE support, wide input voltage range, and rugged design makes it an excellent choice for businesses seeking to enhance their network infrastructure. Whether for surveillance systems, wireless access points, or other PoE-enabled devices, this splitter ensures seamless operation and minimal downtime.
