Description:

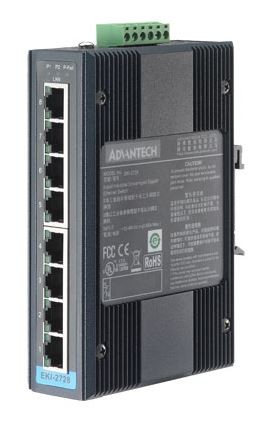

Advantech EKI-2728 8-Port Unmanaged GBE Ethernet

The EKI-2728 supports Gigabit Ethernet. The power is a +12V ~ 48VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2728 will automatically get back to normal operation state.

Specifications

Advantech EKI-2728 8-Port Unmanaged GbE Ethernet Switch

1. Product Description

The Advantech EKI-2728 is an industrial-grade unmanaged Gigabit Ethernet switch designed to meet the rigorous demands of industrial networking environments. With eight 10/100/1000Base-TX ports, this switch offers high-speed data transmission and seamless integration into various network infrastructures. Its compact form factor and robust design make it ideal for applications in automation, transportation, and other industrial sectors.

Key Features:

• 8 Gigabit Ethernet Ports: Equipped with eight RJ45 ports, the EKI-2728 supports auto MDI/MDI-X, allowing for easy connection without the need for crossover cables.

• Auto Negotiation: The switch automatically detects and adjusts to the optimal speed (10/100/1000Mbps) for each connected device, ensuring efficient data transfer.

• Jumbo Frame Support: Capable of handling jumbo frames up to 9K bytes, making it suitable for high-bandwidth applications like video surveillance and large data transfers.

• Redundant Power Input: Supports dual 12~48VDC power inputs with reverse polarity protection and overload current fuse, ensuring continuous operation even in case of power failures.

• Relay Output for Power Failure Alarm: Provides a relay output to signal power failure events, enhancing network reliability.

• IP30 Metal Enclosure: The slim, rugged metal housing offers durability and protection in industrial environments.

• DIN-Rail and Wall Mountable: Flexible mounting options allow for easy installation in various settings.


2. Key Points

• High-Speed Connectivity: Offers Gigabit Ethernet speeds, accommodating high data throughput requirements.

• Industrial Durability: Designed to withstand harsh industrial conditions with its IP30-rated metal enclosure.

• Flexible Installation: Can be mounted on DIN rails or walls, providing versatility in deployment.

• Power Reliability: Dual power inputs with protection mechanisms ensure uninterrupted operation.

• Easy Troubleshooting: LED indicators and relay output facilitate quick detection of issues.


3. Benefits

• Enhanced Network Performance: The switch's Gigabit capabilities ensure fast and reliable data transmission, supporting bandwidth-intensive applications.

• Reduced Downtime: Redundant power inputs and alarm features minimize the risk of network outages.

• Cost-Effective Solution: As an unmanaged switch, it offers a plug-and-play setup without the need for complex configurations.

• Space-Saving Design: Its compact size makes it suitable for installations where space is limited.

• Long-Term Reliability: Built to operate in challenging environments, ensuring longevity and stable performance.


4. Why Choose the Advantech EKI-2728?

The Advantech EKI-2728 stands out as a reliable and efficient networking solution for industrial applications. Its combination of high-speed connectivity, robust design, and user-friendly features makes it an excellent choice for businesses seeking to enhance their network infrastructure. Whether for factory automation, surveillance systems, or other industrial applications, this switch delivers performance and reliability.
