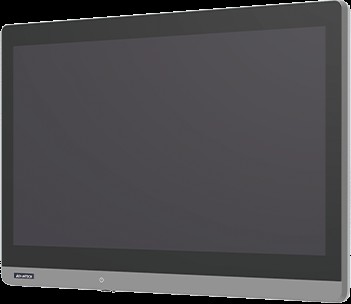

Advantech PAX-121G-C2A-LMC Multimodal Clinical Display 21.5" Touch
$2,299.99 AUD
Approx $1,609.99 USD
Description:
Advantech PAX-121G-C2A-LMC Multimodal Clinical Display 21.5" Touch
Specifications
| Screen Size | 21.53'' |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 0.672916667 |
| Pixel Pitch | 0.08265 x 0.24795mm |
| Viewing Angle | 178°/ 178° |
| Contrast Ratio | 1000 : 1 |
| Native Luminance | 250 cd/m2 |
| Colour Depth | 16.7 Million (6-bit + A-FRC) |
| Display Mode | Transmissive mode, normally black |
| Response Time | 14 msec (Typ, on/off) |
| Touchscreen | Optional 10-point PCAP |
| Backlight | LED |
| Interface | 1x DP 1.2 Input DP Jack 1x HDMI 1.4 Input HDMI Jack 1x DVI Input DVI Jack 1x USB-B 1x Audio Input 1x Audio Jack |
| Power Rating | DC 12V, 5A max |
| Operating Temperature | 0~40° C |
| IP Ratings | Front IP65 / System IPX1, Optional for IP54 |
| VESA Mount | 100 x 100; 75 x 75 |
| Dimensions (W x D x H) | 524 x 357 x 58 mm |
| Weight | 5.5kg |
| Enclosure Colour | Gray |
| Certifications | CCC,CE, FCC Class B |
Advantech PAX-121G-C2A-LMC 21.5" Multimodal Clinical Display with Touchscreen
Introduction
The Advantech PAX-121G-C2A-LMC is a 21.5-inch multimodal clinical display designed to meet the stringent requirements of modern healthcare environments. With its high-resolution touchscreen, fanless design, and medical-grade certifications, this display is tailored for applications such as patient monitoring, diagnostic imaging, and surgical support.
Key Features
High-Resolution Touchscreen
Equipped with a 21.5-inch Full HD (1920x1080) resolution screen, the PAX-121G-C2A-LMC ensures crisp and clear visuals. The 10-point multi-touch functionality allows for intuitive interaction, making it suitable for both clinical staff and patients.
Fanless Design
The fanless architecture of this display minimizes noise and reduces the risk of airborne contaminants, contributing to a quieter and cleaner clinical environment.
Medical-Grade Certifications
Compliant with IEC/EN 60601-1-2 EMC, IEC/EN 60601-1 MDR, and UL60601-1 standards, the PAX-121G-C2A-LMC meets the rigorous safety and electromagnetic compatibility requirements essential for medical devices.
Versatile Connectivity
The display offers multiple input options, including DisplayPort, HDMI, USB, and VGA, ensuring compatibility with a wide range of medical equipment and systems.
Optional IP54-Rated Protection
For environments requiring enhanced hygiene and infection control, the PAX-121G-C2A-LMC can be upgraded to feature IP54-rated protection, safeguarding against dust and water ingress.
Benefits
-
Enhanced Visual Clarity: The Full HD resolution provides detailed images, crucial for accurate diagnostics and monitoring.
-
Improved Hygiene: The fanless design and optional IP54 protection contribute to a cleaner and more hygienic environment.
-
Compliance Assurance: Adherence to medical-grade certifications ensures the display meets the necessary safety and
performance standards.
-
Flexible Integration: Multiple connectivity options facilitate seamless integration with existing medical systems.
- User-Friendly Interface: The touchscreen interface simplifies interactions, enhancing user experience.
Why Choose the Advantech PAX-121G-C2A-LMC?
Selecting the Advantech PAX-121G-C2A-LMC means opting for a display that combines advanced technology with medical-grade reliability. Its high-resolution touchscreen, coupled with a fanless design and multiple connectivity options, makes it a versatile choice for various clinical applications. The optional IP54-rated protection further enhances its suitability for environments where hygiene is paramount.
Conclusion
The Advantech PAX-121G-C2A-LMC 21.5" multimodal clinical display stands out as a reliable and versatile solution for modern healthcare settings. Its combination of high-resolution visuals, medical-grade certifications, and user-friendly features makes it an excellent choice for institutions aiming to enhance their clinical operations.
