Description:

Advantech WISE-4050/LAN: 4-Channel Digital Input and Output IoT Ethernet I/O Module

Introduction

The Advantech WISE-4050/LAN is a compact and robust Ethernet-based I/O module designed for Industrial Internet of Things (IIoT) applications. It features 4 digital inputs (DI) and 4 digital outputs (DO), making it ideal for monitoring and controlling industrial equipment remotely. With support for Modbus/TCP, RESTful APIs, and HTML5 web configuration, it offers seamless integration into existing networks and systems.

Key Features

• 4 Digital Inputs (DI): Supports both dry contact (0: open, 1: close) and wet contact (0: 0~3V, 1: 10~30V) logic levels.

• 4 Digital Outputs (DO): Provides TTL-level outputs with 4,200 VDC isolation protection.

• Wide Operating Voltage: Operates on 10~30 VDC with reverse polarity protection.

• Industrial-Grade Protection: Features 4,200 VDC isolation protection for both inputs and outputs.

• Protocols Supported: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT.

• Web Configuration: HTML5-based web interface allows for easy configuration via mobile devices without the need for additional software.

• Data Logging: Built-in data logger with real-time clock (RTC) timestamping; supports up to 10,000 samples.

• Cloud Integration: Data can be pushed to cloud services like Dropbox or to a private cloud server using RESTful APIs.

• Compact Design: Dimensions: 80 x 148 x 25 mm; suitable for DIN rail or wall mounting.

• Operating Temperature: -25°C to 70°C; storage temperature: -40°C to 85°C.

• Humidity Range: 20% to 95% relative humidity (non-condensing).


Benefits

• Seamless Integration: Easily integrates into existing Ethernet networks, reducing the need for additional infrastructure.

• Remote Monitoring and Control: Enables remote monitoring and control of industrial equipment, enhancing operational efficiency.

• Scalability: Supports multiple modules in a network, allowing for scalable IIoT solutions.

• Cost-Effective: Reduces wiring and installation costs by leveraging existing network infrastructure.

• Data Security: Supports secure communication protocols, ensuring data integrity and confidentiality.


Why Choose the WISE-4050/LAN?

• Trusted Brand: Advantech is a leading provider of industrial automation solutions, known for high-quality and reliable products.

• Versatile Applications: Ideal for applications in industrial automation, building automation, energy management, and remote monitoring.

• User-Friendly Configuration: The HTML5 web interface simplifies setup and configuration, reducing deployment time.

• Robust Performance: Designed to operate in harsh industrial environments, ensuring reliable performance over time.


Conclusion

The Advantech WISE-4050/LAN is a versatile and reliable IoT Ethernet I/O module that enables seamless integration into existing networks for remote monitoring and control of industrial equipment. Its support for multiple communication protocols, data logging capabilities, and secure cloud integration make it an excellent choice for IIoT applications.

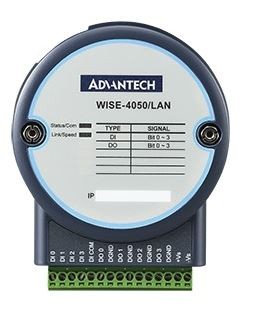

Advantech WISE-4050/LAN 4CH DI + 4CH DO IOT Lan

IEEE 802.3u 10/100Base-T(X) Industrial grade operating temperature -40~70°C Supported Protocols: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP Supports RESTful web API in JSON format Supports local logging with RTC time stamp Supports mobile device web configuration in HTML5 Supports 10~30VDC power with reverse protection

Specifications
