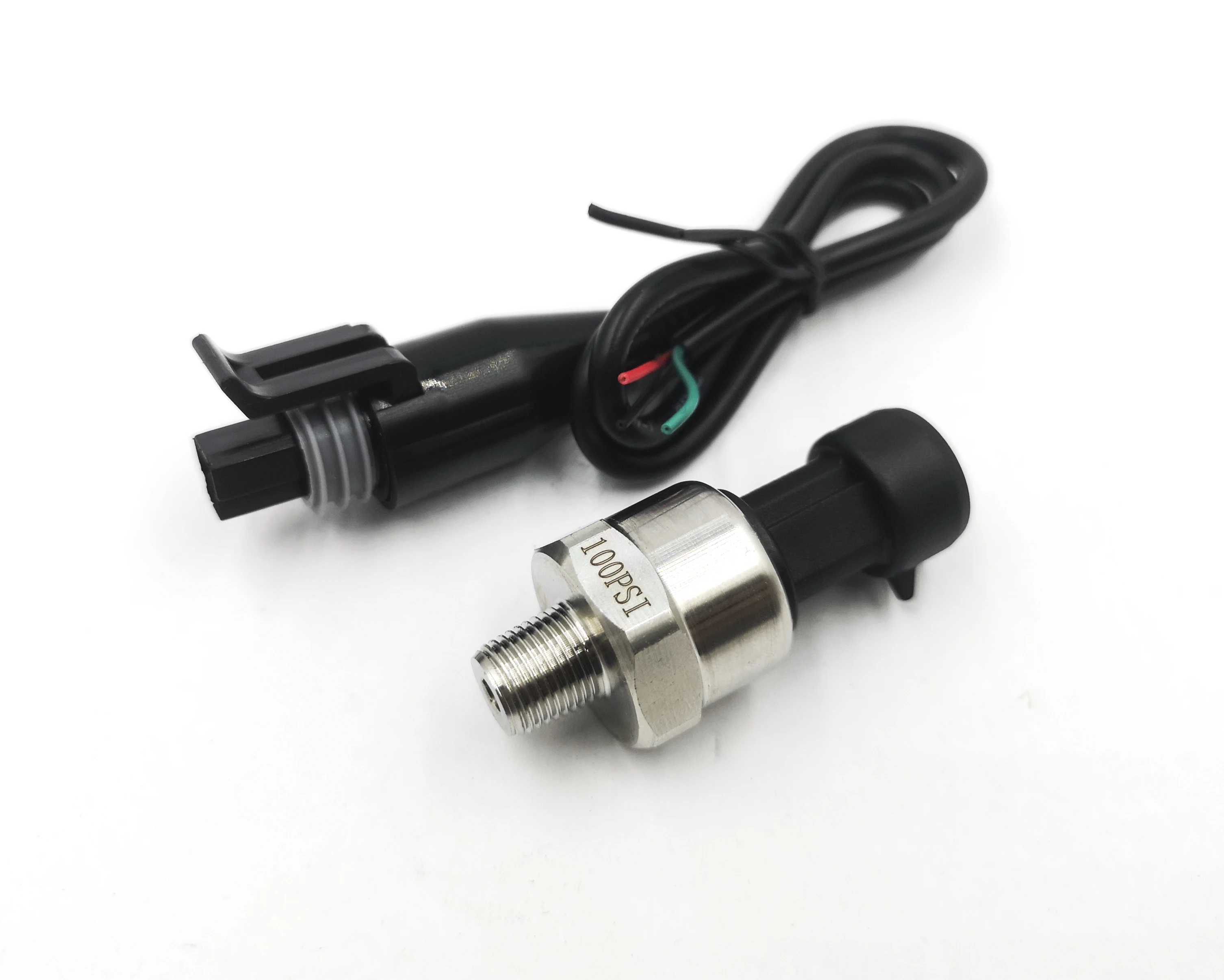

Color: Pink - pressure sensor transducer transmitter for water oil fuel gas air 1/8NPT DC 5V ceramic sensor stainless steel 5-300psi optional
$15.77 AUD
Approx $11.01 USD
available on orders over $30.00
Description:
Origin: Mainland ChinaType: Oil Pressure sensor
Sensitivity: ≤±1.0%FS
Measuring Range: 0-300psi
OEM NO.: 0-300psi
Style: Varistor Type
Signal Type: Voltage Signal
Supply voltage: 5VDC or 12VDC or 3.3VDC
Sensor core: ceramic sensor
Pressure connection: 1/8NPT or other
Protection class: IP65
Electromagnetism Compatibility: EN50051-1
Max Measuring Range: 59 Bar & Under
Measuring range: -14.5-30psi / 5-300psi gauge pressuure
Output signal: 0.5-4.5V or 0-5V or 1-5V or 0.4-2.4V(Low power consumption)
Operating temperature: -40-105℃
Housing material: 304 Stainless Steel
Electrical connection: Packard connection
Explosion-proof class: Exia2CT6
Choice: yes
semi_Choice: yes
Features:
Its an advance pressure transducer than traditional mechanical pressure transducer.
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
Light weight and small size, convenient to install and operate.
It has complete surge voltage protection function.
Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
Specifications:
Material: Stainless steel
Voltage: DC 5V
Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)
Thread Type: 1/8" NPT
Parameters
Measuring range: -14.5-30psi / 5-300psi gauge
pressure
Accuracy: ±1.0%FS
Output signal: 0.5-4.5V, 0-5V, 1-5V
Supply voltage: 5VDC, 12VDC, 3.3VDC
Operating temperature: -40～105℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas
Pressure connection: 1/8”NPT, Other pressure connection is on request
Electrical connection: Packard connection
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.080kg
