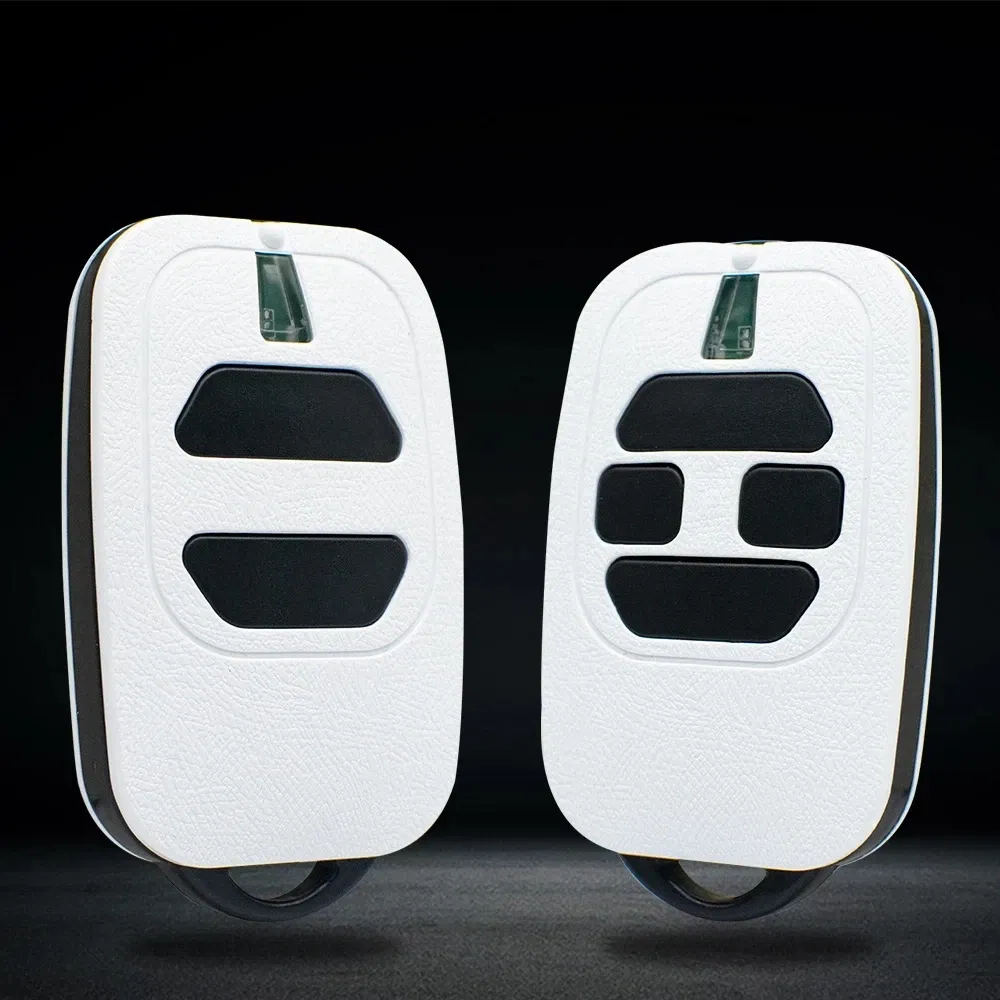

Color: WHITE - DEA GT2 GT4 MIO TR2 TR4 TR2N 433MHz Rolling Code Garage Door Remote Control DEA GT2M GT4M Fixed Code Gate Keyfob Transmitter

DEA GTI2 GTI4 GT2 GT4 MIO TR2 TR4 TD2 TD4 GOLD 288 289 TR2N TR4N Garage Door Remote Control 433.92MHz Rolling Code Fixed Code

Description:

1. Type of programming: Programming with the receiver
2. Number of channels: 4 / 2
3. Code: rolling code
4. Frequency: 433,92 MHz
Battery and instruction included

Programming

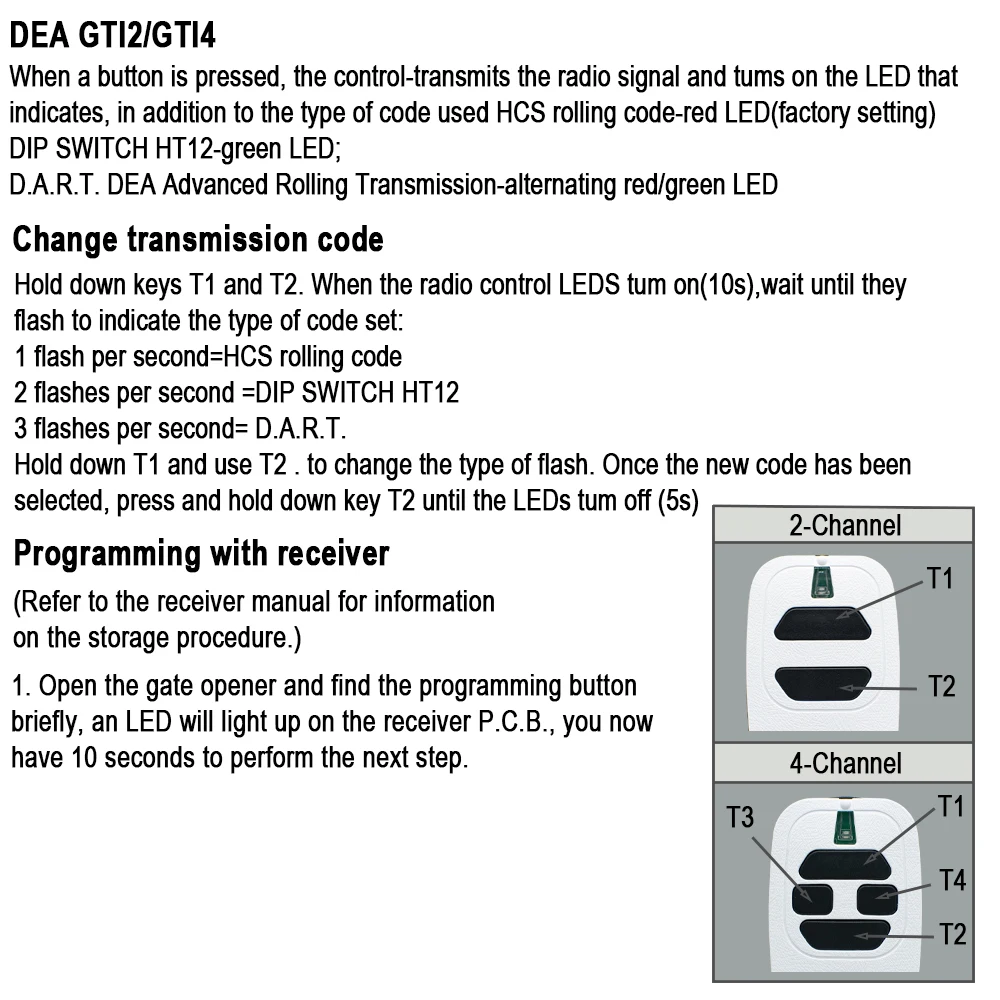

DEA GTI2/GTI4
When a button is pressed, the control-transmits the radio signal and tums on the LED thatindicates, in addition to the type of code used HCS rolling code-red LED(factory setting)
DIP sWITCH HT12-green LED;
D.A.R.T.DEA Advanced Rolling Transmission-alternating red/green LED .

Change transmission code
Hold down keys T1 and T2.When the radio control LEDS tum on(10s),wait until they flash to indicate the type of code set:
1 flash per second=HCS rolling code
2 flashes per second =DIP SWITCH HT12
3 flashes per second= D.A.R.T.
Hold down T1 and use T2 . to change the type of flash.Once the new code has beenselected, press and hold down key T2 until the LEDs tum off (5s) .

Programming with receiver
(Refer to the receiver manual for informationon the storage procedure.)
1.Open the gate opener and find the programming buttonbriefly, an LED will light up on the receiver P.C.B.,you nowhave 10 seconds to perform the next step.

Include

Remote control
Battery
English instruction manual
