Color: WHITE - Garage Remote Control DEA GTI2 GTI4 GT2 GT4 MIO TR2 TR4 GOLD 288 289 TR2N TR4N Gate Door Opener Command 433.92mhz Rolling Code

For DEA Fixed Code /Rolling Code 433.92mhz

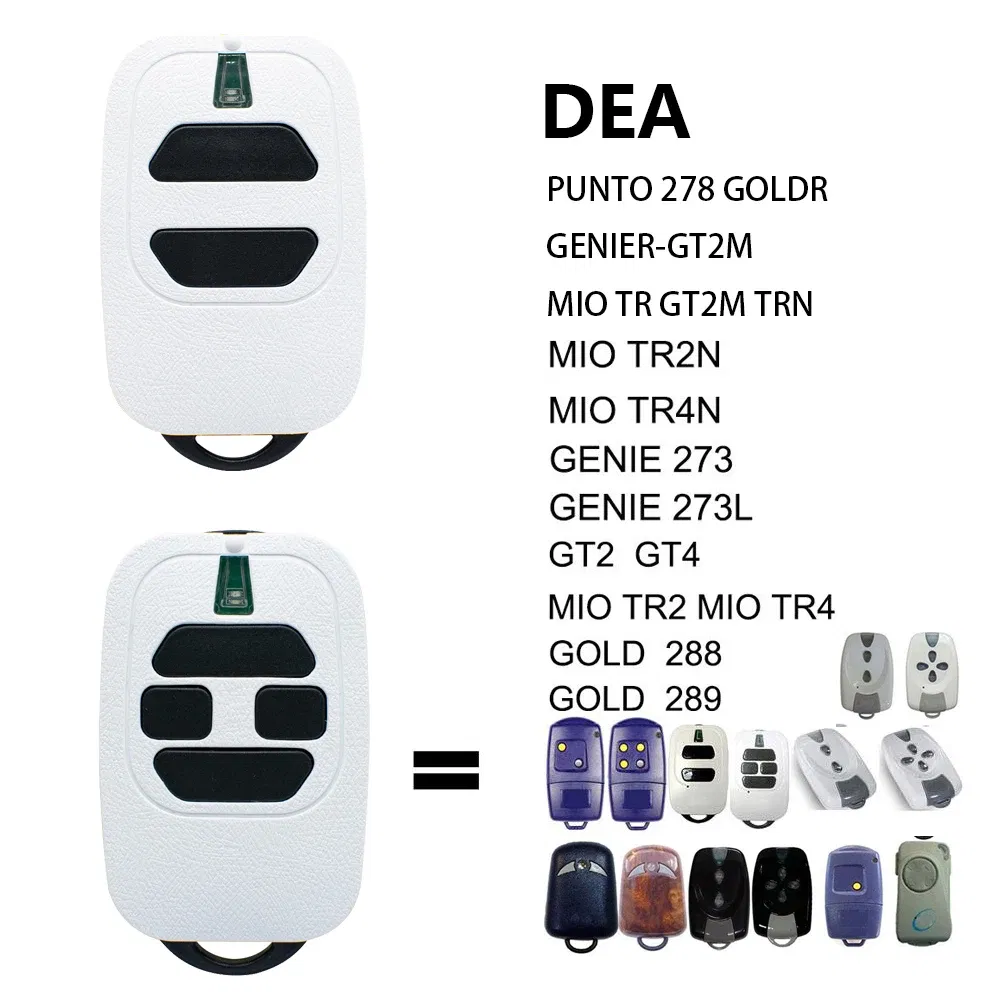

Compatible with:

DEA Rolling Code
DEA GTI2
DEA GTI4
DEA GT2
DEA GT4
DEA MIO TR2
DEA MIO TR4
DEA GOLD 288
DEA GOLD 289
DEA MIO TR2N
DEA MIO TR4N
DEA GENIE 273
DEA GENIE 273L

DEA Fixed Code
DEA 433-1
DEA 433-2
DEA 433-4
DEA MIO TD2
DEA MIO TD4
DEA punto-2
DEA punto-4

Description:

1.Number of channels: 2 / 4
2. Code:rolling code
3. Frequency: 433.92MHz
4.Woring Range: 10-50 m (open space)
5.Power supply: CR2032
6.Remote come with Battery !!!

DEA GTI2/GTI4 Programming:

When a button is pressed, the control-transmits the radio signal and tums on the LED that
indicates, in addition to the type of code used HCS rolling code-red LED(factory setting)
DIP SWITCH HT12-green LED;

D.A.R.T.DEA Advanced Rolling Transmission-alternating red/green LED

Change transmission code
Hold down keys T1 and T2. When the radio control LEDS tum on(10s),wait until they
flash to indicate the type of code set:.
1 flash per second=HCS rolling code
2 flashes per second =DIP SWITCH HT12
3 flashes per second= D.A.R.T.
Hold down Ti and use T2 . to change the type of flash. Once the new code has been
selected, press and hold down key T2 until the LEDs tum off (5s)

Programming with receiver
(Refer to the receiver manual for information
on the storage procedure.)
1. Open the gate opener and find the programming button
briefly, an LED will light up on the receiver P.C.B., you now
have 10 seconds to perform the next step

Include

Remote Control(with Battery)
Keychain
English Manual
