Description:

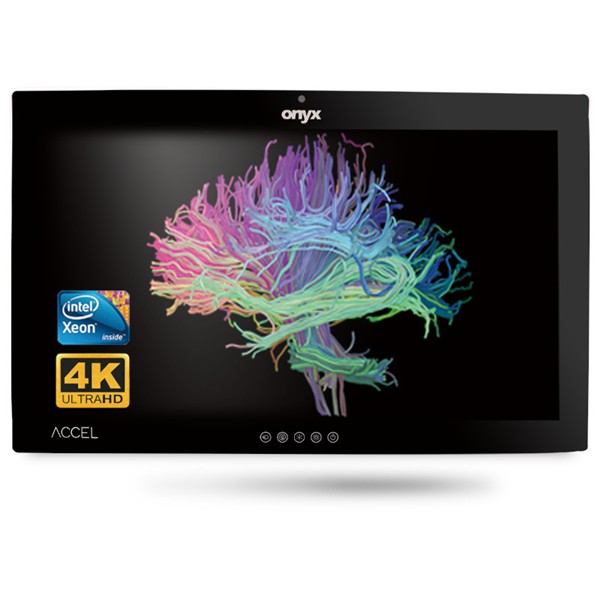

Onyx ACCEL-A3201 i7 32" 4K OR Station PCAP Touch

32" OR Station.i7-6820EQ.32 UHD 350-nit.System Fan.AC 100~240V.PCT

Specifications

Onyx ACCEL-A3201 i7 32" 4K OR Station PCAP Touch

Product Overview

The Onyx ACCEL-A3201 is a high-performance, medical-grade all-in-one (AIO) workstation designed for demanding operating room (OR) environments. Featuring a 32-inch 4K Ultra HD (UHD) capacitive touch display, this system combines powerful computing capabilities with a user-friendly interface, making it ideal for surgical navigation, real-time imaging, and AI-assisted diagnostics. Onyx Healthcare

Key Features

• Processor: Intel® Xeon E3-1505M v5 or Intel® Core™ i7-6820EQ 2.8GHz Quad-Core

• Chipset: Intel® QM170

• System Memory: Supports ECC / Non-ECC DDR4 SODIMM up to 32GB

• Storage:

  • 2.5" SATA SSD x2

  • M.2 2280 M Key SSD x1 (NVMe or SATA SSD)

• Display:

  • 32" UHD 3840x2160 350-nit High Contrast LCD

  • Capacitive Multi-Touch Screen

• Video Input: HDMI x1

• Video Output: DisplayPort 1.4 x1

• USB Ports: USB 3.0 x4

• Serial Ports: RS-232 x2 (optional)

• Ethernet: Isolated Gigabit LAN x2

• Audio: Mic (optional), Line Out (optional)

• Expansion Slots:

  • PCIe[x16] x1

  • PCIe[x4] x1

  • PCIe[x1] x1

• Power Consumption: Full loading: 90W

• Operating Temperature: 0°C ~ 35°C

• Storage Temperature: -20°C ~ 60°C

• Mounting: VESA 100mm

• Degree of Protection: IP65 in the front, IPX1 in the back

• Dimensions: 676 x 429 x 102 mm

• Weight: Net: 13.5 kg, Gross: 16 kg

• Certifications:

  • CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013(A12:2014)

  • FCC: Part 18 Class B

  • UL: ANSI/AAMI ES60601-1:2012 (V3.1)

  • cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)


Benefits

• High-Resolution Display: The 32" UHD display offers exceptional clarity, allowing for detailed imaging and precise surgical navigation.

• Touchscreen Interface: The capacitive multi-touch screen enables intuitive interaction, facilitating quick access to critical information during procedures.

• Powerful Performance: Equipped with Intel® Xeon or Core™ i7 processors and support for up to 32GB of memory, the system ensures smooth operation of demanding medical applications.

• Medical-Grade Certification: Compliant with international medical standards ensures safety and reliability in healthcare settings.

• Flexible Expansion: Multiple PCIe slots allow for customization and integration of additional components, such as GPU accelerators, to meet specific clinical needs.


Why Choose the Onyx ACCEL-A3201?

The Onyx ACCEL-A3201 is designed to meet the rigorous demands of modern operating rooms. Its combination of high-resolution display, powerful processing capabilities, and medical-grade certifications makes it an ideal choice for healthcare professionals seeking a reliable and efficient workstation. Whether used for surgical navigation, real-time imaging, or AI-assisted diagnostics, the ACCEL-A3201 enhances clinical workflows and supports optimal patient outcomes.

Conclusion

In summary, the Onyx ACCEL-A3201 i7 32" 4K OR Station PCAP Touch offers a robust and reliable computing solution for healthcare providers. Its high-resolution display, powerful performance, and compliance with medical standards make it a valuable asset in any operating room setting. By integrating this system into your clinical environment, you can enhance surgical precision, improve workflow efficiency, and ultimately contribute to better patient care.
