Description:

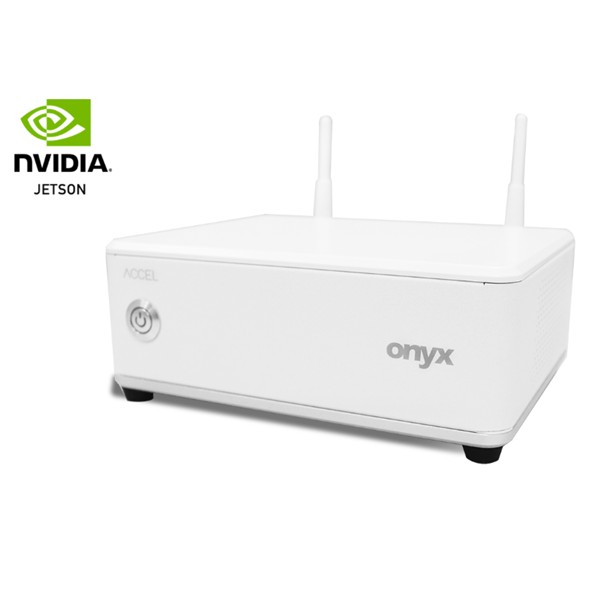

Onyx ACCEL-JS500 JETSON AGX Xavier Medical Ai Edge 32GB

Medical AI Edge.Jetson AGX Xaiver.Fan.32GBDDR4.32G eMMC.Jetpack OS.Speaker.Adapter

Specifications

Onyx ACCEL-JS500 Jetson AGX Xavier Medical AI Edge 32GB

Product Overview

The Onyx ACCEL-JS500 is a compact, high-performance AI edge computing platform tailored for medical imaging applications. Powered by the NVIDIA Jetson AGX Xavier, it delivers exceptional computational capabilities in a medically certified form factor, making it ideal for deployment in clinical environments requiring real-time AI processing.

Key Features

• AI Engine: NVIDIA Jetson AGX Xavier

• CPU: 8-Core ARM v8.2 64-bit CPU

• System Memory: 32GB 256-bit LPDDR4 with ECC

• Graphics: 512-Core Volta GPU with Tensor Cores

• Storage: 64GB eMMC Onboard, Micro SD card Slot, M.2 M Key 2280

• Operating System: Linux with Jetpack OS

• Security: TPM 2.0

• USB Ports: USB Type-C x2 (USB 3.1), USB Type-A x1 (USB 3.0), USB Type-A x1 (USB 2.0)

• Ethernet: Gigabit LAN x1

• Video Outputs: HDMI 2.0 x1, DisplayPort 1.4 x1

• Audio: Mic-in x1, Line-out x1

• COM Ports: RS232 x1

• Power Input: 12V DC Jack

• Power Supply: Medical adapter 12V 84W

• Operating Temperature: 0°C ~ 35°C

• Storage Temperature: -20°C ~ 60°C

• Dimensions: 184(W) x 145(L) x 66(H) mm

• Certifications: EN 60601-1-2:2015+A1:2021, EN 60601-1:2007+A1:2013+A2:2021, EN 55032:2015/A1:2020, EN 55035:2017/A11:2020, IEC 62368-1:2020+A11:2020


Benefits

• High Computational Performance: The Jetson AGX Xavier's 512-core Volta GPU with Tensor Cores accelerates AI inference tasks, enabling real-time processing of medical imaging data.

• Compact and Rugged Design: Its palm-sized form factor and robust construction make it suitable for integration into space-constrained and mobile medical setups.

• Medical Certification: Compliant with international medical standards ensures safe deployment in healthcare environments.

• Flexible Connectivity: Multiple USB ports, Gigabit Ethernet, and video outputs facilitate integration with various medical devices and displays.

• Long-Term Support: The AGX Xavier Industrial platform offers extended support, ensuring longevity and reliability in critical applications.


Why Choose the Onyx ACCEL-JS500?

The Onyx ACCEL-JS500 stands out for its combination of powerful AI processing capabilities and medical-grade certifications. Its compact size and robust design make it ideal for deployment in diverse medical environments, from operating rooms to mobile medical units. The extended support for the AGX Xavier Industrial platform ensures that healthcare providers can rely on this solution for long-term operations.

Conclusion

In summary, the Onyx ACCEL-JS500 Jetson AGX Xavier Medical AI Edge 32GB offers a high-performance, medically certified solution for real-time AI processing in medical imaging applications. Its compact design, robust features, and compliance with international standards make it a valuable asset for healthcare providers seeking advanced AI capabilities in their operations.
