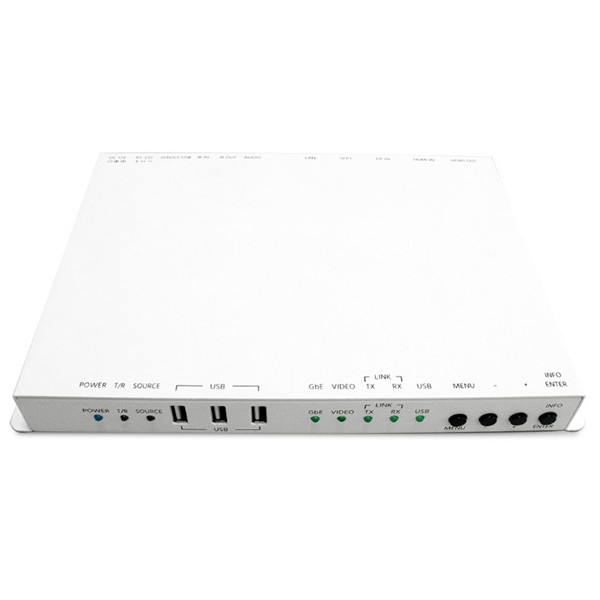

Onyx ACCEL-VM100 Medical PC
$4,799.99 AUD
Approx $3,287.99 USD
Description:
Onyx ACCEL-VM100 Medical PC
4K UHKTransmitter/Receiver.HDMI/DP/USB.36W EUMedical Adapter.(10Gbit/s and SFP+)
Specifications
| Input Port | 1x HDMI 1x DisplayPort |
| Output Port | 1x HDMI |
| Bi-directional Port | 1x 10GbE LAN (SFP+) |
| Pass-Through Port | 1x Unbalanced Stereo (3.5mm) 1x IR Extender (3.5mm) 1x IR Blaster (3.5mm) 1x RS-232 (3-pin Terminal Block) 1x Ethernet (RJ-45) 3x USB (Type-A) |
| Service Port | 1x USB (Mini-B) |
| HDMI Compliance | HDMI 2.0 (DVI 1.0) |
| HDCP Compliance | 2.2 |
| Input Signal Types | HDMI 2.0 / 4K@60, HDR10 / DisplayPort 1.4 HBR2 |
| Maximum Input | HDMI - 4096×2160p@60, 2560×1600p@60RB DisplayPort - 4096×2160p@60, 2560×1600p@60RB Streaming - 4096×2160p@60, 2560×1600p@60RB |
| Maximum Output | HDMI - 4096×2160p@60, 2560×1600p@60RB Streaming - 4096×2160p@60, 2560×1600p@60RB |
| Digital Formats | HDMI - 8CH LPCM, Bitstream, HD Bitstream DisplayPort- 8CH LPCM, Bitstream, HD Bitstream |
| Analog Formats | Unbalanced 2 Channel |
| Line Level | Frequency Response: < ±0.5dB (20Hz to 20kHz) THD: < 0.02% (20Hz to 20kHz) S/N Ratio: > 80dB (1kHz with 0dBFS) Crosstalk: < −80dB (10kHz, Vin=0dBFS) |
| Power Supply | 12V/3A (Locking) |
| Power Consumption | HDMI 2.0/ 4K@60, HDR10/ DisplayPort 1.4 HBR2 |
| Chassis | Metal (Steel) |
| Chassis Colour | White |
| Dimensions | 231.5 x 25 x 158mm |
| Weight | 916g |
Onyx ACCEL-VM100 Medical PC: Precision Computing for Modern Healthcare
Introduction
The Onyx ACCEL-VM100 is a compact, fanless medical-grade PC designed to meet the stringent demands of modern healthcare environments. With its robust performance, low latency, and versatile connectivity, it serves as a reliable solution for digital operating rooms, medical imaging, and AI-assisted diagnostics.
Key Features
-
Compact Form Factor: Dimensions of 231.5 × 25 × 158 mm and a weight of 916g make it ideal for space-constrained
environments. onyx-healthcare.com
-
HDMI 2.0 and DisplayPort 1.4 Support: Ensures high-resolution video output up to 4K at 60Hz, suitable for detailed medical
imaging.
-
10GbE LAN (SFP+) Port: Facilitates high-speed data transmission, essential for real-time image sharing and telemedicine
applications.
-
Bi-directional HDMI and Audio Ports: Supports 8-channel LPCM, Bitstream, and HD Bitstream audio formats, ensuring
comprehensive multimedia compatibility.
-
Medical-Grade Certification: Complies with CE: EN 60601-1-2:2015(V4.0) and EN 60601-1:2006/A1:2013/A12:2014 (V3.1)
standards, ensuring safety and reliability in medical settings.
Benefits
-
Enhanced Diagnostic Accuracy: High-resolution video output ensures that medical images are rendered with exceptional
detail, aiding in accurate diagnostics.
-
Improved Workflow Efficiency: The compact design and versatile connectivity options allow for seamless integration into
existing medical infrastructures, streamlining workflows.
-
Durability in Medical Environments: The fanless design and medical-grade certification ensure that the device can withstand
the demanding conditions of healthcare settings, providing long-term reliability.
-
Versatile Connectivity: Multiple input and output options facilitate easy integration with various medical devices and
systems, enhancing its versatility.
-
Compliance with Medical Standards: Meets international medical standards, assuring healthcare providers of its safety and
performance.
Why Choose the Onyx ACCEL-VM100?
Choosing the Onyx ACCEL-VM100 means investing in a device that combines cutting-edge technology with medical-grade reliability. Its features are tailored to meet the specific needs of healthcare professionals, ensuring that they have the tools necessary for precise diagnostics and efficient patient care.
Conclusion
The Onyx ACCEL-VM100 Medical PC stands out as a top-tier choice for medical professionals seeking a reliable, high-performance computing solution. Its combination of advanced features, robust build, and compliance with medical standards makes it an essential asset in any healthcare setting.
