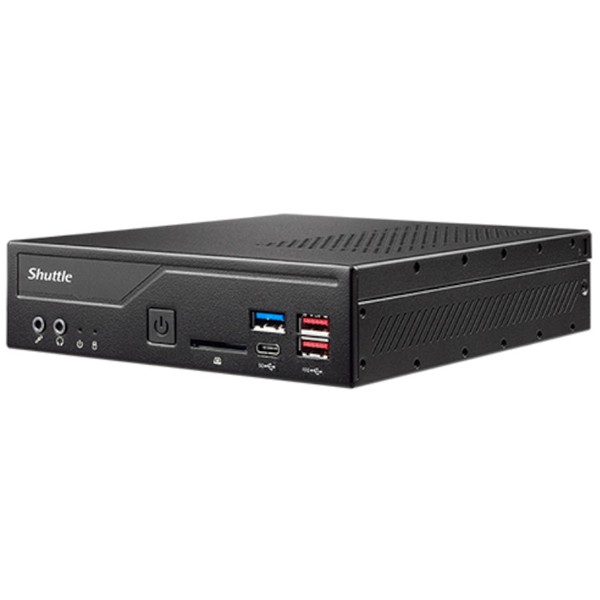

Shuttle DH670 LGA1700 DDR4 M.2 Slim Barebones PC 2GbE
$989.99 AUD
Approx $692.99 USD
Description:
Shuttle DH670 LGA1700 DDR4 M.2 Slim Barebones PC 2GbE
Intel H670 chipset/Support 12 & 13th Gen CPUs. TDP 65W/DDR4/2x HDMI, 2x DisplayPort, Quad Video Output/ Dual Intel Gigabit LAN/USB3.0/ 1x RS232/422/485, 1x RS232
Specifications
| Form Factor | 1.3L chassis |
| Processor | Support Alder lake-s LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor |
| Chipset | Intel H670 Express chipset |
| Memory | 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz |
| Video Output | HDMI 2.0 x 2+ DisplayPort x 2, Quad video outputs 4K playback (Dual channel memory recommended) Integrated in CPU |
| Audio | Realtek ALC662/897/888S High Definition Audio |
| Ethernet | Intel I210/I211*2 Dual Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function Support Teaming function |
| Storage Interface | SATA 6.0Gb/s interface |
| Onboard Connectors | 1x 4pin fan connector 1x VGA(For PVG01 use) 1x 1x4 pin USB header(For WWN03 use) 1x SATA connector w/power 1x Front audio header 1x Auto power on header 1x RS232 voltage switch |
| Front Panel | 2x USB 3.2 Gen1 ports (Include Type C x1) 2x USB 3.2 Gen2 ports 1x Headphone-In 1x Line-Out 1x Power-On button 1x Power LED 1x HDD LED 1x SD card reader |
| Back Panel | 2x RJ45 Gigabit LAN port w/LED 2x HDMI port 2x Display port 2x USB 3.2 Gen1 ports 2x USB 3.2 Gen2 ports 1x RS232 1x RS232/RS422/RS485 1x External 4pin header 1x DC-in 2x Wireless Antenna fixture 1x Kensington lock |
| Drive Bays | 1x 2.5" HDD / SSD bay |
| Dimensions | 190(L) x 165(W) x 43(H) mm |
| Power | 120W Power Adapter Input:100- 240V AC 19V 6.32A |
| Accessories | XPC Multilanguage Quick User Guide XPC DVD Driver VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 120W adapter |
| Expansion Slot | 1x M.2 2280 Type M key socket 1x M.2 2230 Type E key socket |
| OS Support | Windows 10/11 64 bit O.S Linux |
Shuttle DH670 LGA1700 DDR4 M.2 Slim Barebones PC with 2GbE
The Shuttle DH670 is a compact, high-performance barebones PC designed to meet the demands of modern computing environments. Housed in a sleek 1.3-liter chassis, this mini PC supports Intel's 12th, 13th, and 14th generation LGA1700 processors, offering robust performance for a variety of applications, including digital signage, kiosks, office workstations, and industrial use.
Key Features
-
Processor Support: Compatible with Intel® 12th, 13th, and 14th generation Core™ processors (i3, i5, i7, i9), Pentium®, and
Celeron® with a maximum TDP of 65W.
-
Chipset: Intel® H670 Express chipset, providing a stable and efficient platform for the supported processors.
-
Memory: Supports up to 64GB of DDR4-3200 SO-DIMM memory across two slots, enabling smooth multitasking and handling of
memory-intensive applications.
-
Storage:
- One 2.5" SATA III drive bay for additional storage.
- One M.2 2280 M-Key slot for NVMe or SATA SSDs, offering high-speed storage options.
- One M.2 2230 E-Key slot for optional WLAN cards, providing wireless connectivity.
- One 2.5" SATA III drive bay for additional storage.
-
Graphics: Integrated Intel® UHD Graphics, capable of supporting up to four independent displays via two HDMI 2.0b and two
DisplayPort 1.4a outputs, suitable for 4K video playback and multi-monitor setups.
-
Networking:
- Dual Intel® 2.5GbE Ethernet ports, offering flexible networking options and support for advanced networking configurations.
- Dual Intel® 2.5GbE Ethernet ports, offering flexible networking options and support for advanced networking configurations.
-
USB Ports:
- Four USB 3.2 Gen 2 (10 Gbps) ports.
- One USB 3.2 Gen 1 (5 Gbps) Type-C port.
- Three USB 3.2 Gen 1 (5 Gbps) Type-A ports.
- Two USB 2.0 ports, providing ample connectivity for various peripherals.
- Four USB 3.2 Gen 2 (10 Gbps) ports.
-
Serial Ports:
- One RS232 port.
- One RS232/RS422/RS485 port, supporting 5V/12V, catering to industrial and embedded applications.
- One RS232 port.
- Audio: High-definition audio output, suitable for multimedia applications.
-
Cooling: Equipped with a heatpipe-based cooling system and dual fans, ensuring efficient heat dissipation and reliable
operation in environments with ambient temperatures up to 50°C.
-
Mounting: VESA mount included, allowing for flexible installation options behind monitors or on walls, saving valuable desk
space.
-
Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating
system choice.
Applications
The Shuttle DH670 is ideal for a wide range of professional applications:
- Digital Signage: Delivering high-quality video playback for advertising and information displays.
- Kiosks: Providing interactive interfaces for self-service stations in public spaces.
- Thin Clients: Serving as a reliable endpoint for cloud-based computing solutions.
- Office PCs: Offering a compact and efficient solution for everyday computing tasks.
- Industrial PCs: Catering to industrial automation and control applications.
Why Choose the Shuttle DH670?
The Shuttle DH670 offers a powerful combination of performance, compact design, and versatile connectivity options. Its support for the latest Intel processors, high-speed networking, and multiple display outputs make it an excellent choice for modern computing needs. Whether you're setting up a digital signage system, deploying a thin client solution, or building a compact office workstation, the DH670 provides the performance and flexibility required to meet your objectives.
Conclusion
In conclusion, the Shuttle DH670 LGA1700 DDR4 M.2 Slim Barebones PC with 2GbE is a high-performance, compact computing solution suitable for a variety of professional applications. Its robust features, including support for the latest Intel processors, dual 2.5GbE Ethernet ports, and multiple display outputs, ensure it can handle demanding tasks with ease. The inclusion of a VESA mount and efficient cooling system further enhances its suitability for diverse environments.
