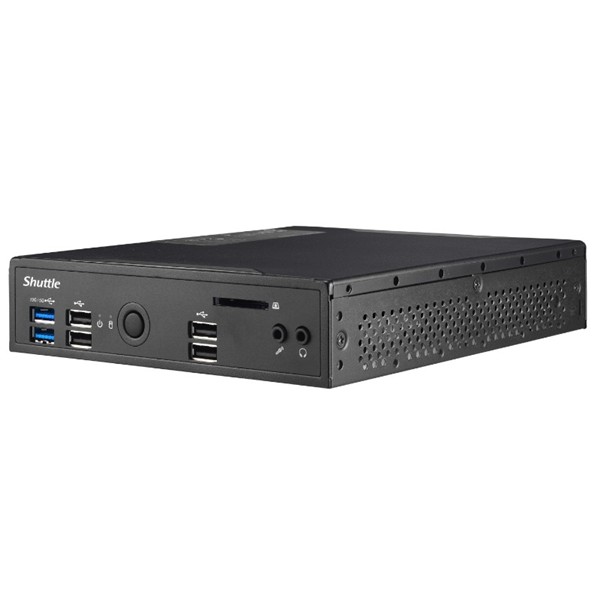

Shuttle DS20U Celeron 5205U 1.3L Fanless Barebones PC

Description:

Shuttle DS20U Celeron 5205U 1.3L Fanless Barebones PC

Intel Celeron 5205U, UHD Graphics, Fanless Passive Cooling,2x SODIMM DDR4, 1x 2.5" SATA, 1x M.2 2280 SATA & PCIE, HDMI, DP, VGA, 2x USB3.1, SD reader, 2x GbE RJ45 LAN, Audio, 1x RS232/422/485. Supports Windows 10 & 11

Specifications

Shuttle DS20U Celeron 5205U 1.3L Fanless Barebones PC

The Shuttle DS20U Celeron 5205U 1.3L Fanless Barebones PC is a compact, fanless computing solution designed for environments where space is limited but performance is essential. Powered by the Intel® Celeron® 5205U processor, this mini PC offers reliable performance in a sleek, energy-efficient design. It is ideal for use in digital signage, kiosks, office environments, and other applications requiring low power consumption and minimal noise.

Key Features of Shuttle DS20U Celeron 5205U 1.3L Fanless Barebones PC

• Intel Celeron 5205U Processor: Powered by a dual-core Intel® Celeron® 5205U processor from the 10th generation "Comet Lake-U" series, offering efficient performance for everyday tasks with a base clock speed of 1.9 GHz.

• Fanless Design: The fanless passive cooling system ensures silent operation, making it ideal for noise-sensitive environments such as retail stores, offices, or healthcare facilities.

• Graphics: Integrated Intel® UHD Graphics, capable of handling 4K video playback and supporting up to three independent displays via HDMI 2.0b, DisplayPort 1.2, and VGA outputs, ideal for digital signage and multimedia applications.

• Memory: Supports up to 64GB of DDR4-2400/2666MHz memory, offering ample capacity for multitasking and running memory-intensive applications.

• Storage: Offers flexible storage options with one 2.5” SATA drive bay and one M.2 2280 slot for SSDs, providing a balance of speed and capacity for your storage needs.

• Connectivity:

  • Dual Gigabit Ethernet ports (Intel i219 and i210) for reliable wired network connections.

  • Four USB 3.2 Gen 1 ports and four USB 2.0 ports for connecting a wide range of peripherals.

  • One RS232/422/485 serial port for industrial and embedded applications.

  • High-definition audio for multimedia applications.

• Expansion: Includes an M.2-2230E slot for optional WLAN cards, providing wireless connectivity for flexible networking.

• VESA Mountable: The compact size (1.3L) and VESA mounting support allow for easy installation behind monitors or on walls, saving valuable desk space.

• Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), providing flexibility in operating system choice for various applications.


Applications

The Shuttle DS20U Celeron 5205U 1.3L Fanless Barebones PC is suitable for a wide range of professional applications:

• Digital Signage: Perfect for interactive displays in retail, hospitality, and public environments.

• Kiosks: Ideal for self-service stations in public spaces, providing a reliable and efficient user experience.

• Thin Clients: A space-efficient solution for cloud-based computing, providing access to remote systems and applications.

• Office PCs: An energy-efficient solution for day-to-day office work with a compact form factor.

• Multimedia Applications: Delivering high-quality video and multimedia content for small-scale installations.


Why Choose the Shuttle DS20U?

The Shuttle DS20U Celeron 5205U 1.3L Fanless Barebones PC is an excellent choice for those seeking a small, reliable, and efficient computing solution. Whether for use in digital signage, kiosks, thin client systems, or office PCs, the DS20U offers performance, flexibility, and silent operation in a compact design.

Conclusion

In conclusion, the Shuttle DS20U Celeron 5205U 1.3L Fanless Barebones PC combines reliable performance, a fanless design, and versatile connectivity in a small form factor. Perfect for a variety of professional environments, this mini PC provides an ideal solution for applications that require low power consumption, quiet operation, and efficient performance.
