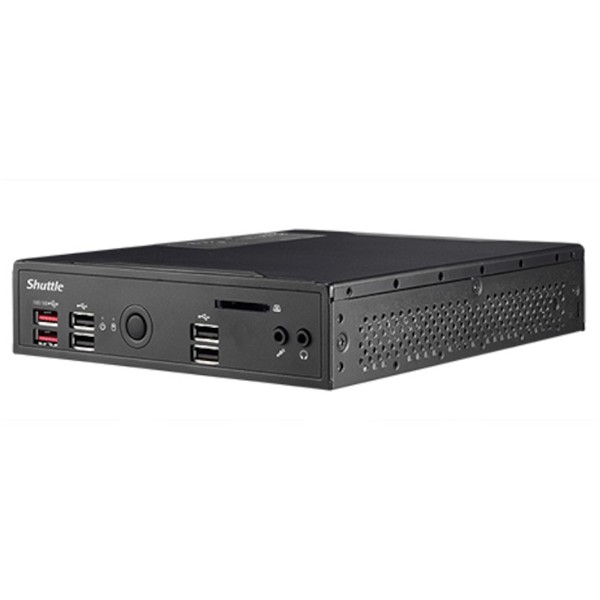

Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC
$1,499.99 AUD
Approx $1,049.99 USD
Description:
Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC
Intel i3-10110U, UHD Graphics, Fanless Passive Cooling, 2x SODIMM DDR4, 1x 2.5" SATA, 1x M.2 2280 SATA & PCIE, fanless, HDMI 2.0, DisplayPort, VGA, COM, 2 x LAN
Specifications
| Form Factor | Shuttle 1.3L Chassis |
| Processor | Intel Comet Lake-U i3-10110U |
| Memory | 2x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4 2400/2666Mhz |
| Video Output | 1x HDMI 2.0a + 1x DisplayPort 1.2 + 1x VGA video outputs Support triple independent display |
| Audio | Realtek ALC662/ALC897 2 channel High Definition Audio |
| Ethernet | Intel i211 and i219 1Gb/s Ethernet connectors Support Wake-On-LAN function Support Teaming function |
| Storage Interface | SATA for HDD/SSD SD card reader |
| Onboard Connectors | 1x 2.5 inch SATA connector 1x USB2.0 header 1x Auto Power on Jumper 1x RS232 voltage switch 1x External 4 pin header |
| Front Panel | 1x Power on button 1x Power LED 1x HDD LED 2x USB 3.2 Gen2 (Celeron 5205U is Gen1) 4x USB 2.0 ports 1x SD Card reader 1x Mic in 1x Headphone out |
| Back Panel | 2x RJ45 Gigabit LAN 1x HDMI 1x DisplayPort 1x VGA 1x RS232/RS422/RS485 2x USB 3.2 Gen2 (Celeron 5205U is Gen1) 1x External 4 pin header (Clear CMOS/Power Switch/5V) 1x DC-in 1x Kensington lock 2x Antenna fixture |
| Drive Bays | 1x 2.5" HDD / SSD bay |
| Dimensions | 200(L) x 165(W) x 39.5(H) mm |
| Power | Input:100- 240V AC Output: 19V/3.42A or 12V/5.42A DC 65W 19V Adapter bundled |
| Accessories | XPC Multilanguage Quick User Guide XPC DVD Driver Food stand VESA mount VESA Screw pack Power cord Thermal Grease HDD Screw pack 65W adapter |
| Expansion Slot | 1x M.2 2280 Type M key socket 1x M.2 2230 Type E Key socket |
| OS Support | Windows 10 Windows 11 Linux |
| Graphics | Integrated Intel UHD Graphics |
| Certification | Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI |
Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC
The Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC is a compact, fanless computing solution designed for professional applications requiring silent operation, energy efficiency, and robust connectivity. Housed in a durable 1.3-liter metal chassis, this mini PC is ideal for environments such as digital signage, kiosks, thin clients, and office PCs.
Key Features
-
Processor: Equipped with the Intel® Core™ i3-10110U processor (2 cores, 4 threads, base clock 2.1 GHz, turbo boost up to
4.1 GHz), providing efficient performance for everyday tasks.
-
Graphics: Integrated Intel® UHD Graphics, supporting up to three independent displays via HDMI 2.0a, DisplayPort 1.2, and
VGA outputs, capable of handling 4K video playback.
-
Memory: Supports up to 64GB of DDR4-2400/2666MHz memory across two SO-DIMM slots, allowing for smooth multitasking and
memory-intensive applications.
-
Storage: Offers flexible storage options with one 2.5" SATA bay and one M.2-2280 slot for SSDs, accommodating both
high-speed and high-capacity storage needs.
-
Connectivity:
- Ethernet: Dual Gigabit Ethernet ports (Intel i211 and i219-LM) for reliable wired network connections.
- USB Ports: Four USB 3.2 Gen 2 ports and four USB 2.0 ports for connecting various peripherals.
- Audio: High-definition audio output for multimedia applications.
- Serial Port: One RS232/RS422/RS485 serial port for industrial and embedded applications.
- Ethernet: Dual Gigabit Ethernet ports (Intel i211 and i219-LM) for reliable wired network connections.
-
Expansion: Includes an M.2-2230E slot for optional WLAN cards, enabling wireless connectivity for flexible networking.
-
Cooling: Features a fanless passive cooling system, ensuring silent operation and reliability in noise-sensitive
environments.
-
Mounting: Supports VESA mounting, allowing for versatile installation options behind monitors or on walls, saving valuable
desk space.
-
Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating
system choice.
Applications
The Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC is suitable for a wide range of professional applications:
- Digital Signage: Delivering high-quality video playback for advertising and information displays.
- Kiosks: Providing interactive interfaces for self-service stations in public spaces.
- Thin Clients: Serving as a reliable endpoint for cloud-based computing solutions.
- Office PCs: Offering a compact and efficient solution for everyday computing tasks.
- Multimedia Applications: Supporting multimedia playback and presentations.
Why Choose the Shuttle DS20U3?
The Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC is an excellent choice for professionals seeking a small, reliable, and efficient computing solution. Whether for use in digital signage, kiosks, thin client systems, or office PCs, the DS20U3 offers performance, flexibility, and silent operation in a compact design.
Conclusion
In conclusion, the Shuttle DS20U3 Core i3-10110U 1.3L Fanless Barebones PC combines reliable performance, a fanless design, and versatile connectivity in a small form factor. Perfect for a variety of professional environments, this mini PC provides an ideal solution for applications that require low power consumption, quiet operation, and efficient performance.
