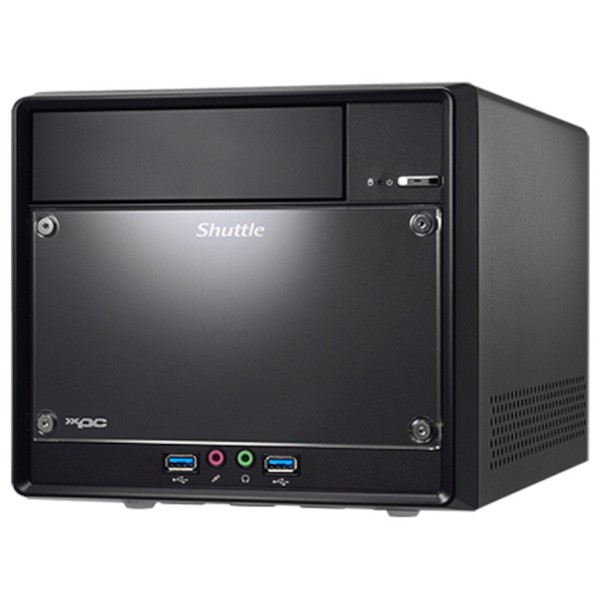

Shuttle SH510R4 LGA1200 Dual Ethernet Barebones Workstation
$878.99 AUD
Approx $615.29 USD
Description:
Shuttle SH510R4 LGA1200 Dual Ethernet Barebones Workstation
Intel H510 chipset, LGA1200 Socket, 2x DDR4 DIMM (64GB Max), 1x DP, 1x HDMI, 1x VGA, 1x Ethernet, 6x USB, 1x PCIeX16 Expansion (4.0), 1x PCIeX4 Expansion (3.0), 1x M.2 2280 M-Key, 1x M.2 2230 E-key.
Specifications
| Form Factor | Shuttle Form Factor |
| Processor | Support Intel® 10th/11th generation Core™ i3/i5/i7, Pentium®, Celeron®125W LGA1200 CPU |
| Chipset | Intel H510 express chipset |
| Memory | 2x DDR4 3200 (11th CPU only)MHz / 2933MHz / 2666MHz support, dual channel up to 64GB (32GB*2) |
| Video Output | 1x HDMI + 1x DisplayPort + 1x VGA , support dual independent display 4K/60Hz playback (With Integrated Graphic in CPU) |
| Audio | Realtek ALC662/ALC897/ALC888s 5.1 Channel high definition audio |
| Ethernet | Intel i219 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| Storage Interface | SATA 6.0Gb/s interface |
| Onboard Connectors | 2x 4 Pin fan connector 3x SATA gen3.0 connector 1x ATX main power (2*10) 1x ATX 12V power (2*2) 1x 1X4 USB 2.0 header 1x RS232 header 1x Front AUDIO header 2x Front USB FFC header |
| Back Panel | 4x USB 2.0 Port 2x USB 3.2 Gen 1 Port 1xLAN 1x HDMI port 1x Display port 1x VGA port 1x Audio Mic in 1x Audio Line in 1x Audio SPK out 1x Clear CMOS button 3x Antenna Hole |
| Drive Bays | 1x 5.25" ODD bay 2x 3.5" HDD bay |
| Dimensions | 329(L) x 216(W) x 198(H) mm |
| Power | 80 Plus 300W power supply Input: 100-240V，6-3A AC Support 80 PLUS Bronze |
| Accessories | XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package |
| Expansion Slot | 1x PCI-E X16 Gen4.0 slot (with Intel 11th CPU) 1x PCI-E X1 Gen3 slot 1x M.2 2280 type M key socket 1x M.2 2230 type E key socket |
| OS Support | Windows 10 64bit Linux |
| Certification | Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI |
Shuttle SH510R4 LGA1200 Dual Ethernet Barebones Workstation
The Shuttle SH510R4 LGA1200 Dual Ethernet Barebones Workstation is a compact and versatile computing solution designed for professionals seeking high performance in a small form factor. Powered by the Intel® H510 chipset, this mini PC supports 10th and 11th generation Intel® Core™ processors with a maximum TDP of 125W, offering robust performance for demanding applications.
Key Features
-
Processor Support: Compatible with Intel® 10th and 11th generation Core™ processors (i9, i7, i5, i3), Pentium®, and
Celeron® with a maximum TDP of 125W.
-
Memory: Supports up to 64GB of DDR4-3200MHz memory across two DIMM slots, providing ample capacity for multitasking and
memory-intensive applications.
-
Graphics: Integrated Intel® UHD Graphics, capable of supporting dual 4K displays via HDMI 2.0b and DisplayPort 1.4 outputs.
-
Expansion Slots: Features a PCIe x16 v4.0 slot for dual-slot graphics cards (up to 273mm in length) and a PCIe x1 v3.0 slot
for additional expansion cards.
-
Storage: Offers multiple storage options, including two 3.5" SATA bays, one 5.25" optical drive bay, and two M.2 slots
(M.2-2280 for SSDs and M.2-2230 for optional WLAN modules).
-
Connectivity: Equipped with dual Gigabit Ethernet ports (Intel i219LM and i210AT), four USB 3.2 Gen 1 ports, four USB 2.0
ports, one HDMI port, one DisplayPort, one VGA port, and audio in/out jacks, providing versatile connectivity options for various
peripherals and networks.
-
Cooling: Utilizes Shuttle's exclusive I.C.E. 2 heat pipe technology for efficient cooling, ensuring stable long-term
operation.
-
Power Supply: Includes a 300W 80 PLUS Bronze certified internal power supply, providing reliable power for the system.
-
Operating System Support: Compatible with Windows 10/11 (64-bit) and Linux (64-bit), offering flexibility in operating
system choice.
Benefits
-
Compact Design: With a volume of just 13.5 liters, the SH510R4 offers a small footprint without compromising on
performance.
-
High Performance: The combination of a powerful processor, ample memory, and integrated graphics ensures smooth operation
for demanding applications.
-
Versatile Connectivity: Multiple USB ports, dual Gigabit Ethernet, and support for dual 4K displays provide extensive
connectivity options for various peripherals and networks.
-
Flexible Storage Options: Multiple storage bays and M.2 slots allow for customization based on storage needs.
-
Efficient Cooling: The I.C.E. 2 heat pipe technology ensures efficient cooling, maintaining optimal performance even under
load.
Why Choose the Shuttle SH510R4?
The Shuttle SH510R4 LGA1200 Dual Ethernet Barebones Workstation is an excellent choice for professionals seeking a compact, high-performance computing solution. Its powerful processor support, ample memory capacity, and versatile connectivity options make it ideal for applications such as digital signage, video conferencing, and office environments where space is limited but performance is essential.
Conclusion
In conclusion, the Shuttle SH510R4 LGA1200 Dual Ethernet Barebones Workstation offers a compelling combination of performance, compact design, and versatility. Whether you're looking to enhance your digital signage setup, deploy a silent office workstation, or create a powerful home theater PC, the SH510R4 provides the performance and flexibility needed to meet your requirements.
