Description:

Synology E10G22-T1-Mini RJ45 10GbE PCI-E Expansion Card

10GbE RJ-45 network upgrade module for compact Synology servers

Specifications

Synology E10G22-T1-Mini RJ45 10GbE PCI-E Expansion Card – Compact, High-Speed Networking for Synology NAS

As New Zealand businesses and professionals increasingly rely on high-speed data transfers for tasks like video editing, large-scale backups, and virtualisation, the need for robust networking solutions becomes paramount. The Synology E10G22-T1-Mini RJ45 10GbE PCI-E Expansion Card offers a streamlined and efficient way to upgrade your Synology NAS with 10GbE connectivity, enhancing performance and scalability.

H1: Description

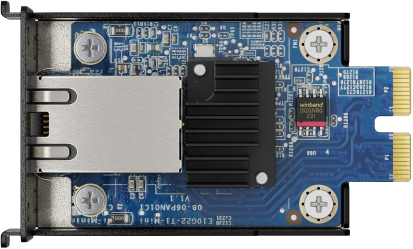

The Synology E10G22-T1-Mini is a compact 10GbE network upgrade module designed to provide high-speed networking capabilities to select Synology NAS models. This single-port PCIe 3.0 x2 expansion card features an RJ-45 Ethernet port, ensuring compatibility with existing network infrastructures. Its compact form factor makes it ideal for Synology systems with limited internal space, such as the DS923+, DS723+, RS422+, and DS1522+ models.

Key features include:

• High-Speed Connectivity: Supports data transfer rates of 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps, facilitating rapid data access and transfers.

• Auto-Negotiation: Automatically adjusts to the highest available network speed, ensuring optimal performance across various network environments.

• Jumbo Frame Support: Capable of handling 9 KB jumbo frames, reducing CPU load and improving network efficiency.

• Offloading Capabilities: Supports TCP/UDP/IP checksum offloading, TCP Segmentation Offload (TSO), Large Send Offload (LSO), Receive Side Scaling (RSS), Generic Receive Offload (GRO), and Generic Segmentation Offload (GSO), enhancing data processing efficiency.

• Easy Installation: Designed for simple installation through the dedicated network upgrade slot in compatible Synology NAS models.


H2: Key Points

• Compact Design: Dimensions of 26.37 mm x 45.38 mm x 75.7 mm, fitting into Synology systems with limited internal space.

• Host Bus Interface: PCIe 3.0 x2, providing sufficient bandwidth for 10GbE connectivity.

• Network Compatibility: Supports IEEE 802.3an (10GbE), IEEE 802.3bz (2.5/5GbE), IEEE 802.3ab (1GbE), and IEEE 802.3u (100BASE-TX) standards.

• Environmental Tolerance: Operating temperature range of 0°C to 40°C and storage temperature range of -20°C to 60°C, suitable for various operating conditions.

• Warranty: Backed by a 3-year warranty, ensuring reliability and peace of mind.


H2: Benefits

1. Enhanced Network Performance

Upgrading to 10GbE connectivity allows for faster data transfers, reducing bottlenecks and improving overall system performance. This is particularly beneficial for tasks such as high-resolution video editing, large-scale backups, and virtualisation.

2. Future-Proofing Your Infrastructure

As data demands continue to grow, having a 10GbE network infrastructure ensures that your system can handle increased workloads without compromising performance.

3. Cost-Effective Solution

The E10G22-T1-Mini provides a cost-effective way to upgrade your existing Synology NAS to 10GbE connectivity, avoiding the need for a complete system overhaul.

4. Easy Installation

Designed for straightforward installation, the E10G22-T1-Mini can be easily integrated into compatible Synology NAS models, minimizing downtime and disruption.

H2: Why Choose the Synology E10G22-T1-Mini RJ45 10GbE PCI-E Expansion Card?

When considering a network upgrade for your Synology NAS, the E10G22-T1-Mini offers a compact and efficient solution. Its high-speed connectivity, broad network compatibility, and offloading capabilities make it an excellent choice for enhancing your system's performance. Additionally, its easy installation process ensures a seamless upgrade experience.

For New Zealand businesses and professionals seeking to improve their network infrastructure, the Synology E10G22-T1-Mini provides a reliable and cost-effective solution to meet growing data demands.
