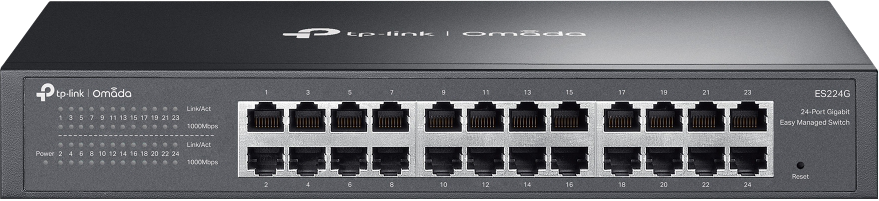

TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada

$228.99 AUD
Approx $160.29 USD

Description:

TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada

"Omada 24-Port Gigabit Easy Managed Switch PORT: 24× Gigabit RJ45 Ports SPEC: 1U 13-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control"

Specifications

Interface 24× 10/100/1000 Mbps RJ45 Ports Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation Desktop, Rackmountable
Physical Security Lock Yes
Power Supply 100 - 240 V ~ 50/60Hz
Dimensions (W x D x H) 294 x 140 x 44mm
Surge Protection ±6kV
Switching Capacity 48 Gbps
Packet Forwarding Rate 35.7 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
Quality of Sercice Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode - WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control - Port-Based Rating Limit Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features Static Link Aggregation Loop Prevention / Loopback Detection Flow Control - 802.3x Flow Control Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both Port Statistics - Port Mirror Status - Traffic Statistics 802.1ab LLDP
L2 Multicast IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN MTU VLAN Port-Based VLAN 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method Store-And-Forward
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Unified Configuration
Certification FCC, CE, RoHS
Operating Temperature -5℃~50℃
Operating Humidity 10%~90% non-condensing

TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada

Description

The TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada is a powerful and scalable network switch designed for small to medium-sized businesses and enterprise environments that require high-performance, easy management, and reliable connectivity. With 24 gigabit Ethernet ports, this rack-mountable switch delivers high-speed data transfer for a wide range of applications, from file sharing and cloud applications to streaming and video conferencing.

As part of the Omada SDN (Software Defined Networking) platform, the ES224G offers centralized cloud management, providing businesses in New Zealand with the flexibility and control to monitor and configure the network from anywhere. Its rack-mountable design ensures a professional, space-efficient setup, ideal for server rooms and network closets. The easy smart features like VLAN support, QoS, and network monitoring ensure that your network operates efficiently and securely.

Key Points

  • 24 Gigabit Ethernet Ports: The ES224G features 24 gigabit ports, ensuring high-speed connectivity for all your network devices, including computers, servers, printers, and more. Perfect for businesses with high data throughput needs.
  • Omada SDN Integration: Integrated with TP-Link’s Omada SDN platform, the ES224G provides centralized management for your network. This feature allows businesses to monitor, configure, and manage their network remotely via the Omada Cloud or the Omada app.
  • Rack-Mountable Design: The ES224G is designed for easy installation in standard 19-inch server racks, making it perfect for professional environments where space optimization and organization are key.
  • Easy Smart Features: The switch comes with simple-to-use management tools such as VLAN, Quality of Service (QoS), and network monitoring. These features allow businesses to optimize traffic flow, prioritize critical applications, and improve network performance.
  • Energy-Efficient: The ES224G is designed with energy-saving technology, reducing power consumption without compromising on performance, making it both cost-effective and environmentally friendly.

Benefits

  • Centralized Network Management: With Omada SDN integration, businesses can manage their network from a single location, whether on-premise or via the cloud. This centralized management streamlines network setup, monitoring, and maintenance.
  • High-Speed Performance: The 24 gigabit ports deliver fast and reliable network connectivity, ensuring smooth data transfers and uninterrupted access to cloud applications, servers, and other business-critical services.
  • Scalable and Flexible: The ES224G is perfect for growing businesses in New Zealand, offering 24 ports that allow for easy expansion as your network needs increase. Whether adding new workstations or upgrading network devices, this switch scales with your business.
  • Professional Setup: The rack-mountable design makes the ES224G ideal for professional environments such as server rooms, network closets, and enterprise offices. It helps maintain a neat and organized network setup.
  • Quiet and Efficient: The fanless design ensures the ES224G operates quietly, making it suitable for environments where noise reduction is essential, such as offices or data centers. Its energy-efficient operation also lowers long-term operating costs.

Why Choose This Product?

The TP-Link ES224G 24 Port Gigabit Switch Easy Smart Rack Mount Omada is the ideal solution for New Zealand businesses looking for a scalable, high-performance network switch with centralized management and easy-to-use smart features. Its integration with the Omada SDN platform provides businesses with greater control and flexibility over their network, while the 24 gigabit ports ensure that all devices are connected at high speeds for seamless performance.

For companies looking to optimize their network setup, improve efficiency, and manage devices remotely, the ES224G offers a powerful, cost-effective solution that can grow with your business.
