Description:

True on-line double conversion 6000VA/6000W UPS system, optional extended battery runtime (UP4336). Rack or tower configuration. Includes rack mount kit. SNMP Card IS-UNITY-SNMP/ UP7262, Relay Card IS-RELAY/ UP727, Replacement batteries UP7905 x16

Specifications

Power Rating	6000 VA/6000 W
Dorm Factor	Rack/Tower (4 U)
Dimensions	430 (W) x 750 (D) x 173 (H)
Weight	70kg
Voltage Range Without Battery Operation (230 V default, derating applies)	100 - 288
Voltage Range Without Battery Operation (230 V default, 100% load)	178 - 288
Frequency Range (Hz, autosensing)	40 - 70
Input Wiring	Hardwired (Terminals L-N-G)
Surge Protection (J)	600
Output Voltage	220/230 (Default)/240
Waveform	Pure Sine Wave
Output Overload (AC Mode)	105% - 125% @ 5 min 125% - 150% @ 1 min > 150% @ 200 ms
Output Wiring	Hardwired (Terminals L-N-G)
Efficiency (Online mode, max.)	94%
Efficiency (ECO Mode, max.)	98%
Battery Type	Valve-regulated, non-spillable, lead-acid
Recharge Time (Internal batteries, typical)	3 hr @ 90%
Backup Time (100% load, minutes)	5
Backup Time (50% load, minutes)	14
Compatible External Battery Cabinet	GXE3-EBC192VRT2U
Operating Temperature (ºC)	0 to 40 ºC
Relative Humidity (Operation, non-condensing)	5% to 95%
Operating Altitude (m), without derating	2000
Audible Noise (Line mode)	<55 dBA
Compliance	CE, CB Report, EAC, UKCA, Morocco, RCM
Safety	IEC/EN 62040-1
Transportation	ISTA 3E
Environmental	RoHS, REACH, WEEE
Slot for optional cards	Yes
Communication port	USB
Emergency Power Off (EPO)	Yes

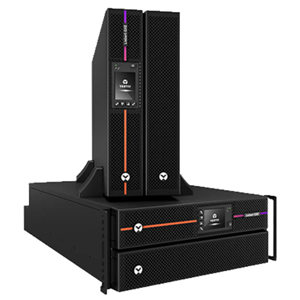

Vertiv UPS GXE3-6000IRT On Line UPS Rack/Tower 6000VA/6000W

Introduction

The Vertiv GXE3-6000IRT On Line UPS Rack/Tower 6000VA/6000W is a high-performance uninterruptible power supply designed to provide reliable and uninterrupted power to critical systems in large businesses, data centers, and industrial environments. With a 6000VA/6000W capacity, this UPS offers true online protection, ensuring your sensitive equipment stays protected from power interruptions, voltage fluctuations, and other electrical disturbances.

Key Features

• True Online Technology: The double-conversion technology ensures constant, clean power by converting incoming AC to DC and then back to AC, offering zero transfer time to protect your devices from power issues such as surges, sags, and blackouts.

• 6000VA/6000W Power Capacity: Capable of supporting large systems such as servers, data storage devices, networking equipment, and telecommunications systems, making it ideal for medium to large-sized businesses.

• Rack or Tower Convertible Design: The GXE3-6000IRT offers flexibility in installation with both rackmount and tower configurations to fit your business's space and setup requirements.

• Automatic Voltage Regulation (AVR): This feature corrects under-voltages and over-voltages without using battery power, saving battery life for more critical situations.

• LCD Display: The integrated LCD provides real-time monitoring of UPS status, battery health, input/output voltage, load levels, and runtime, allowing you to make informed decisions about your power needs.

• Surge Protection: Built-in surge protection shields your sensitive equipment from voltage spikes, preventing electrical damage to your devices.

• Extended Battery Runtime: Provides ample backup time during power outages, allowing you to safely shut down systems or continue operations until the power is restored.

• Multiple Outlets: Equipped with multiple outlets for connecting a wide range of devices, ensuring that all your critical systems are protected.

• USB Connectivity: Allows for easy remote monitoring and control of the UPS through your IT infrastructure.


Benefits

• Continuous Power Protection: The True Online technology guarantees uninterrupted power for your critical systems, preventing data loss and downtime during power disturbances.

• Scalable and Flexible: With its rack/tower convertible design, this UPS can be easily integrated into various setups, from server rooms to data centers, providing scalability as your power needs grow.

• Increased Equipment Lifespan: The AVR feature helps prevent wear on your devices by maintaining a stable voltage level, which can increase the lifespan of sensitive electronics.

• Easy Monitoring: The LCD display and USB connectivity make it easy to monitor the UPS’s status, troubleshoot issues, and ensure your devices are always protected.

• Efficient and Cost-Effective: This UPS is designed for high energy efficiency, helping to reduce power consumption and lower operational costs while delivering reliable power protection.


Why Choose the Vertiv GXE3-6000IRT UPS?

The Vertiv GXE3-6000IRT On Line UPS Rack/Tower 6000VA/6000W is ideal for businesses, data centers, and industries that need robust and reliable power protection for mission-critical systems. With its high power capacity, True Online technology, and surge protection, this UPS ensures your equipment stays protected from electrical disturbances, preventing costly downtime and protecting your valuable data.

Conclusion

The Vertiv GXE3-6000IRT is a high-performance On Line UPS that offers reliable protection for your business's critical systems. Whether you need rackmount or tower installation, this UPS delivers uninterrupted power, surge protection, and energy-efficient operation, making it an excellent choice for large environments. With real-time monitoring, extended battery runtime, and flexible installation options, the GXE3-6000IRT ensures your systems are always protected and ready to perform.
