Description:

True on-line double conversion 1000VA/1000W UPS system, optional extended battery runtime (UP4530). Communications Card UP4580. Rack or tower configuration. Includes rack mount kit. Rail Kit Bundled. Replacement batteries 3x UP7905

Specifications

Rating	750VA/750W
Input	Rated Voltage	230VAC
Rated Frequency	50/60Hz
Frequency Range	40 to 70 Hz
Power Factor	≥0.99
Output	Nominal Voltage	200/208/220/230/240 VAC
Waveform	Sine wave
Inverter Overload Capability	>200% minimum 250 mS, 150 to 200% for 2 seconds; 125 to 150% for 50 seconds; 105 to 125% for 60 seconds
Efficiency in Online Mode	Up to 93%
Inverter Bypass	Up to 98%
Output Receptacles	8x EN60320/C13
Internal Battery	Rated Voltage	36Vdc
Charger Current	Nominal 2.2 A; Maximum 8A
Type	Valve-regulated, non-spillable, lead acid
Quantity x V x Rating	3 x 12V x 9.0Ah
End Cell Voltage	1.67 V/cell (discharge voltage per cell will be from 1.67 Vdc to 1.90 Vdc, can be selected by PARAMSET)
Floating Voltage	Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell
Battery Voltage Range	30 Vdc to 42.3 Vdc
Internal Battery Backup Time (Approximate)	10% Load Capacity: 92.5 mins 20% Load Capacity: 47 mins 30% Load Capacity: 29 mins 40% Load Capacity: 20 mins 50% Load Capacity: 15 mins 60% Load Capacity: 11.5 mins 70% Load Capacity: 9.5 mins 80% Load Capacity: 8 mins 90% Load Capacity: 7 mins 100% Load Capacity: 6 mins
General	Operating Temperature, °C	Full power up to 40 ºC (up to 50 ºC with derating)
Storage Temperature, °C	- 15 to + 40
Relative Humidity	0 to 95% non-condensing
Operating Elevation	Up to 3,000 m at 25°C without derating
Audible Noise	<46 dBA, at 1 meter from sides, <43 dBA, at 1 meter from rear
Safety	IEC62040-1:2008 version, GS mark; CE: UL1778 5th Edition and CSA 22.2 No 107.1
EMI/EMC/C-Tick EMC	EN 62040-2:2006; EN 61000-3-3:2013; EN 61000-3-3:2013
Transportation	ISTA Procedure 1 A
Surge Immunity	ANSI C62.41 Category B IEC 61000-4-5 Surges/Lighting
Dimensions (mm)	400 (w) x 430 (d) x 85 (h)
Weight	16.5kg

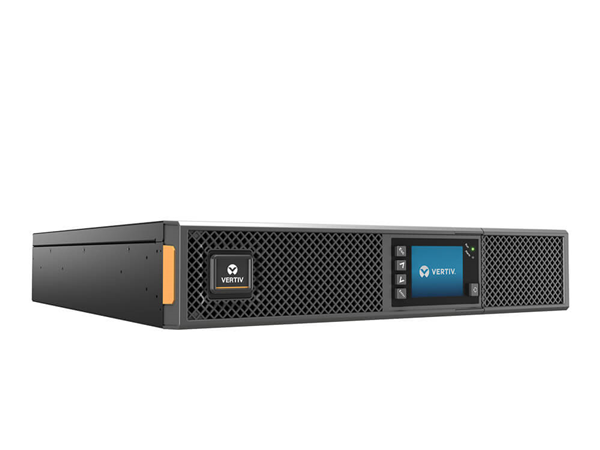

Vertiv UPS GXT5-1000IRT On Line UPS Rack/Tower 1000VA/1000W

Introduction

The Vertiv UPS GXT5-1000IRT On Line UPS Rack/Tower 1000VA/1000W is a reliable and efficient uninterruptible power supply (UPS) designed to provide high-quality, continuous power to critical equipment in small to medium-sized businesses. With True Online technology and 1000VA/1000W power capacity, this UPS ensures that your equipment, including servers, workstations, and networking devices, is protected from power disturbances, such as surges, sags, and outages. The rack/tower convertible design offers flexibility, making it suitable for a variety of installations.

Key Features

• True Online Technology: The True Online UPS uses double-conversion technology to provide consistent, clean power to your critical devices by converting incoming AC to DC and then back to AC, ensuring zero transfer time and complete protection from power anomalies.

• 1000VA/1000W Power Capacity: Provides reliable power for sensitive equipment, including servers, networking devices, and workstations, with a 1000VA/1000W capacity suitable for small to medium-sized businesses.

• Rack or Tower Convertible Design: The GXT5-1000IRT can be configured as a rackmount or tower UPS, providing flexibility for various business environments and space requirements.

• Automatic Voltage Regulation (AVR): The AVR feature corrects minor fluctuations in voltage without using battery power, preserving the battery for more critical situations and extending its overall lifespan.

• LCD Display: The built-in LCD display provides real-time updates on system status, battery health, input/output voltage, load levels, and runtime, making it easy to monitor and manage your UPS.

• Surge Protection: Equipped with advanced surge protection, the GXT5-1000IRT safeguards your equipment from power spikes and surges, preventing potential damage.

• Extended Battery Runtime: Offers extended battery backup during power outages, allowing you to shut down equipment safely or continue operations until the power is restored.

• Multiple Outlets: The UPS includes multiple outlets, providing power protection for a range of devices, ensuring your critical systems stay operational.

• USB Connectivity: Offers easy monitoring and control via USB connectivity, allowing integration with network management systems for better remote monitoring.


Benefits

• Reliable Power Protection: The True Online technology ensures your equipment always receives clean, uninterrupted power, preventing data loss and downtime caused by power fluctuations.

• Versatile Installation: The rackmount/tower convertible design makes it ideal for various setups, providing the flexibility to install the UPS in small server rooms, workstations, or network racks.

• Long Battery Life: The AVR technology helps extend battery life by correcting minor voltage fluctuations without drawing from the battery, ensuring longer-lasting protection.

• Easy Monitoring and Management: The LCD display and USB connectivity allow for easy monitoring, status checks, and remote management of the UPS, making it simple to track power conditions and battery health.

• Cost-Effective Protection: The GXT5-1000IRT UPS is an affordable solution for businesses needing high-quality power protection, ensuring minimal downtime and long-term savings on repairs and replacements.


Why Choose the Vertiv UPS GXT5-1000IRT?

The Vertiv UPS GXT5-1000IRT is the ideal power protection solution for small to medium-sized businesses that rely on sensitive equipment. Offering True Online technology, automatic voltage regulation, and surge protection, this UPS provides reliable, continuous power to prevent interruptions and safeguard critical systems. Whether for a small server room, workstations, or network devices, the GXT5-1000IRT delivers flexible, high-quality protection.

Conclusion

The Vertiv UPS GXT5-1000IRT On Line UPS Rack/Tower 1000VA/1000W is a powerful and reliable UPS designed to meet the demands of small to medium-sized businesses. With its True Online technology, flexible installation options, and surge protection, this UPS ensures that your systems remain operational even during power disturbances. Its extended battery runtime, easy monitoring, and cost-effective protection make it a must-have solution for businesses looking to maintain the integrity of their critical equipment.
